20. Dimension
18
http://www.emico.co.kr

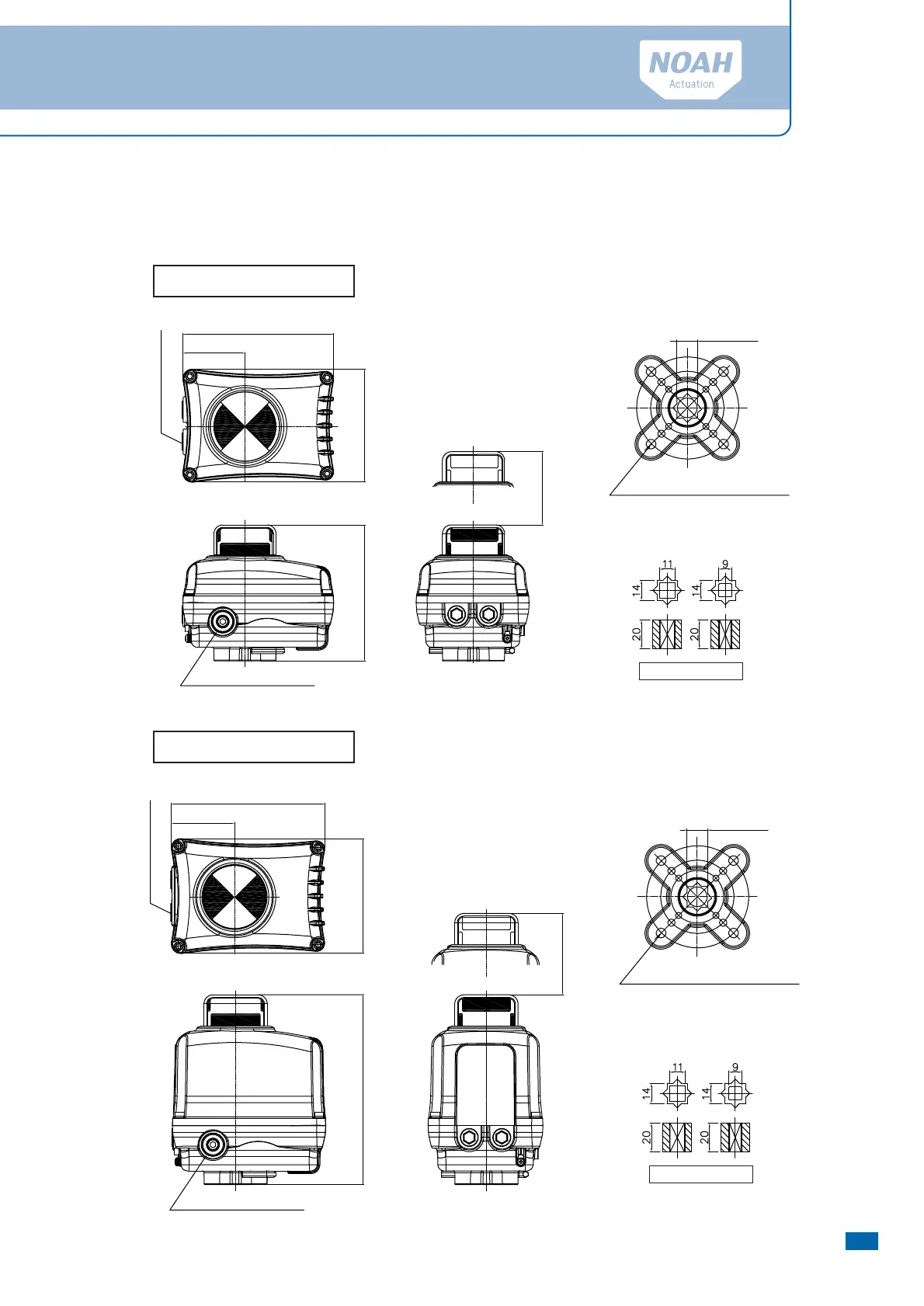

SA005, SA009
SA005L, SA009L
Drive Insert (Option)
A: ISO5211 F03 (Φ36 M5TAP DP9)
B: ISO5211 F05 (Φ50 M6TAP DP11)
C: ISO5211 F07 (Φ70 M8TAP DP13)
MANUAL OPERATION
MANUAL OPERATION
170
14 DP25
Base P.C.D
70
127
80
153
170
70
127
140
210
CABLE ENTRIES 2-1/2” PF
CABLE ENTRIES 2-1/2” PF
Drive Insert (Option)
A: ISO5211 F03 (Φ36 M5TAP DP9)
B: ISO5211 F05 (Φ50 M6TAP DP11)
C: ISO5211 F07 (Φ70 M8TAP DP13)
14 DP25
Base P.C.D
