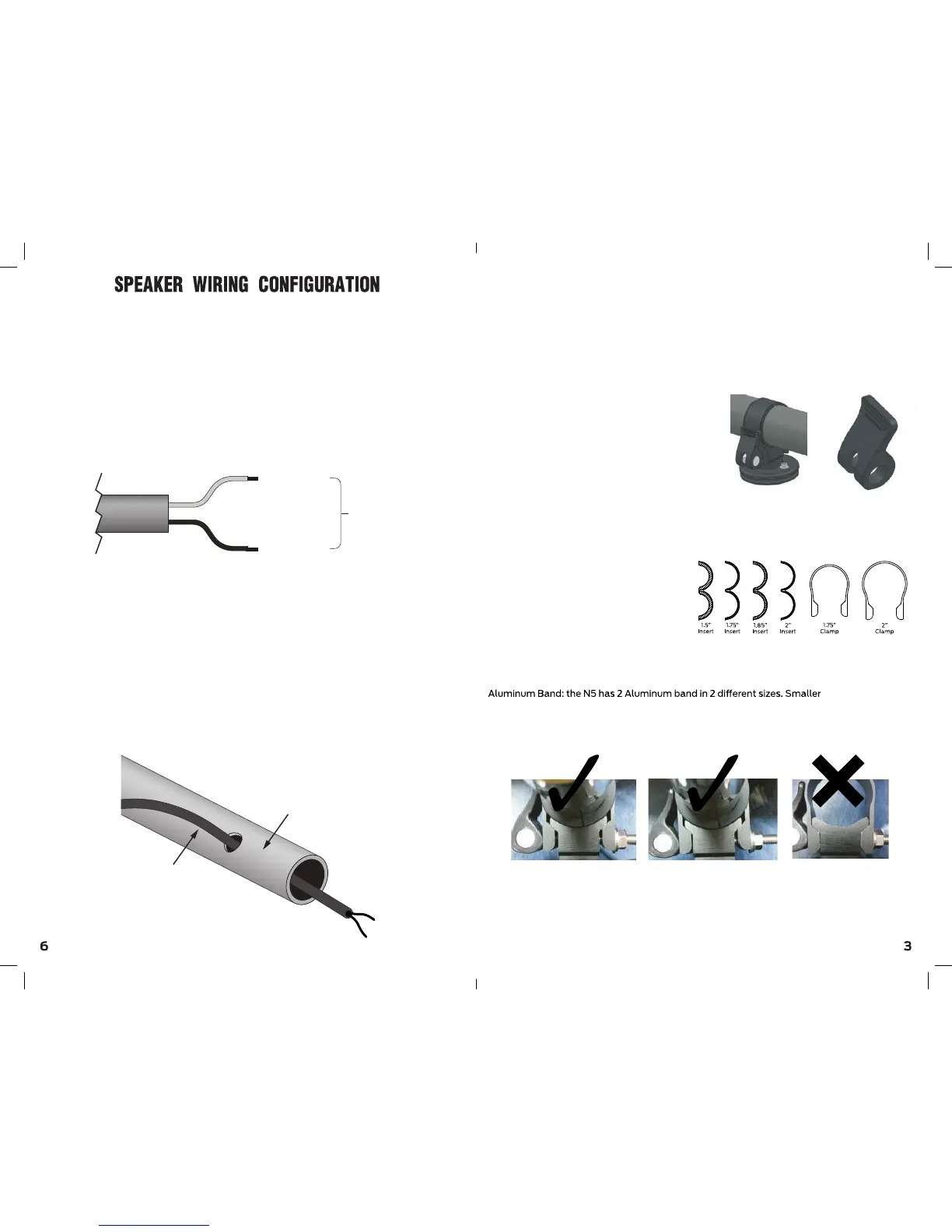

Black SPKR (–)
Red SPKR (+)
Speaker
Wiring
Tower tube
Tower Tube Wiring Detail
12 ft. 2 conductor
speaker wire
Speaker Wiring:
The N5 has a long 12 feet wiring, well protected in a wiring sleeve.
- You can cut the wires to a desired length for a clean installation.
But, make sure to do so only after you finished installing your entire
audio system, including its amplifier.
- Connect the speaker wires to your amplifier ensuring correct polarity;
Red to positive and Black to negative.
Running your N5 wiring:
Option A: Easiest way to run the N5’s wires would be by running it along and
attached to the Bike’s cage/body all the way to the amplifier’s location.
Use a cable tie to ensure a strong grip of the wires to the Bike’s body.
Option B - Tube wiring: for the cleanest installation, you might want to
choose running the wire’s sleeves through the Bike’s tubes.
If you did choose to drill a hole to run the speaker wire through any location,
be careful not to drill into other wiring or existing mechanisms.
Any time a wire is run through a hole, it is necessary to insert a rubber or
plastic grommet to protect the wire from damage.
Importnt featurs of the N5
Please read before first use
The Smart Handle
The smart handle is a first of its kind. we created the smart handle with the ease
of use in mind.
The main purpose of the smart
handle is to allow super fast and
easy installation of the N5 speakers.
The smart handle will allow you to
install the speaker without the need
of using any tools. But, we do
recommend to use a nut wrench
to complete the installation of the N5.
As described later on pages 4 and 5 of this user manual, after closing the
smart handle, a 13mm nut wrench will help you achieving a super strong grip of
the mounting clamp to the bar.
Roll Cage/Bar fitment:
The N5 comes with 4 pairs of rubber
inserts and 2 Aluminum mounting bands.
The mounting system of the N5 is built
to fit 1.5”, 1.75”, 1.85” & 2” bars.
Thus, the N5 will fit most UTV’s models.
* Before installing please measure is your roll cage’s diameter.
Rubber Inserts: Each rubber insert has its intended size written on it.
Band should be used for 1.5” & 1.75” bars while the bigger one should be used
for 1.85” & 2” bars.
The 2 photos on the middle and left shows the right way of installation. After tightening the mounting
band, you should see a gap between the mounting band and the speaker’s mounting base. This gap is
meant to insure a high tension and super strong grip on your roll cage/bar.
If after tightening the mounting bracket, you get a full contact between the mounting band and the
speaker’s mounting base, it means you are probably using the wrong rubber insert size. Please measure
your bar’s diameter and use the right insert size in accordance. Each rubber insert has its intended size
written on it (1.5”/1.75”/1.85”/2”)
Strong And Secure Grip
