N5 Speakers: Control Panel Settings and Adjustments:
NA4 modes:
default settings:
2 Stereo Front + 1 Bridged Mono Rear Output
supplied with your kit or in case of distortion,
your default settings should be perfect.
Filter mode and Sensitivity (‘GAIN’) settings:
Filter mode:
HPF - (High-Pass) Configures Filter to Attenuate Frequencies
BELOW the Selected Filter Frequency.
LPF - (Low-Pass) Configures Filter to Attenuate Frequencies
ABOVE the Selected Filter Frequency.
FULL - Full-Range Operation of Input Signals
As mentioned, Your NA4 amplifier’s control panel was preset to fit the N5 Full-range
speakers and NSUB subwoofer supplied with the NUTV5/NUTV5-S stereo system. Unless
avoid adjusting the gain and crossover settings of the amplifier.
The pair of N5 speakers features front 5.25” Water-proof Speaker and 20 mm PEI
Diaphragm tweeter. On the back, you’ll find a passive radiator for increased bass
experience.
NSUB Subwoofer:
The NSUB is the very first roll cage mounted subwoofer. Equipped with 8” Marine
Subwoofer Speaker on the front and pair of 3”x6” passive radiator on the back.
* only included in the NUTV5-S model.
Smart Handle:
Both the N5 and NSUB speakers uses our Smart Handle. we created the smart handle with
the ease of use in mind. The main purpose of the smart handle is to allow super-fast and
easy installation of the NSUB & N5 speakers.
* THIS MANUAL AND OTHERS CAN ALSO BE
FOUND ON OUR WEBSITE UNDER ‘SUPPORT’
SECTION *
WWW.NOAMAUDIO.COM

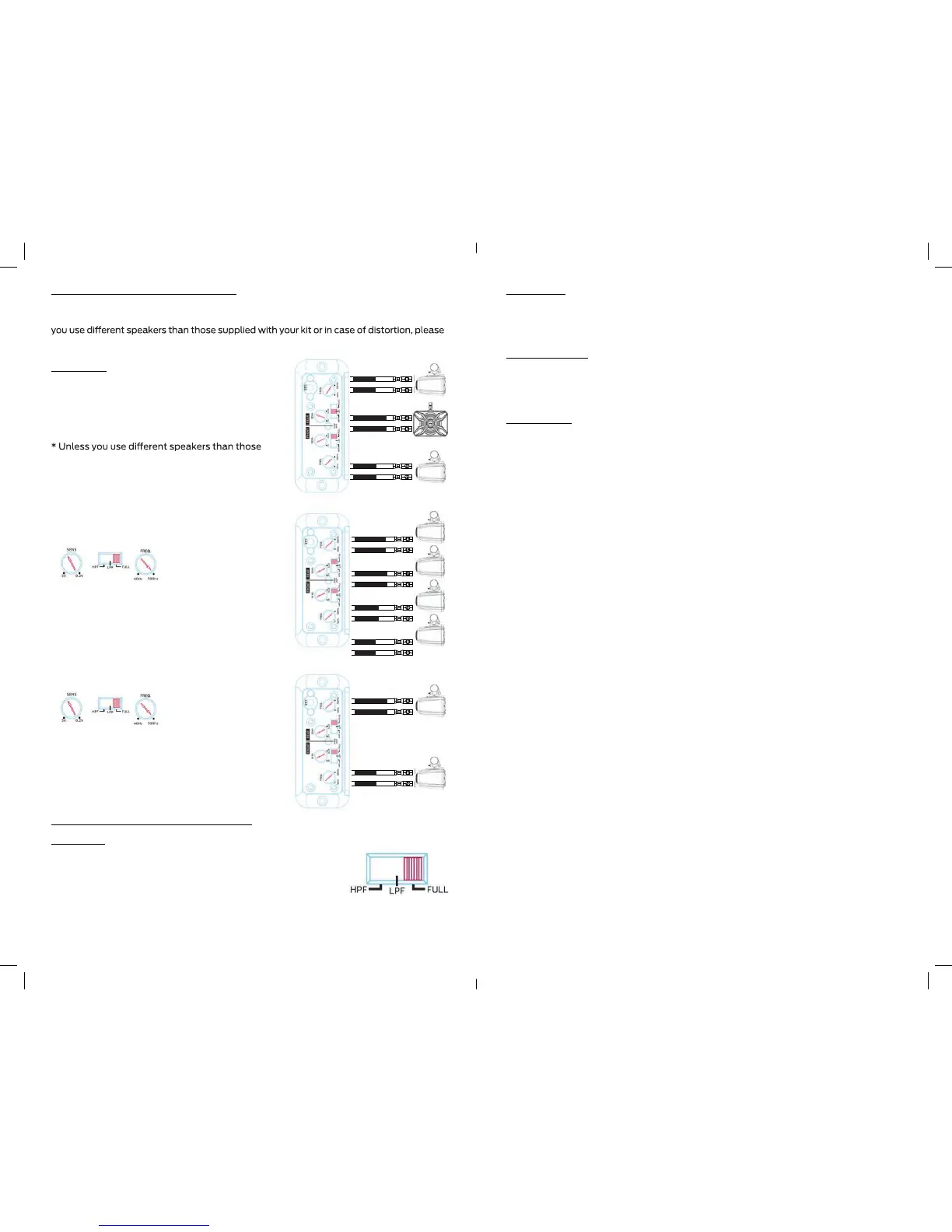

4 channels stereo mode:
2 Stereo Front + 2 Stereo Rear Output
Using the amplifier with 4 full range speakers
Will require you to change the settings.
* Input gain (SENS) should be tested and tuned
In accordance with the used speakers and audio
Source.
** Crossover control should be tuned to ‘FULL’
2 bridged stereo output:
Using the amplifier for 2 briged, full range speakers,
Will require you to change the settings.
* Input gain (SENS) should be tested and tuned
In accordance with the used speakers and audio
Source.
** Crossover control should be tuned to ‘FULL’
Rear / Left +
Rear / Left - // Sub-
Rear / Right + // Sub+
Rear / Right -
Front / Left +
Front / Left -
Rear / Right + // Sub+
Rear / Left - // Sub-
Front / Left +
Front / Left -
Front / Right -
Front / Right +
Rear / Right + // Sub+
Rear / Left - // Sub-
Front / Right +
Front / Left -
Front / Right -
Front / Right +
