Nobles SS300 - Machine Components

OPERAT ION
Nobles Speed Scrub 300 (10- 2022)
7

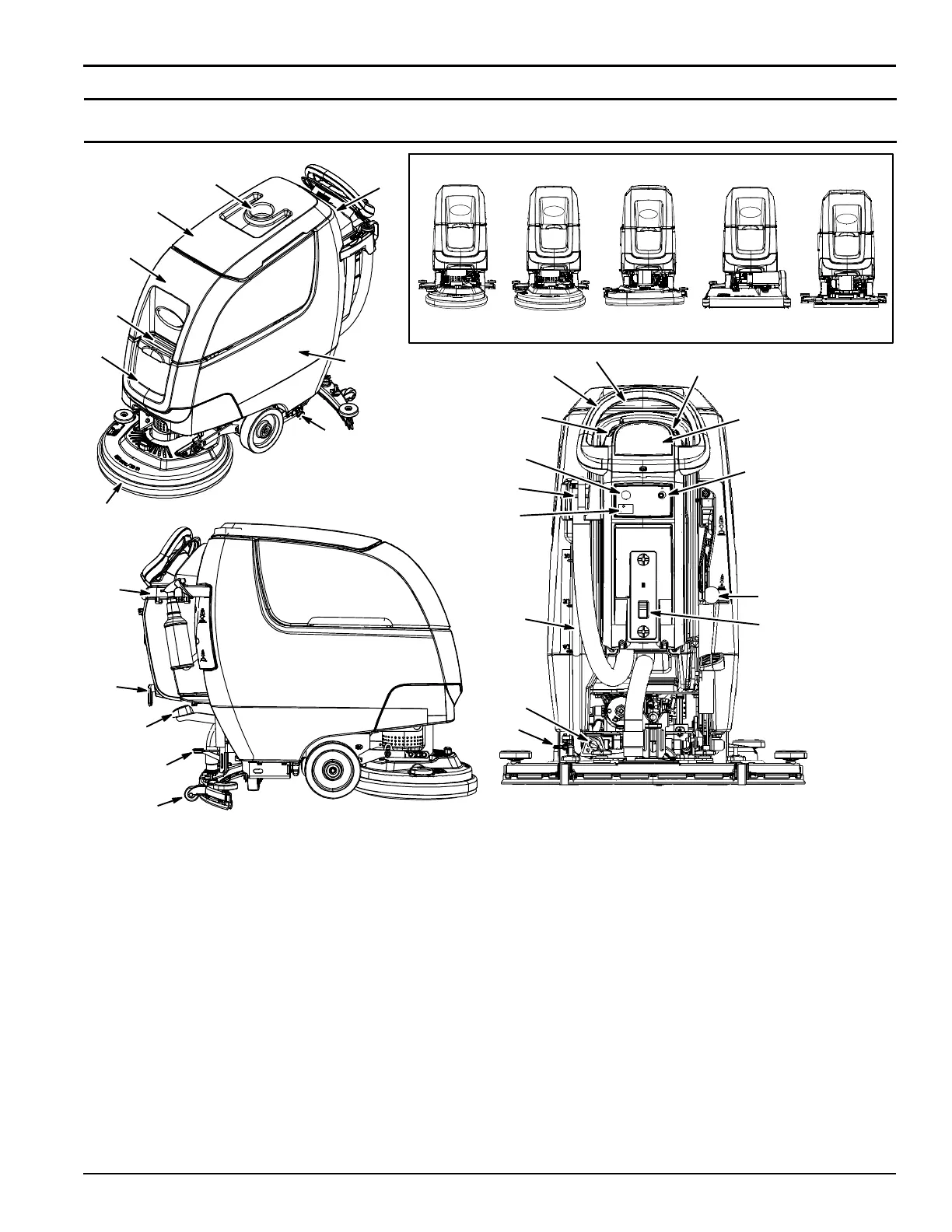

MACHINE COMPONENTS
15
1
17 in / 43cm
Disk
20 in / 50cm
Disk
24 in / 60cm
Dual Disk
20 in / 50cm
Cylindrical
20 in / 50cm
Orbital
Scrub Head Types
2
4
3
5
6
7
24
8
9
10
11
12
14
16
17
20
22
18
19
23
24
26
25
21
13
27
1. Cup holder/tray
2. Recovery tank lid
3. Recovery tank
4. Solution tank fill-port
5. Solution tank
6. Scrub head
7. Battery compartment
8. Accessory rail(s)
9. On-board battery charger cord hooks
10. Scrub head lift pedal
11. Squeegee foot pad
12. Squeegee assembly
13. Control handle
14. Control handle start bail
15. Speed control knob (drive model)
16. Forward/Reverse lever (drive model)
17. Control panel display
18. Emergency stop button (option)
19. Hour meter
20. Key switch
21. Off-board battery charger receptacle
22. Recovery tank drain hose
23. Solution tank level/drain hose
24. Parking brake (option)
25. Dual down pressure lever (option)
26. Solution flow control knob
27. Circuit breaker panel splash guard.
