OPERATION EN
5
Nobles Strive Compact (03--08)

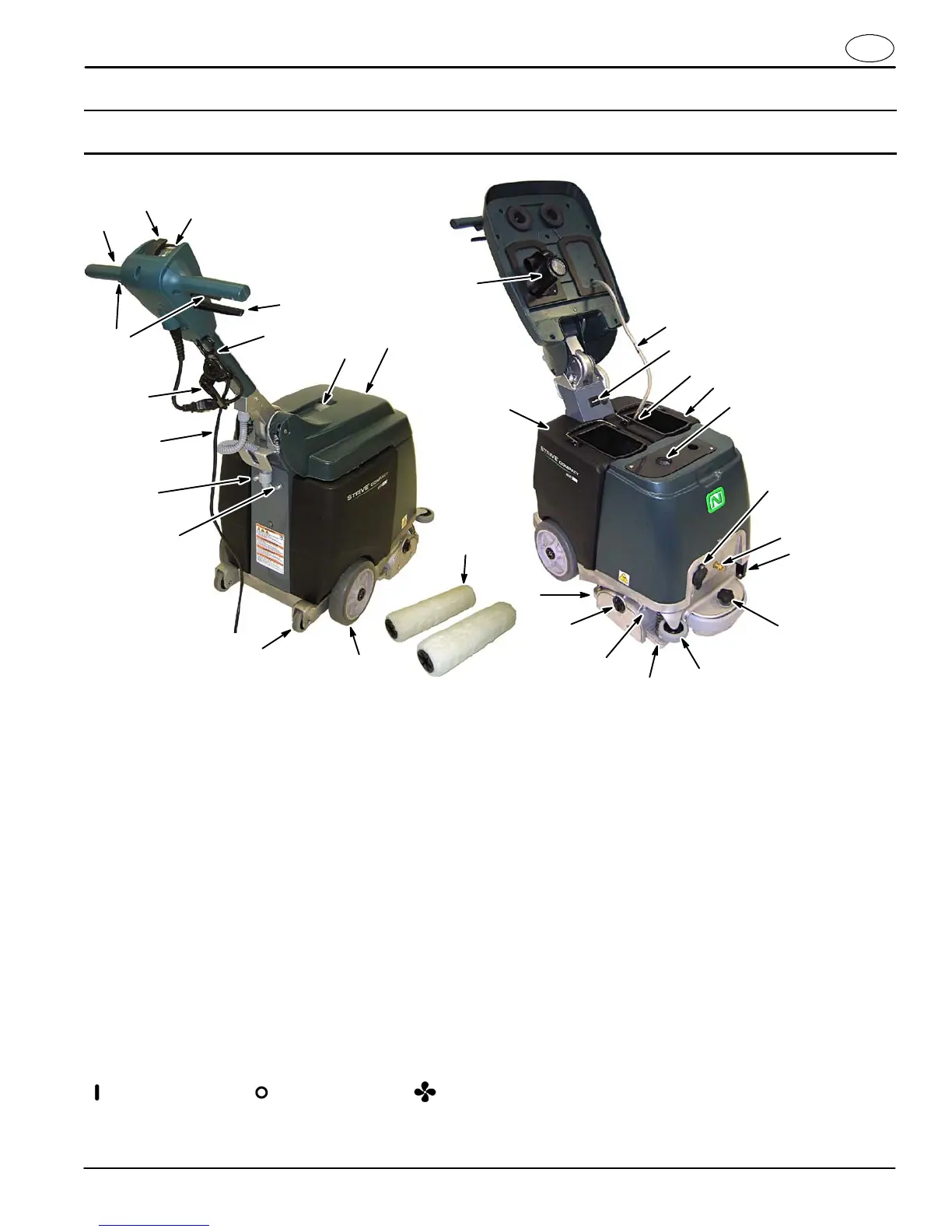

MACHINE COMPONENTS
1
2
3
5
4
8
7
6
9
10
11
12
13
14
15
18
17
16
20
26
23
22
25
21
24
19
27
28
26
29
30
1. Adjustable Control Handle
2. Main Power ON/OFF Switch
3. Roller Pressure Meter
4. Start Triggers
5. Handle Adjustment Lever
6. 50 ft/15 m Power Cord
7. Power Cord Strain Relief Clip
8. Power Cord Hook
9. 15A Machine Circuit Breaker Button
10. 5A Brush Circuit Breaker Button
11. Recovery Window
12. Tank Cover
13. Main Wheels
14. Curb Climbing/Tilt Wheels
15. Vacuum Shut--Off Float
16. Recovery Tank
17. Solution Tank
18. Solution Hose
19. Solution Hose Screen
20. Hour meter
21. Vacuum intake Screen
22. Accessory Tool Solution Hose Coupler
23. Accessory Tool Vacuum Hose Port
24. Scrub Head
25. Roller Idler Plate Locking Knob
26. Vacuum Shoes
27. Support Stand
28. Roller Pressure Adjustment Knob
29. Bumper Wheel
30. Rollers
SWIT CH SYMBOLS
VacuumPower On
Power Off
