OPERATION
2011KCI

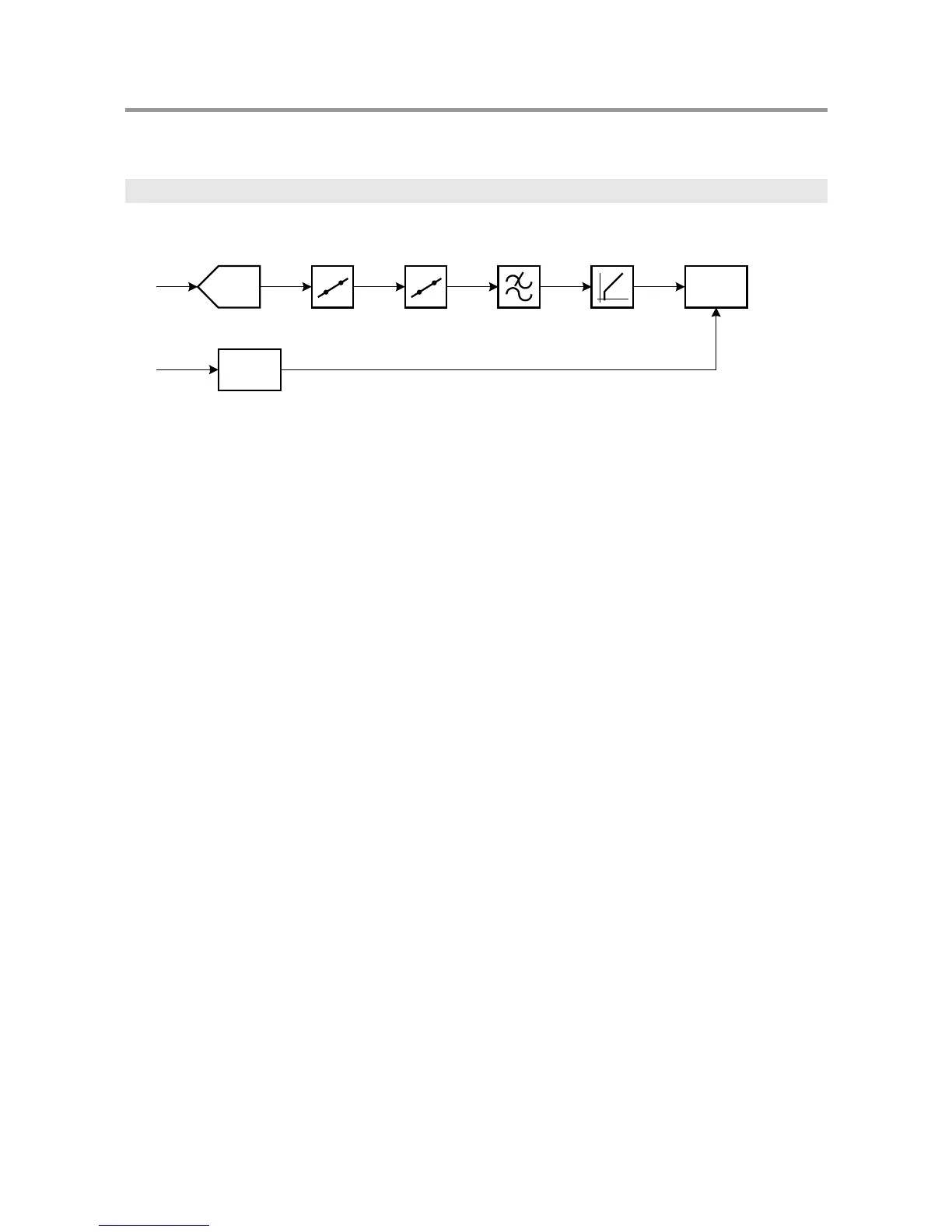

Input processing
The input is measured using an analog-to-digital
converter. The reading is scaled to a weighing
reading using the Lo and Hi setting in the
configuration menu. When the input signal is 2.00
V, the display will indicate the Lo value, which is
almost always set to 0. At 8.00 V input, the display
will indicate the Hi value. The measurement unit
can be freely selected (kg, ton, lbs...), and there is
no need for the display unit to know it.
How many digits are displayed after the decimal
point, is defined with the Dec setting in the
configuration menu. The Dec setting can also be
used to show fixed zeros, which is useful when
displaying large readings (e.g. 10000 kg) and the
last digits would otherwise be nervous.
The display can be slowed down with a digital 3rd
degree lowpass filter.
The Dead setting can be used to round small
readings to zero, or to prevent negative readings
Flt switch
The input card 2012KCI has one digital input.
Closing a switch connected to it will make the
display to show "Flt" (except in Remote state).
7
