Nokia 1616
RH-125/RH-126
Service Manual Level 1&2
9
Confidential
Copyright © 2010 Nokia
All rights reserved
Version 2.0
ISSUE 2

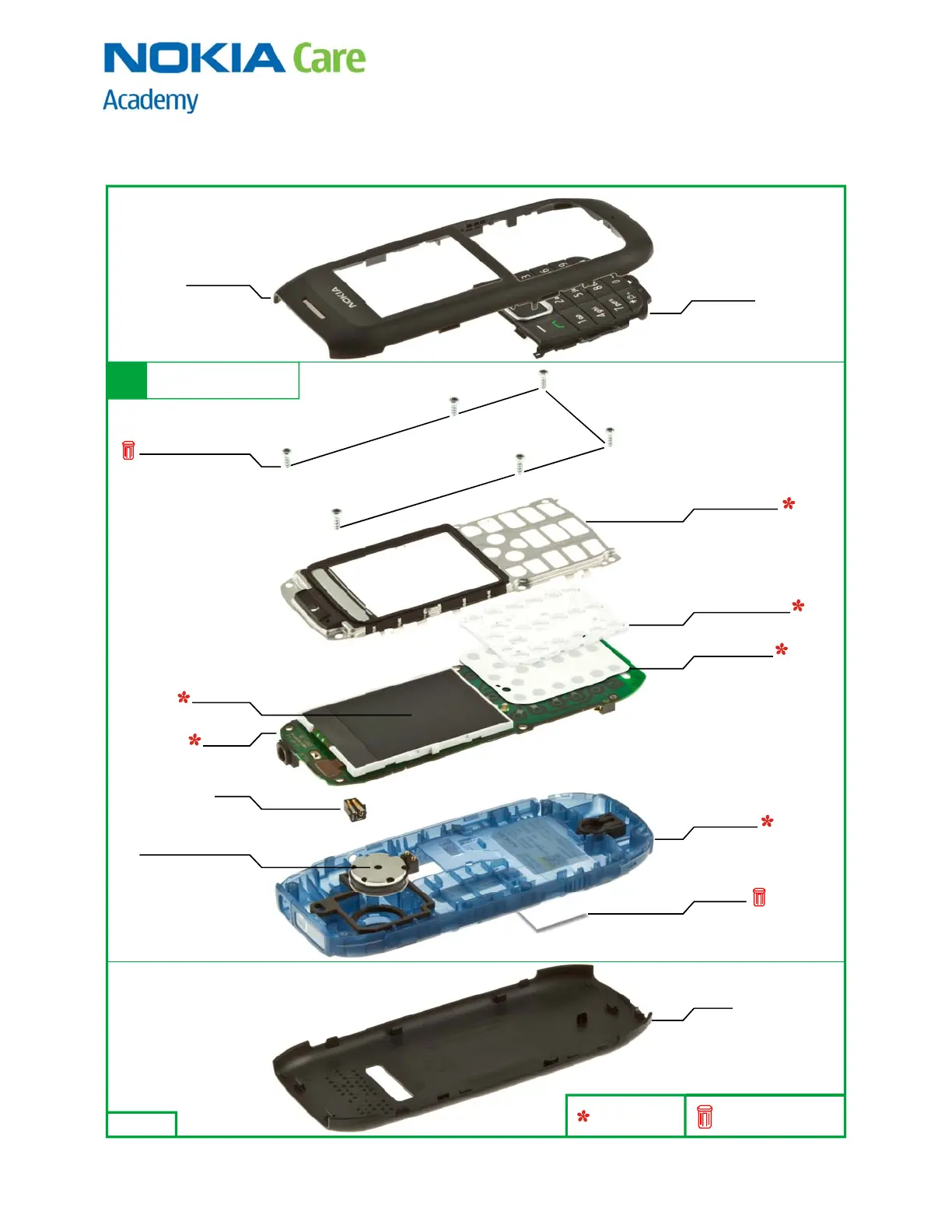

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 2.0
ATO ASSY
(I0003 - I0012, I9998)
A1
A-COVER ASSY
I0001
LCD MODULE
I0007
DC JACK
I0010
MFD BARD-A 16x4.5mm
I0009
PWB ASSY
I0008
SCREW 1.6x4.5 TORX+ 6
I0003
UI SHIELDING ASSY
I0004
KEYMAT LIGHT GUIDE
I0005
DOMESHEET ASSY
I0006
D-COVER ASSY
I0011
TYPE LABEL
I0012
B-COVER
I0013
KEYMAT ASSY
I0002
