10. DISASSEMBLY INSTRUCTIONS

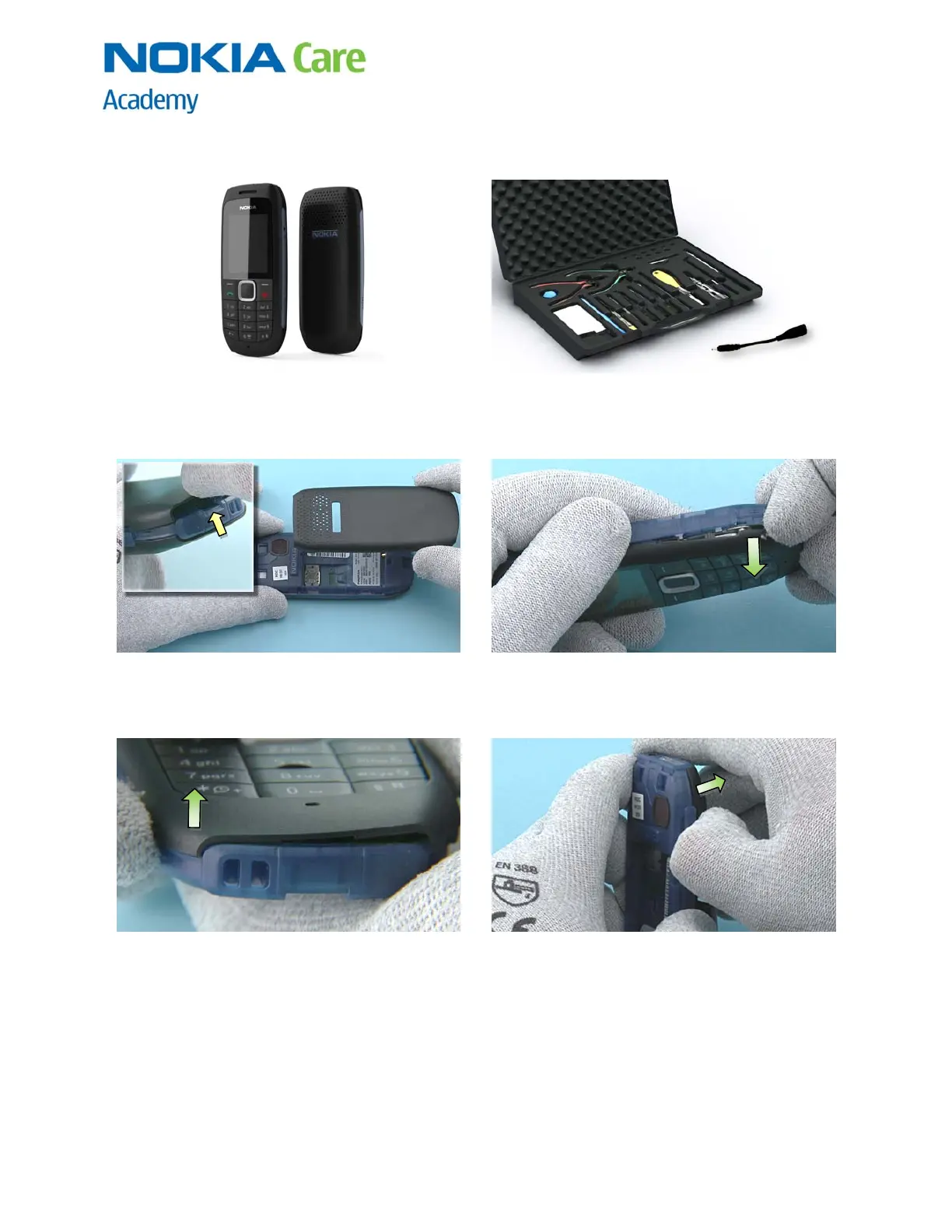

1) Nokia 1616 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need a DC plug.
3) Use the opening notch to release the BATTERY
COVER. Remove the BATTERY COVER.
4) Start releasing the A-COVER ASSY by releasing the
bottom corner as shown.
4) Then release the other bottom corner. 6) Continue releasing the top side of the A-COVER
ASSY. Start from the corner as shown.
To Next Page
