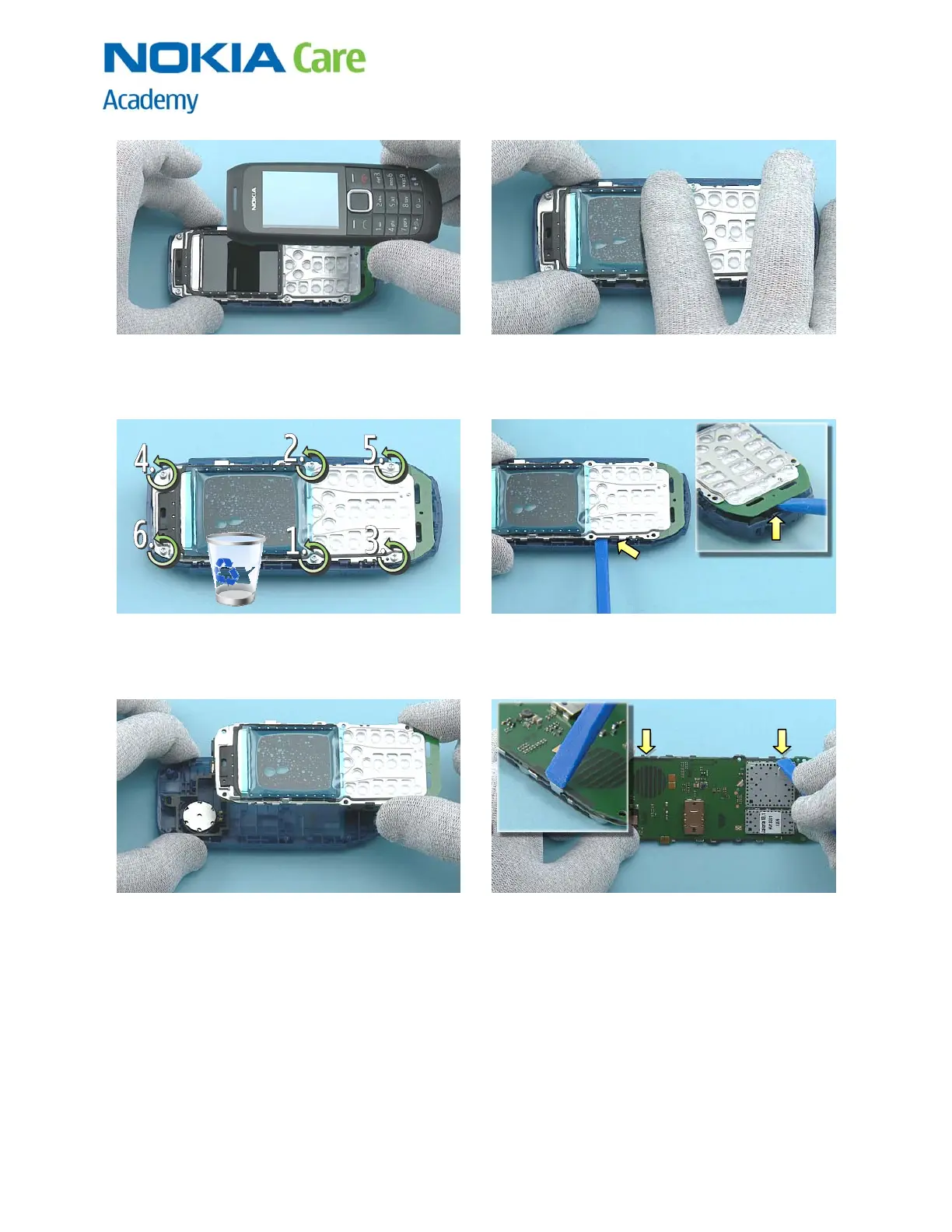

7) Remove the A-COVER ASSY. 8) Protect the LCD MODULE with protective film.
9) Unscrew the six TORX+ size 6 screws in the order
shown. Do not use them again. Discard them.
10) Lever out the ENGINE BOARD with the SS-93.
Start from the left side of the device and continue
on the bottom side.
11) Separate the ENGINE BOARD and the D-COVER
ASSY.
12) Using the SS-93, release the two clips holding
the UI SHIELDING.
