Nokia 1616
RH-125/RH-126
Service Manual Level 1&2
14
Confidential
Copyright © 2010 Nokia
All rights reserved
Version 2.0
ISSUE 2

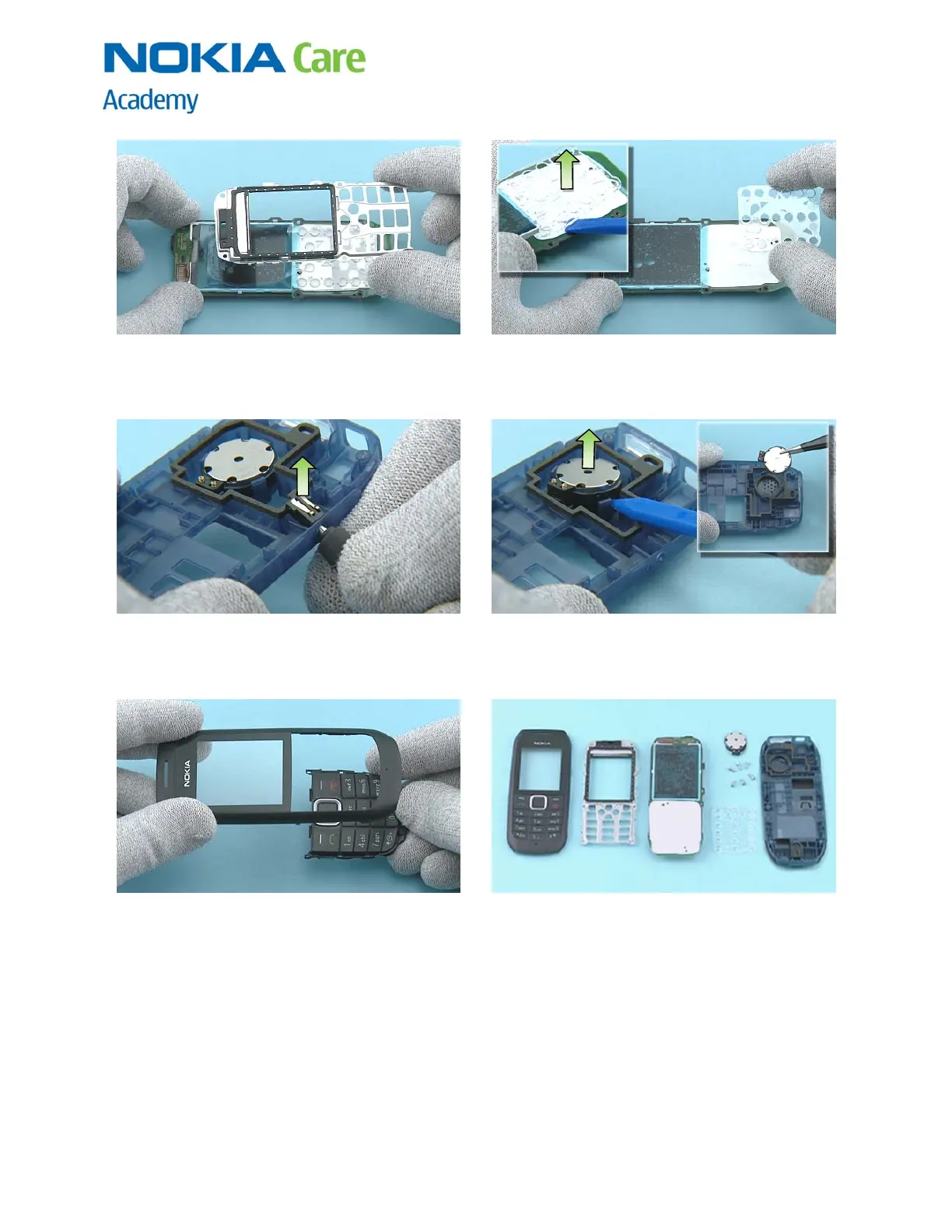

13) The UI SHIELDING can now be removed. 14) Lift up and remove the KEYMAT LIGHT GUIDE.
15) Use the DC plug to lift up and remove the DC
JACK.
16) Lift up the SPEAKER with the SS-93 tool and
remove it with the tweezers.
17) Separate the KEYMAT ASSY and the A-COVER ASSY
by pushing out the KEYMAT ASSY.
18) Nokia 1616 disassembly is now complete.
-END OF DISASSEMBLY-
