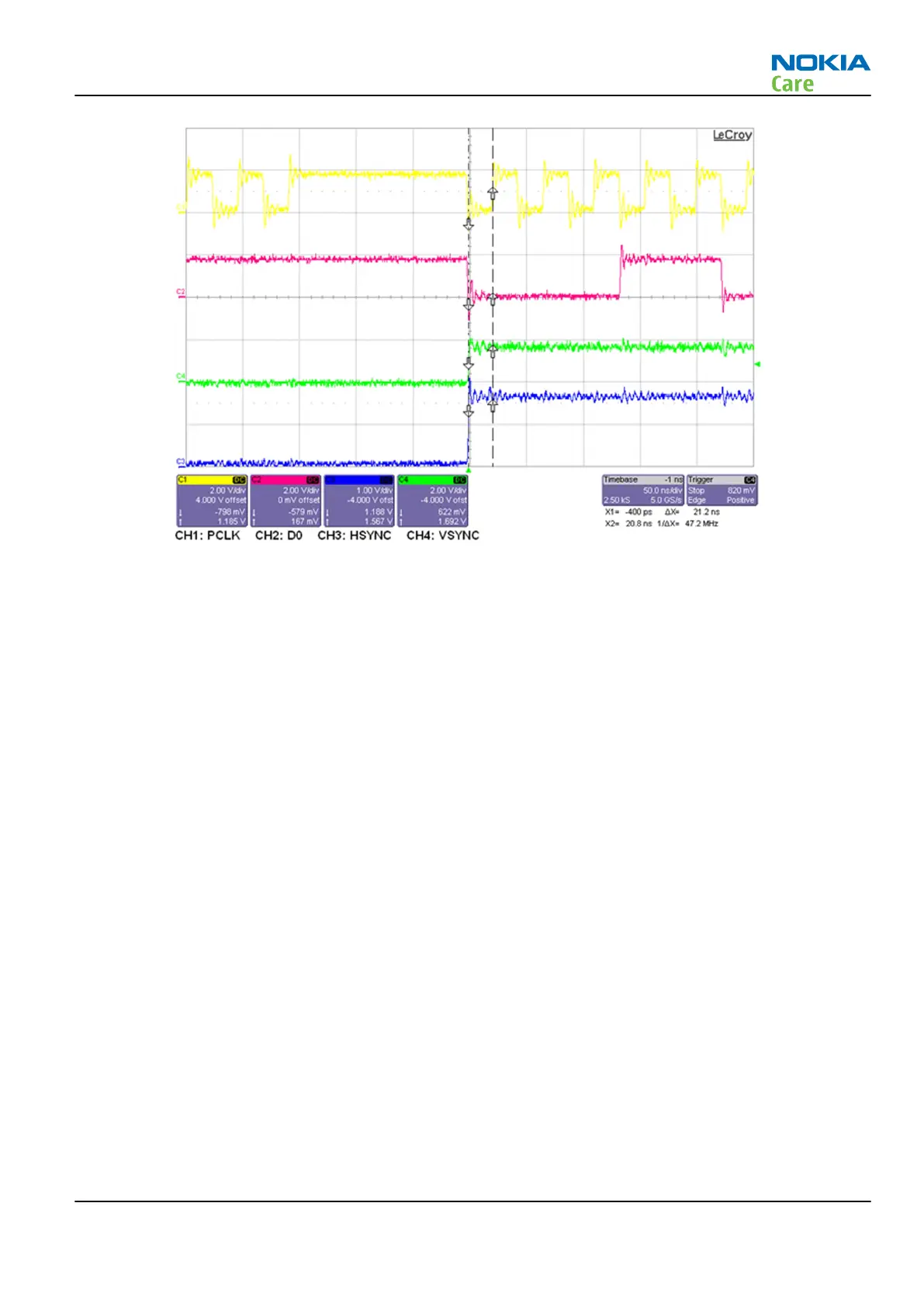

Figure 21 Interface signals between D3100 and N3000
The above figure shows the interface signals between N3000 and D3100 when the camera is active:
Yellow: Pixel Clock signal J3002
Red: Data bit 0 J3003
Green: Hsync J3005
Blue: Vsync J3006
Actual pixel clock frequency, Vsync and Hsync frequency and data content will depend on the camera used
(resolution, frame-rate) and operating mode (still picture capture, video recording, viewfinder mode).
RM-761; RM-799; RM-800
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 – 23
Copyright © 2011 Nokia. All rights reserved.
