Nokia 2010 User Manual

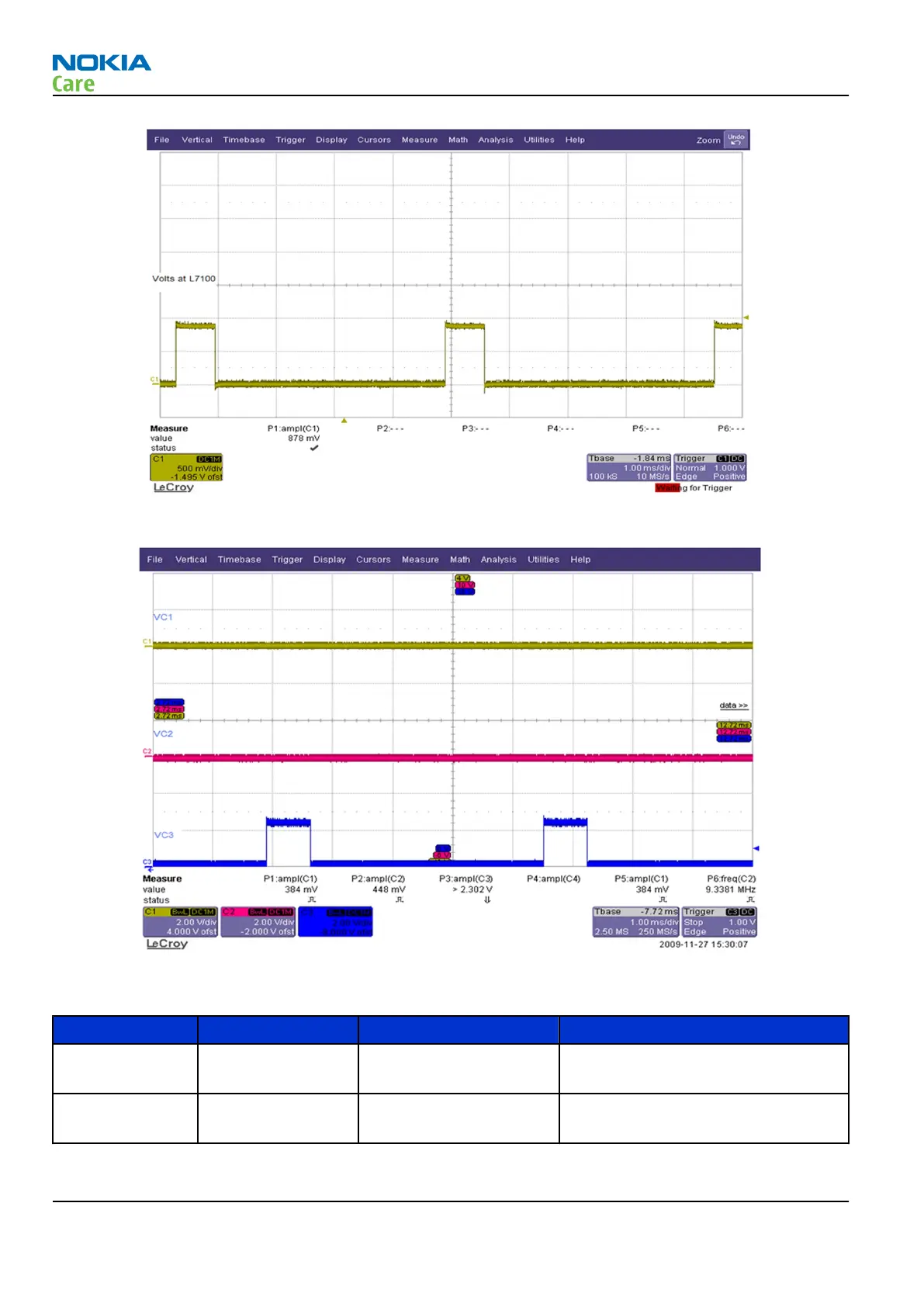

Figure 37 X-Gold RX pin volts @ L7100(LB) / L7101(HB)
Figure 38 RX LB FEM logic waveform (C1:VC1; C2:VC2; C3:VC3)
Table 1 Power supply voltages for the X-GOLD213 IC RF sub-system
Name Ball No. Test point Function
VBAT G14 C7134 3.6V typ. Battery voltage, supply
voltage of D2B LDO
VDDRF2 G13 C7106 2.5V D2B output voltage, part of RF
supply
RM-761; RM-799; RM-800
RF Troubleshooting
Page 4 – 16 COMPANY CONFIDENTIAL Issue 1
Copyright © 2011 Nokia. All rights reserved.

Nokia 2010 Specifications

General

Announced	1994
Network	GSM 900
Display	Monochrome graphic
Phonebook	Yes
Battery	Nickel-Metalhydrid, 6V, 1200 mAh
Internal memory	No
