Figure 39 X-Gold RX pin volts @ L7100(LB) / L7101(HB)
Transmitter troubleshooting
Transmitter troubleshooting overview
If the phone failure identified at maintenance step1&3 is transmitter fail, and then the phone should be set
to the TX check mode, and then follow the corresponding workflow below for troubleshooting.
Abbreviation and terms:
Specific abbreviations used in TX troubleshooting workflow are described here:
Abbreviation Definition
TXLB_PI_ATT R7107, R7112, R7105
TXHB_PI_ATT R7104, R7108, R7103
TXLB_H4FILTER C7108, C7120, L7504
TXHB_H2FILTER C7109, C7101, L7106

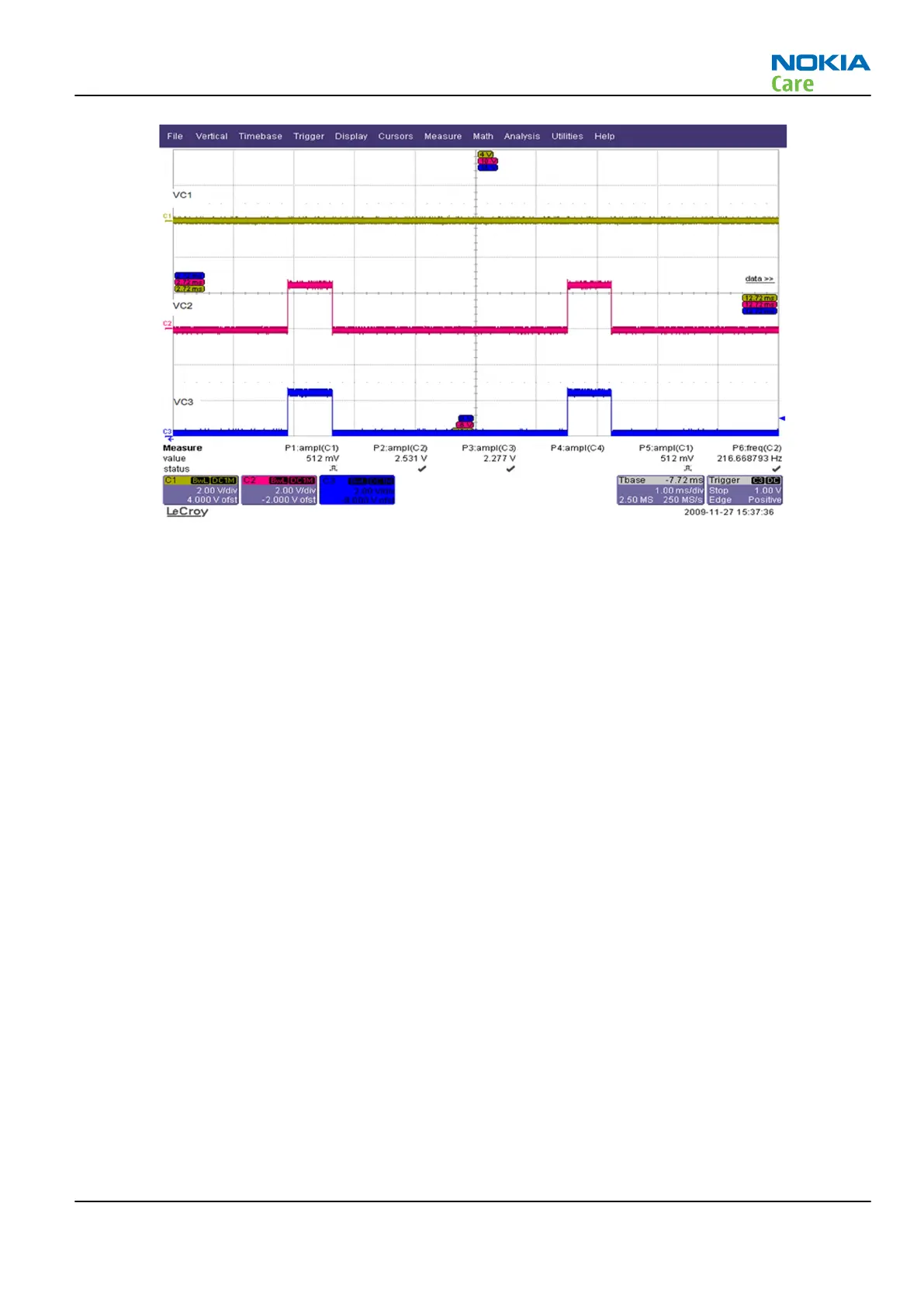

FEM_TxCtl VC1,VC2, VC3, PAEN
FEM_TxCtrlRes R7106, R7110, R7113,R7100
FEM_TxCtrlCap C7105, C7107, C7110,C7132
FEM_BatComp L7707, C7135, C7125, C7117, C7111
RM-761; RM-799; RM-800
RF Troubleshooting
Issue 1 COMPANY CONFIDENTIAL Page 4 – 19
Copyright © 2011 Nokia. All rights reserved.
