Nokia 206 Dual SIM Service Manual

Service Manual Level 1 and 2
Nokia 206 Dual SIM/2060, Nokia 206
RM-872, RM-873
Version 1.0

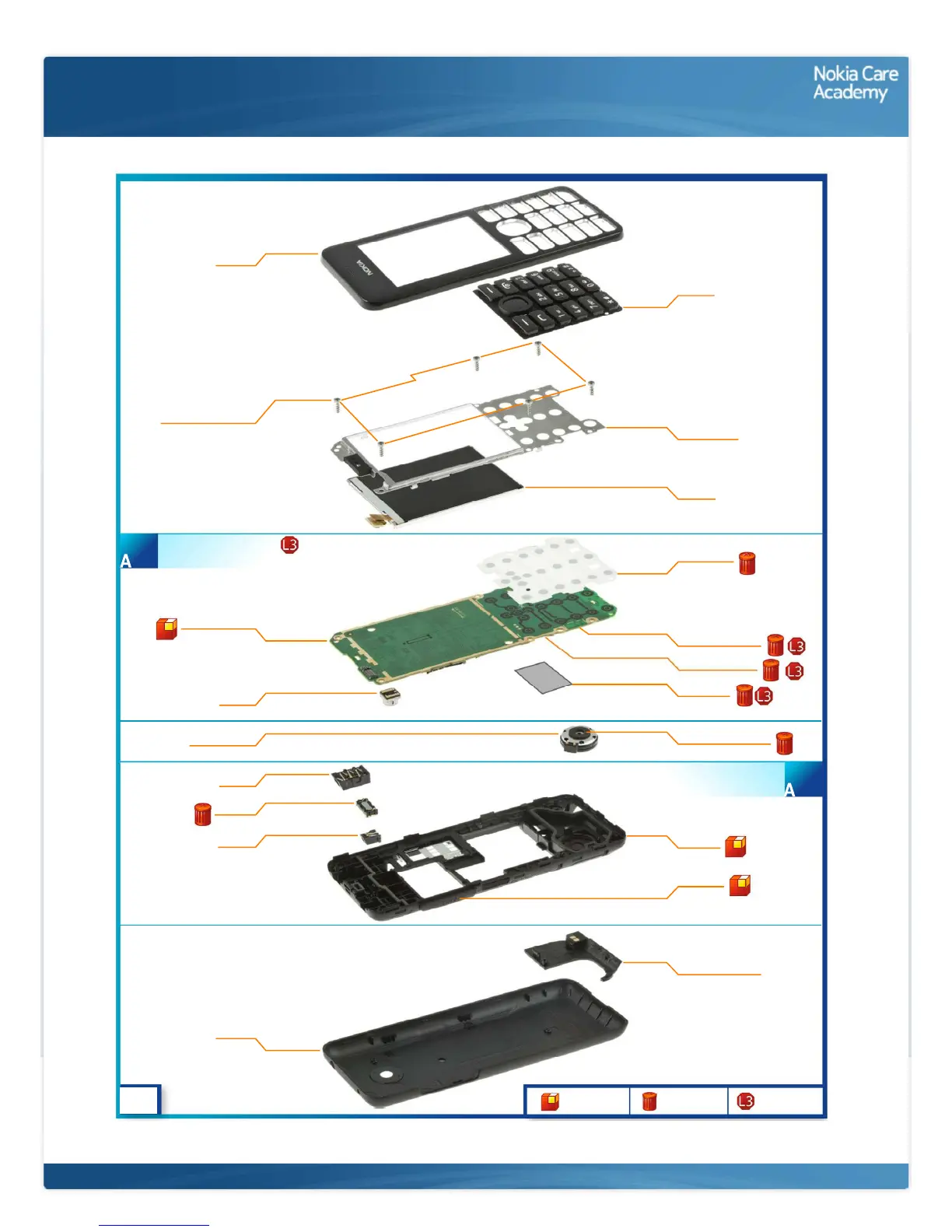

Exploded view
LIGHT SWAP PWB
I0007
B-COVER
I0020
A-COVER
I0001
CAMERA
I0006
AV JACK
I0012
EARPIECE
I0014
DC JACK
I0013
3 IN 1 SPEAKER
I0018
KEYMAT
I0002
DOMESHEET
I0008
SIM DOOR
I0016
* Only in dual SIM variant (RM-873)
UI SHIELDING
I0004
DISPLAY
I0005
TYPE LABEL
I0011
GASKET ON SPEAKER
I0019
D-COVER
I0015
ANTENNA MODULE
I0017
BB SHIELDING LID
I0009
FEM SHIELDING LID
I0010
SCREW TORX+ SIZE 6
M1.6 x 4.5
I0003
LIGHT SWAP PACKAGE
(I0006 - I0011)
1
D-COVER ASSEMBLY
(I0012 - I0016)
2
v1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
