Nokia 2710 - Exploded View

Nokia 2710 Navigation Edition
RM-586
Service Manual Level 1&2
9
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1

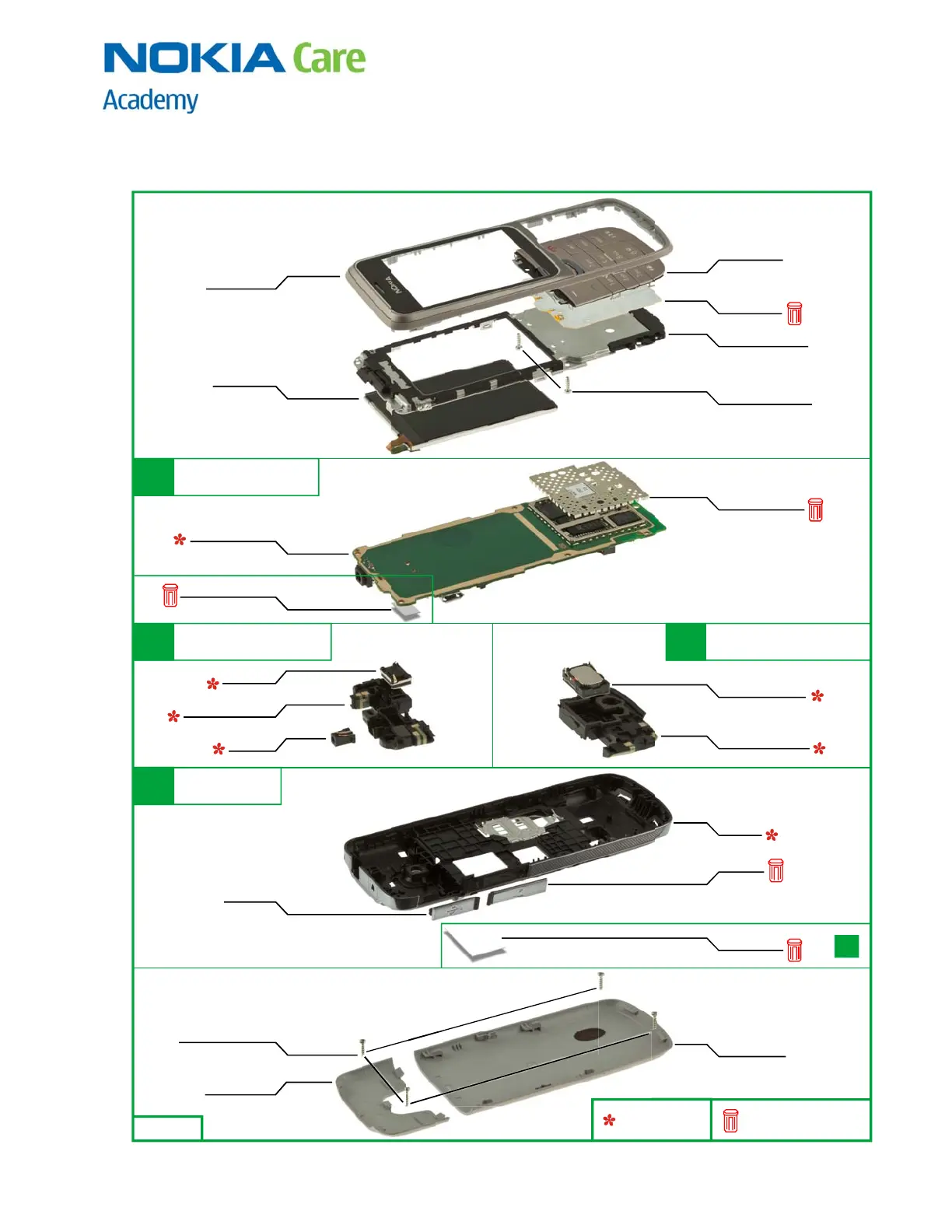

6. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1
A1
LIGHT SWAP PACKAGE
(I0007 - I0009)
A2
ANTENNA MODULE ASSY
(I0011 - I0012)
A3
GPS/BT ANTENNA ASSY
(I0013 - I0015)
A4
D-COVER ASSY
(I0016 - I0018)
A-COVER ASSY
I0001
LIGHT SWAP PWB
I0007
GPS/BT ANTENNA
I0015
DC JACK
I0013
EARPIECE
I0014
UI FLEX ASSY
I0004
SCREWS RF1.4 X 5.0
I0003
KEYMAT ASSY
I0002
UI SHIELDING ASSY
I0005
BB SHIELDING LID
I0008
ANTENNA MODULE
I0012
IHF SPEAKER ASSY
I0011
D-COVER
I0018
B-COVER ASSY
I0021
SD DOOR
I0017
TYPE LABEL
I0009
LCD MODULE
I0006
GPS SHIELDING CAN
I0010
USB DOOR
I0016
B-COVER DECO
I0019
SCREWS RF1.4 X 5.0
I0020
