Nokia 2710 - Assembly Hints

Nokia 2710 Navigation Edition
RM-586
Service Manual Level 1&2
18
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1
10. ASSEMBLY HINTS

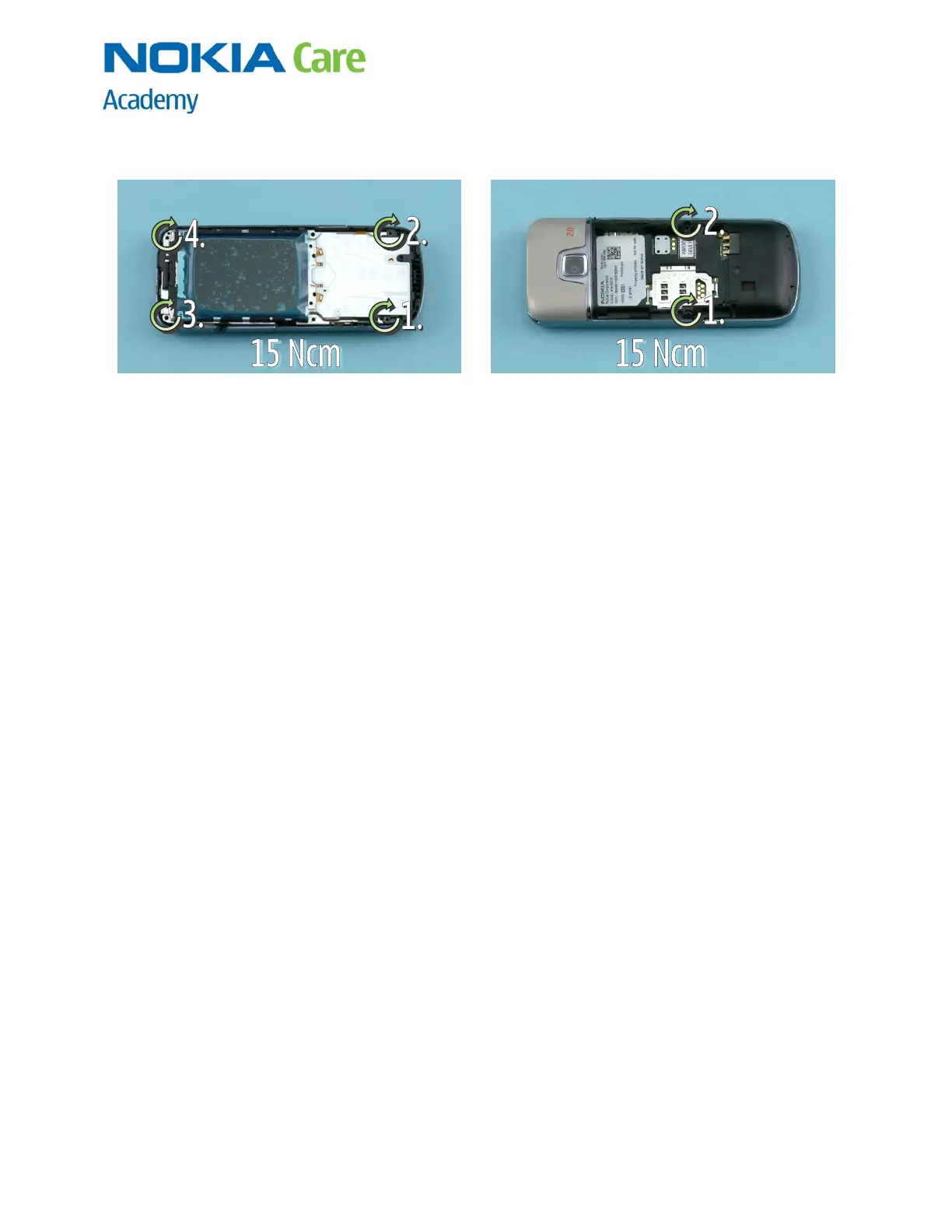

1) Tighten the four TORX + size 4 screws to the
torque of 15 Ncm in the order shown.
2) Tighten the two TORX + size 4 screws to the
torque of 15 Ncm in the order shown.
