Nokia 2710 - Page 17

Nokia 2710 Navigation Edition
RM-586
Service Manual Level 1&2
17
Confidential
 Copyright © 2010 NOKIA  All rights reserved
Version 1.0 ISSUE 1

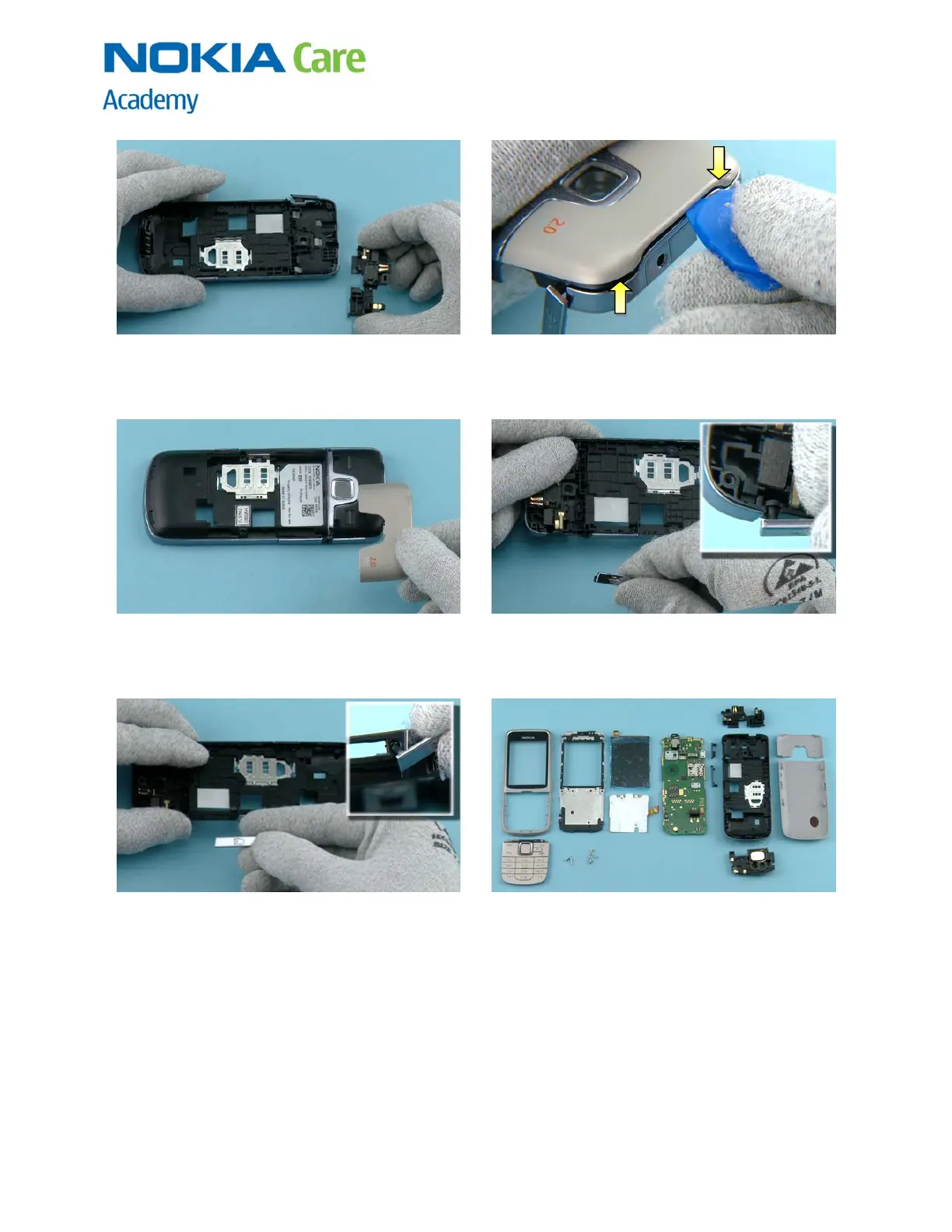

31) Remove the GPS/BT ANTENNA ASSY. 32) Slide the SRT-6 to detach the two clips of the B-
COVER DECO as shown.
33) Remove the B-COVER DECO. 34) Remove the USB DOOR.
35) Remove the SD DOOR. 36) Nokia 2710 Navigation Edition disassembly is
now complete.
-END OF DISASSEMBLY-
