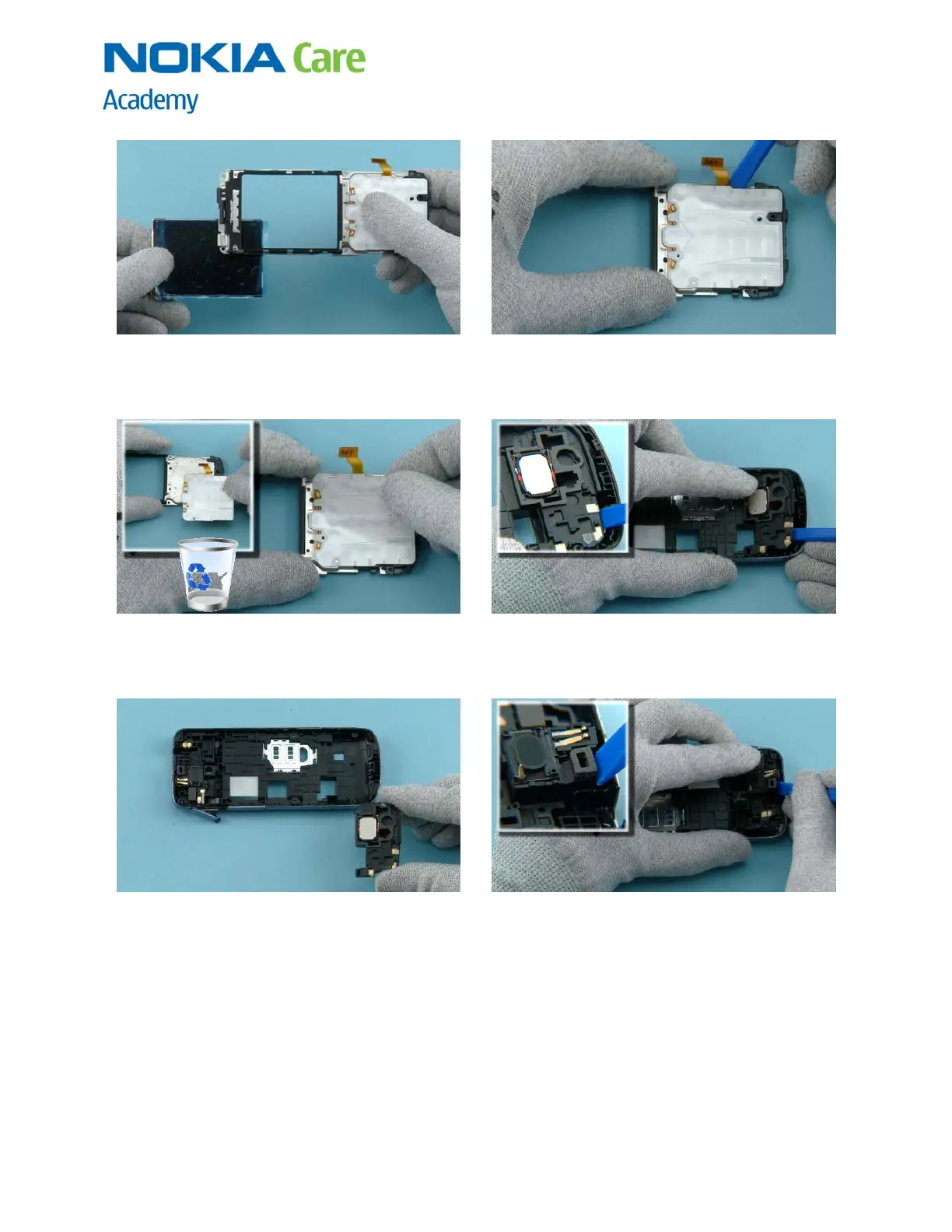

25) Remove the LCD. 26) Lift up the UI FLEX ASSY from the UI SHIELDING
ASSY with the SS-93.
27) Remove the UI FLEX assy. The UI flex cannot be
used again. Discard it.
28) Use the SS-93 to release the ANTENNA MODULE
ASSY.
29) Remove the ANTENNA MODULE ASSY. 30) Use the SS-93 to detach the GPS/BT ANTENNA
ASSY.
