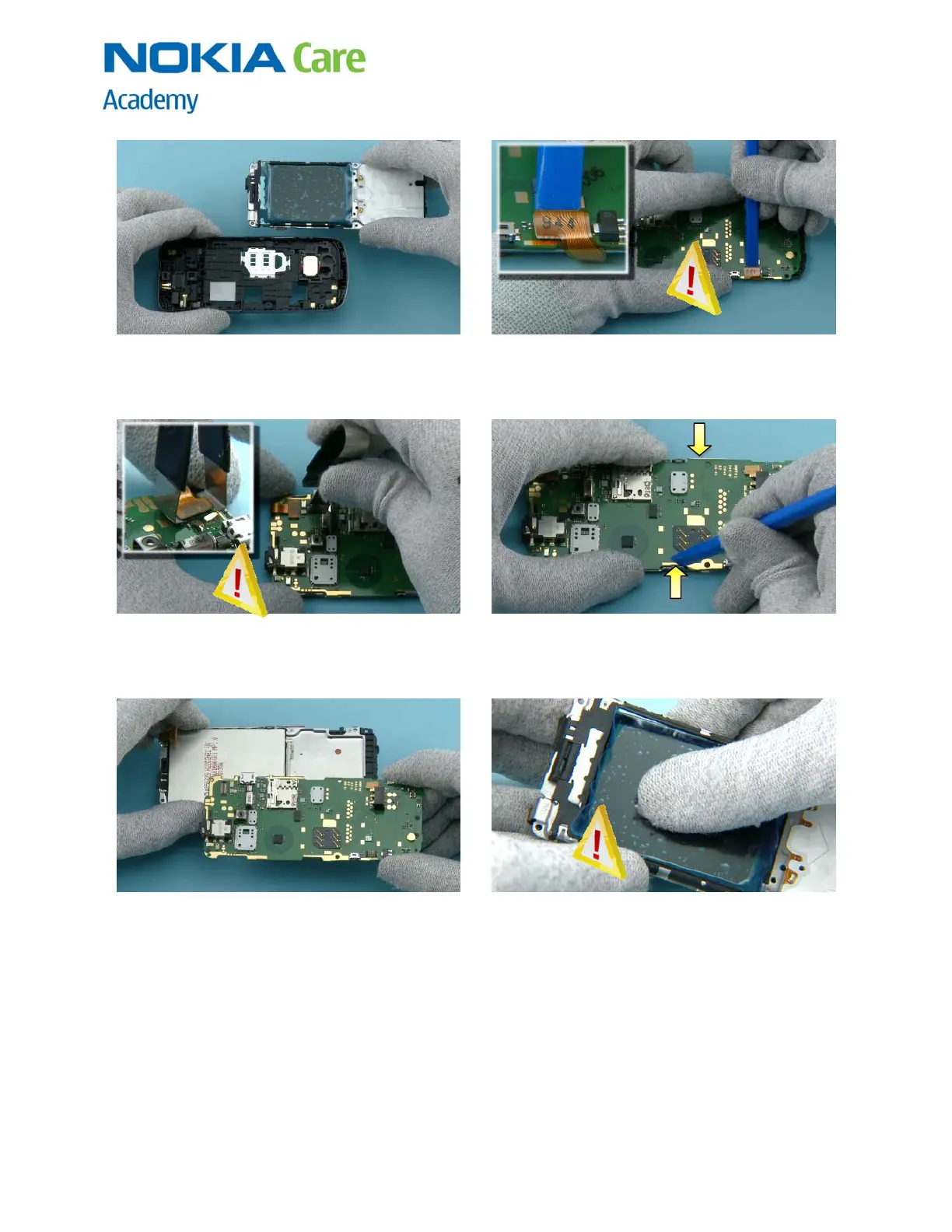

19) Remove the D-COVER ASSY. 20) Use the SS-93 to carefully open the UI SHIELDING
ASSY CONNECTOR. Be careful not to damage the
connector or the components nearby!
21) Use the SS-34 to carefully open the LCD
CONNECTOR. Be careful not to damage the connector
or the components nearby!
22) Detach the two clips holding the engine board
with the SS-93.
23) Remove the engine board. 24) Press out the LCD from the UI SHIELDING ASSY. Be
careful not to damage the LCD!
