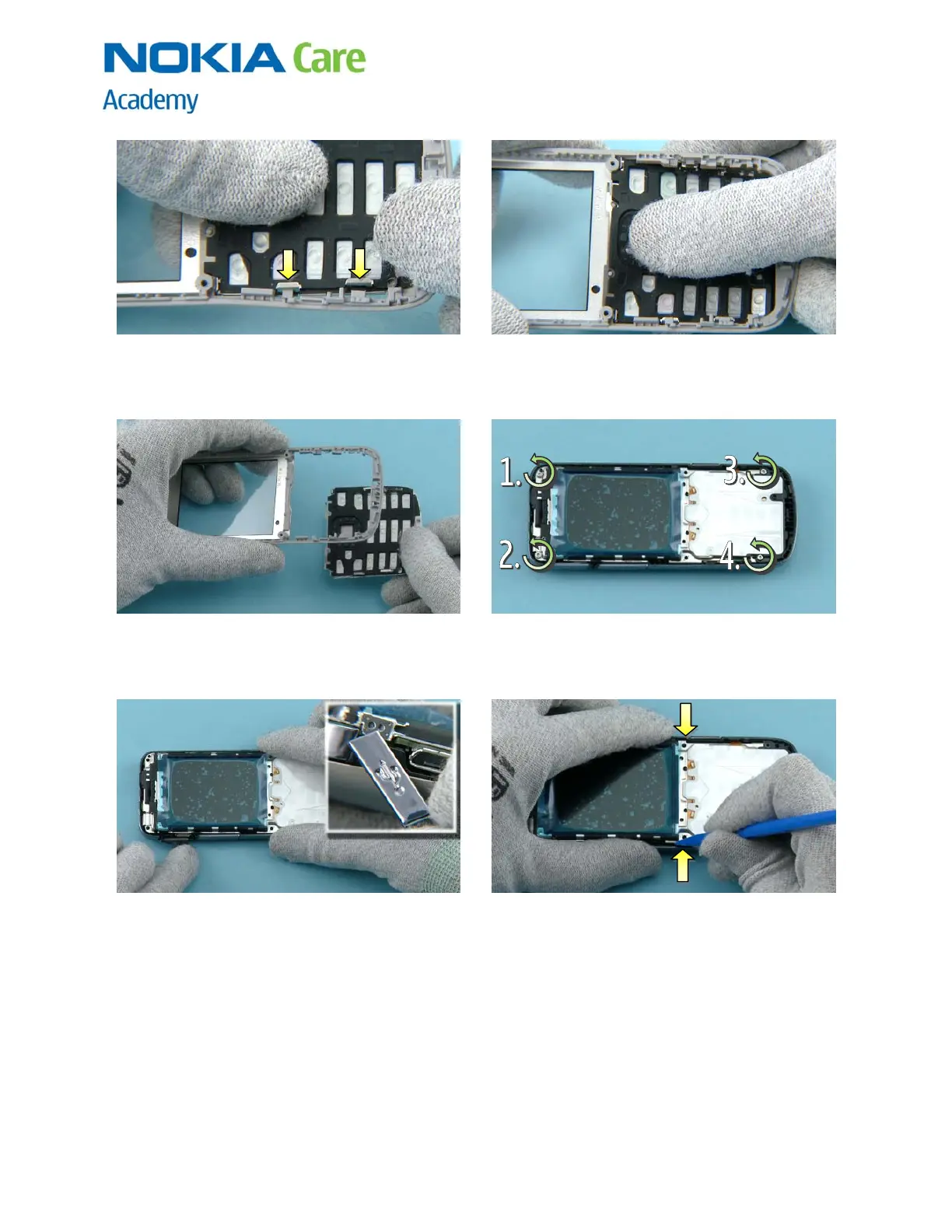

13) Release the two clips on the other side. 14) Press out the KEYMAT ASSY from the A-COVER
ASSY.
15) Remove the KEYMAT ASSY. 16) Unscrew the four TORX+ size 4 screws in the
order shown.
17) To separate the engine board, first open the USB
DOOR.
18) Release the two clips holding the D-COVER ASSY
with the SS-93 as shown.
