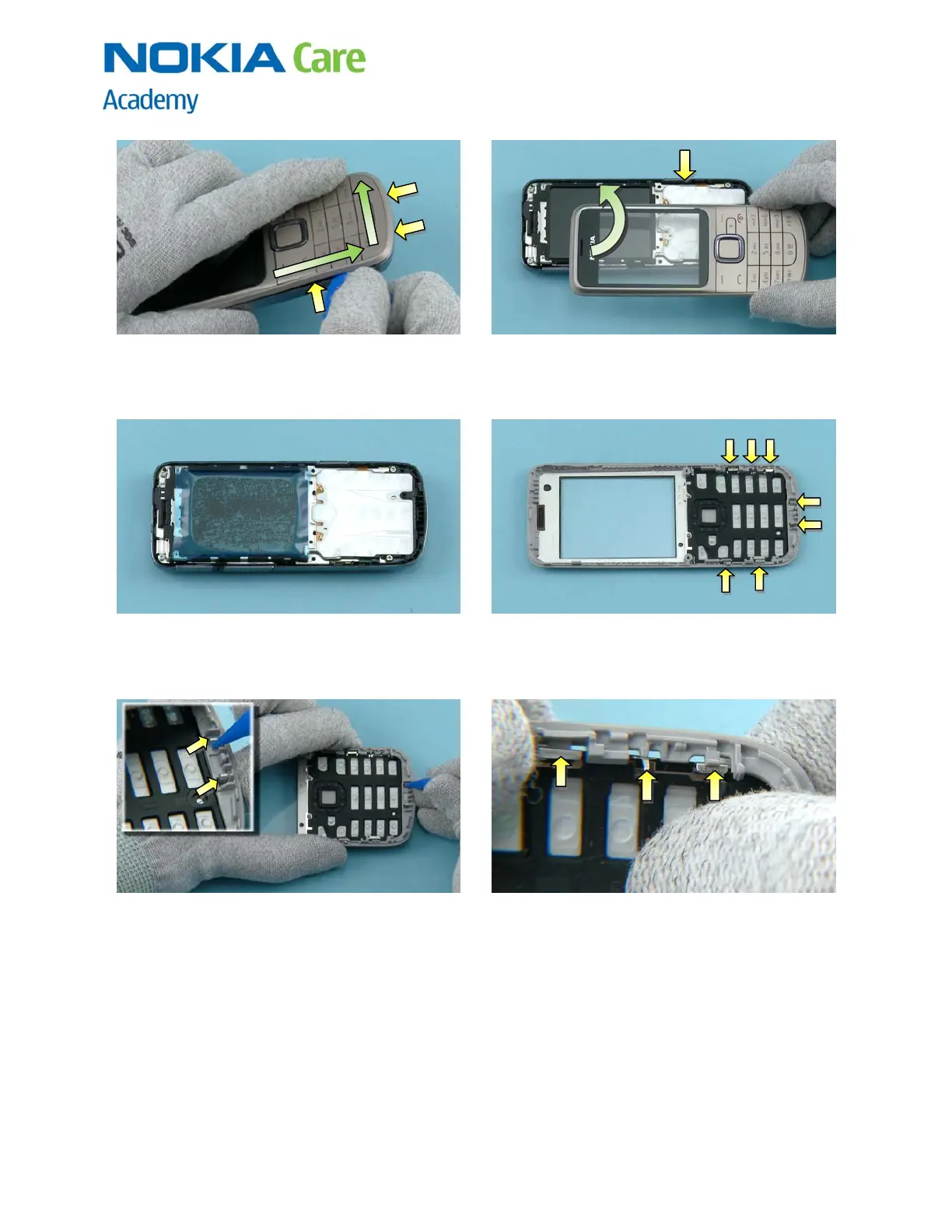

7) Slide the SRT-6 towards the bottom end to
release the clip on the side of the phone. Then
release the two shown clips on the bottom end by
sliding the SRT-6 to the direction shown.
8) Carefully lift up the A-COVER from the left side to
release the shown clip. Remove the A-COVER ASSY
and check that the clips remained unharmed.
9) Protect the LCD with a protective film. 10) To remove the KEYMAT ASSY, release all seven
clips shown.
11) First release the clips at the bottom end with
the sharp end of the SS-93.
12) Then release the three clips on the side.
