8. Screen and Faceplate Blemishes
8.1. Definitions of inspection conditions and terms
8.1.1. Standard observing condition
Distance: 30 cm from screen face. Angle 45 from Z axis.
Cosmetic inspection without ra ster should be done under luminance: 500lx MIN.

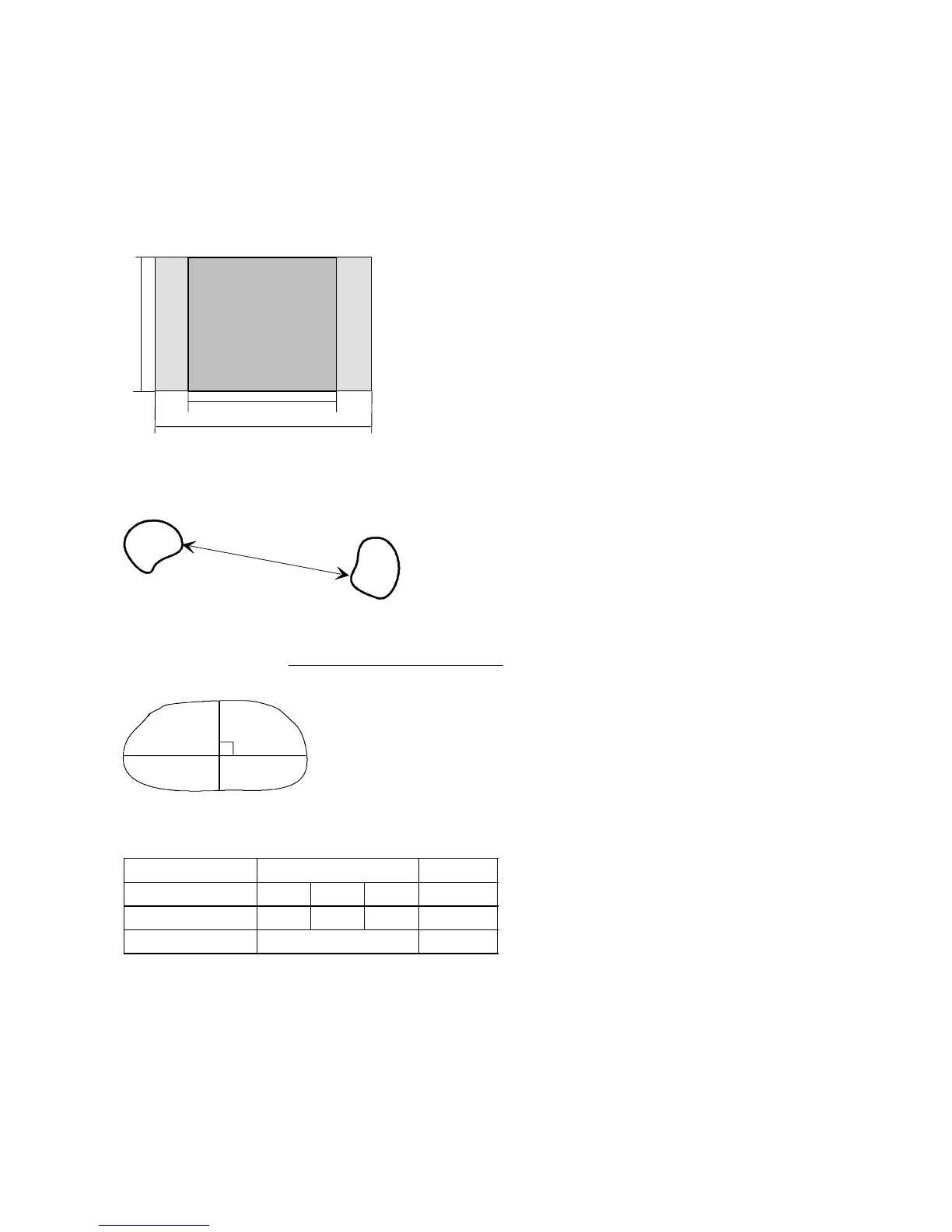

8.1.2. Zone division
302.2 mm
302.2 mm
A
B
other screen area
8.1.3. Minimum distance beetween defects
8.1.4. Average diameter of defect
Average diameter
=
Long diameter + Short diameter
2
8.2. Face defect standard (black spot, stain)
Average diameter Quantity allowed Minimum
of defects A B Tota l distance
less than 0.5 4 4 6 30
less than 0.3 no limit ---
