5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

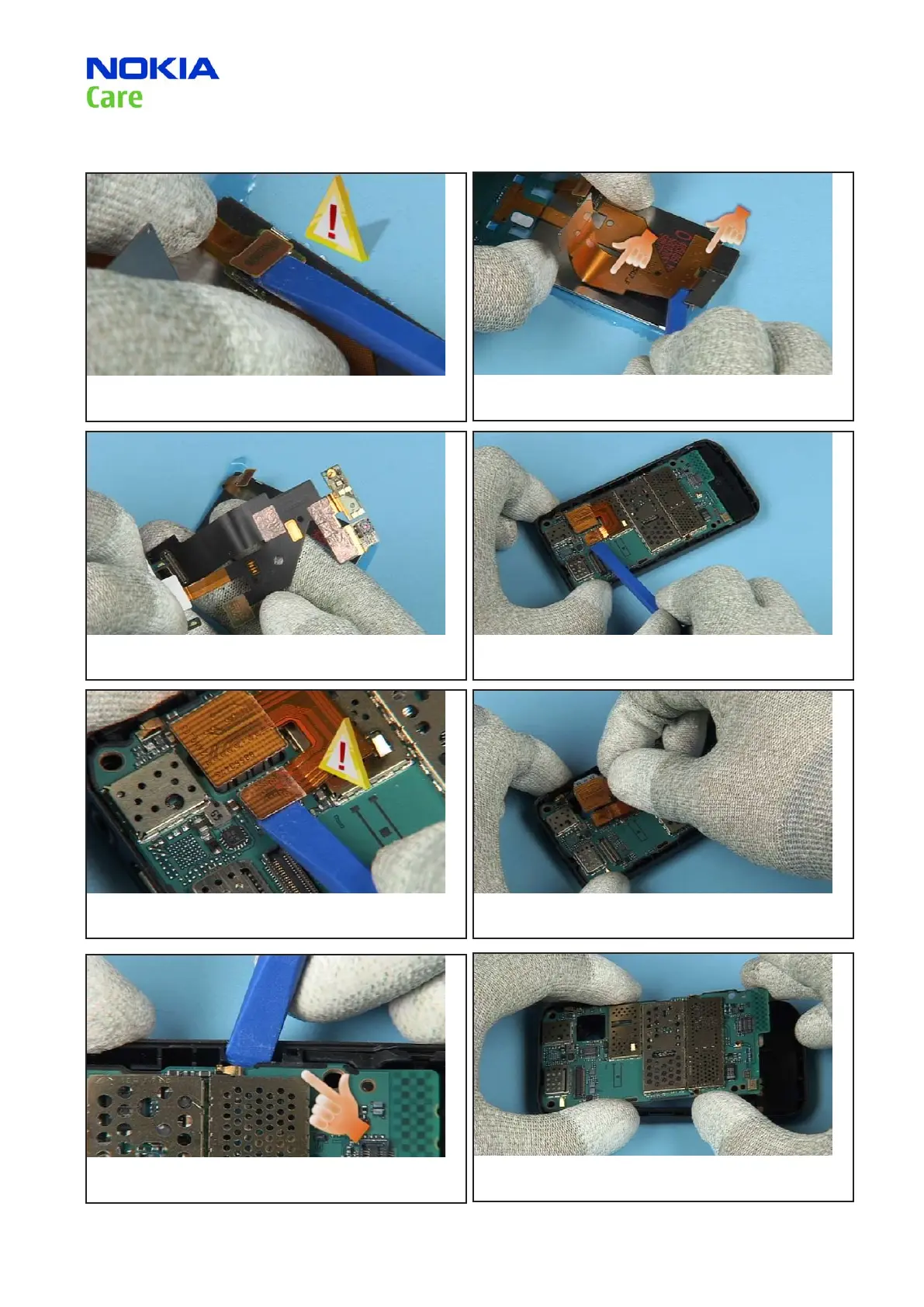

41. Do not apply pressure at the components underneath.
Gently lever up the ex connector.
42. Release the adhesive pads of the TOP FLEX ASSEMBLY,
beginning at this edge. Also release the other shown pads.
43. Keep these adhesives clean if this part should be reused.
Alse remove the adhesive residues on the opponent part.
44. Continue with the lower assembly. Use the SS-93 for
opening the ex connector of the CAMERA FLEX MODULE.
45. Do not apply pressure at the components while opening the
ex connector.
46. Lift out the CAMERA FLEX MODULE now.
47. Gently unlock this clip of the D-COVER on both sides of the
ENGINE MODULE.
48. Lift out the ENGINE MODULE.
