14
CONFIDENTIAL
Copyright © 2007-2008 NOKIA. All rights reserved.
5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

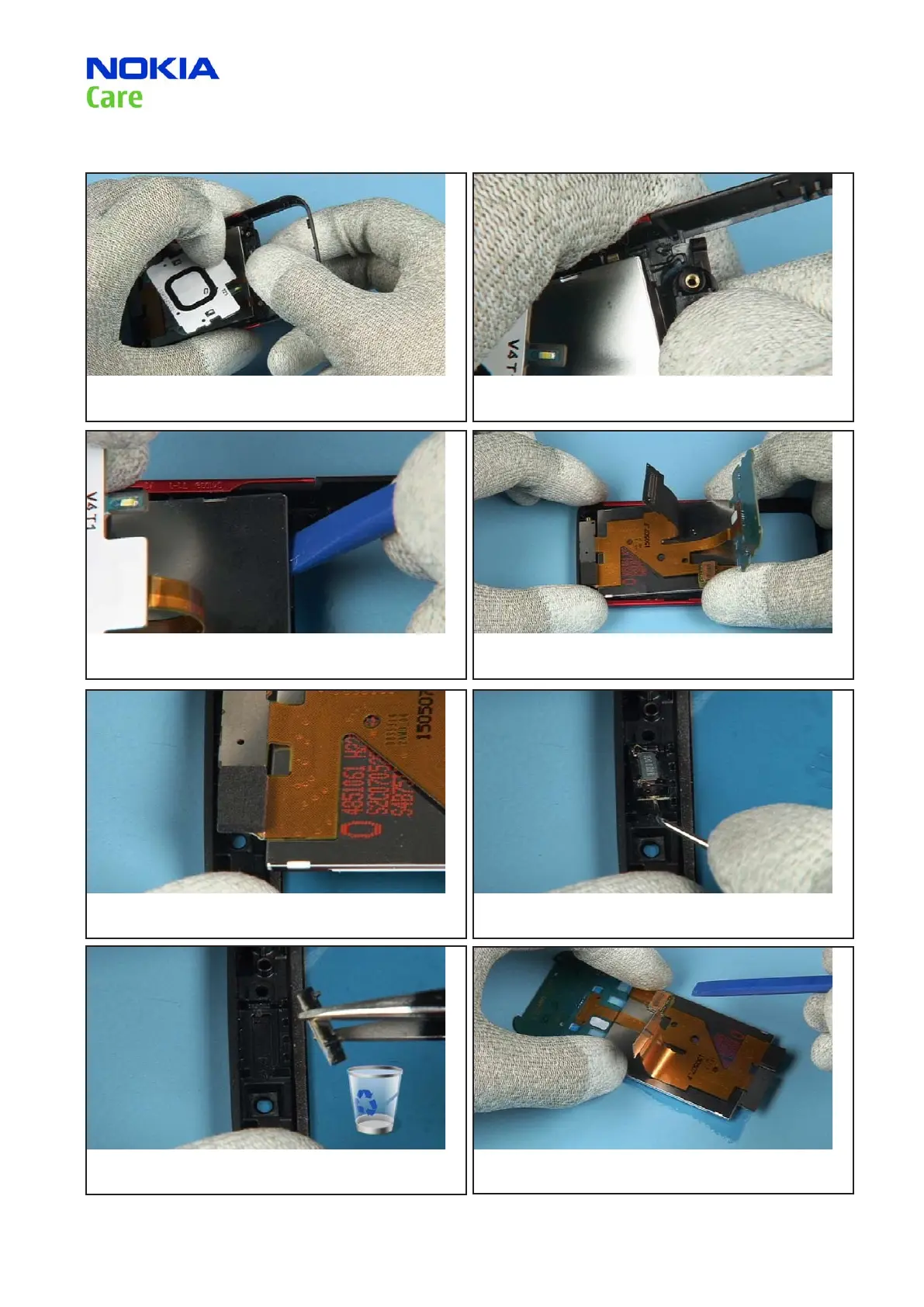

33 . Now the NAVI SLIDER MODULE can be reached. Gently pull it
down...
34. ...until this large clip was released partly. Now pull it out
sidewards to release the clip completely.
35. Release the LCD from its sealing with the SS-93 partly. 36. Lift up the LCD together with the TOP FLEX ASSEMBLY.
37. Gently release the CMOS CAMERA MODULE and the
counterpart of the EARPIECE. Remove the assembly.
38. Partly ease out the EARPIECE with the dental pick.
39. Now pull it out with tweezers. Discard it, do not use it
again.
40. Place the assembly on the face of the LCD. Use the SS-93 for
opening the ex connector.
