5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

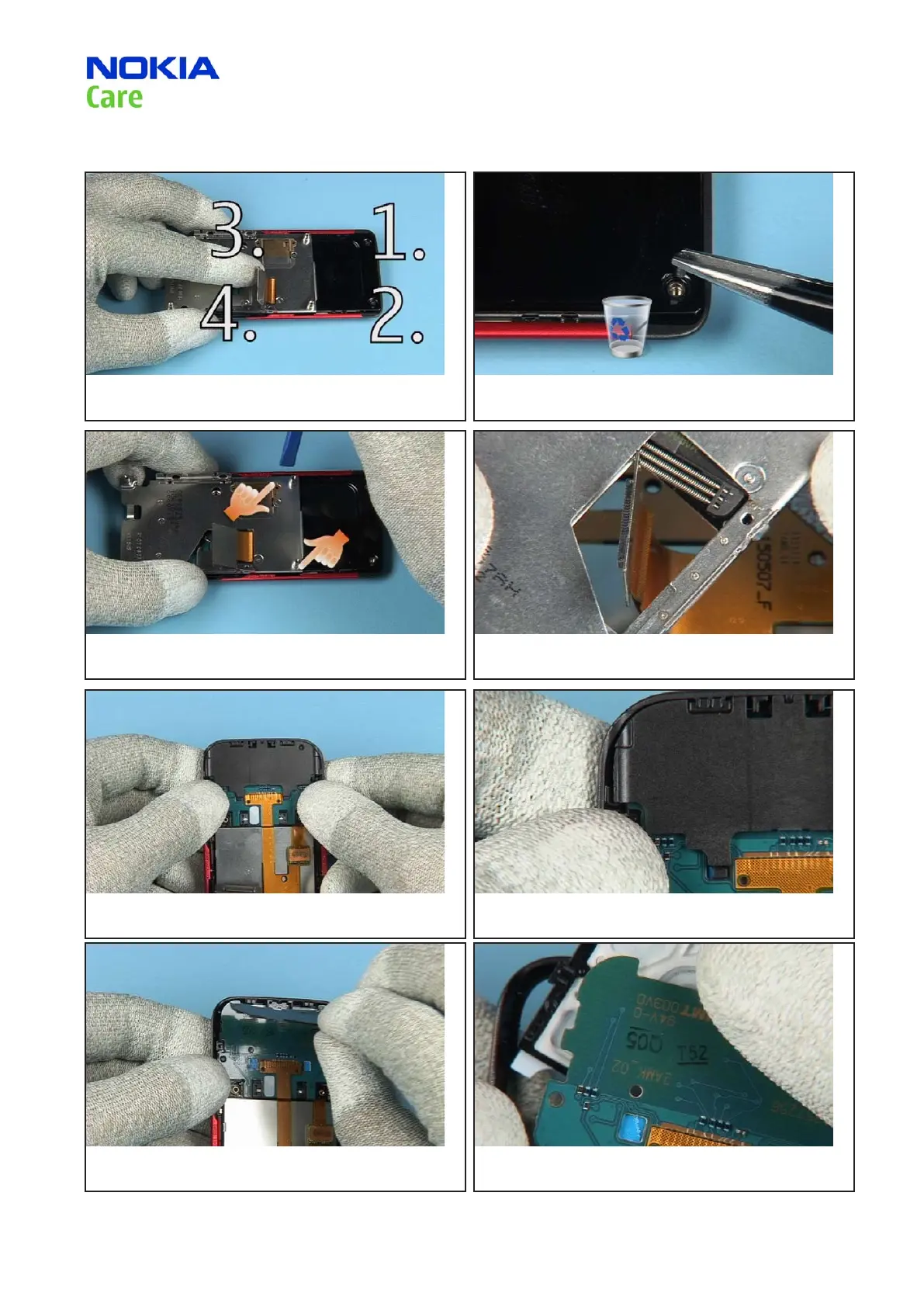

25. Unscrew these 4 screws in the order shown. 26. Discard these screws. Do not use them again.
27. Gently release the latches of the A-COVER on both sides. 28. Lift up and shift open the SLIDE MODULE ASSEMBLY partly.
Slot through the ex foil connector.
29. Carefully bend the A-COVER on both sides... 30. ...until the clips of the NAVI KEYMAT SUPPORT are released.
31. Lift up the NAVI KEYMAT SUPPORT. 32. Lift up the TOP PWB. The TOP KEYMAT ASSEMBLY can be
removed now.
