21
CONFIDENTIAL
Copyright © 2007-2008 NOKIA. All rights reserved.
5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

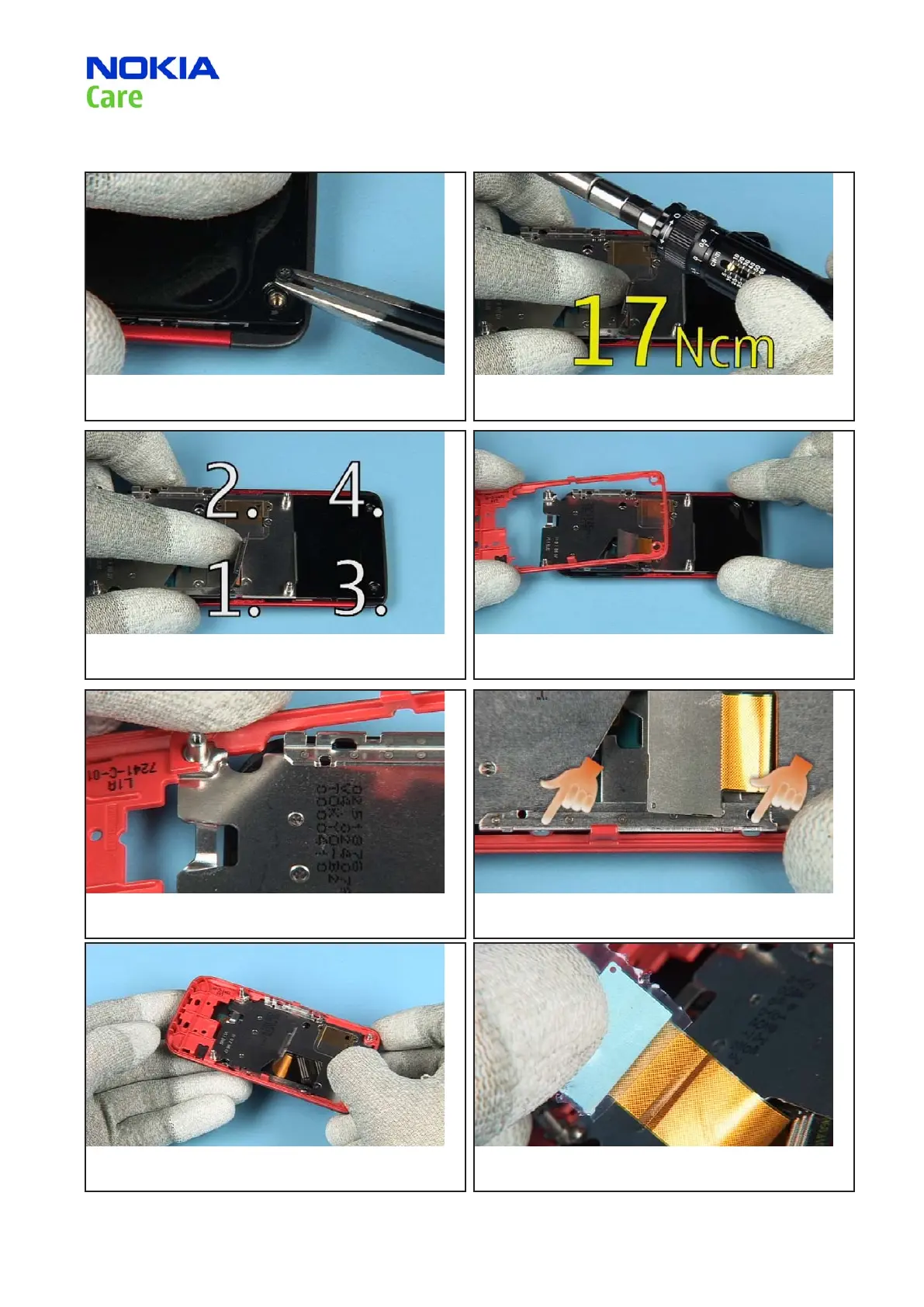

33. Insert the 4 new screws. 34. Set the correct torque.
35. Tighten the screws in the order shown. 36. Fit the LOWER BEZEL ASSEMBLY, beginning at the shown side.
37. Align it, beginning at the treads. 38. Click the metal snaps into their places, also on the opposite
side.
39. Check the functionality of the slider before continuing. 40. Fit a piece of adhesive tape to the connector as shown.
