5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

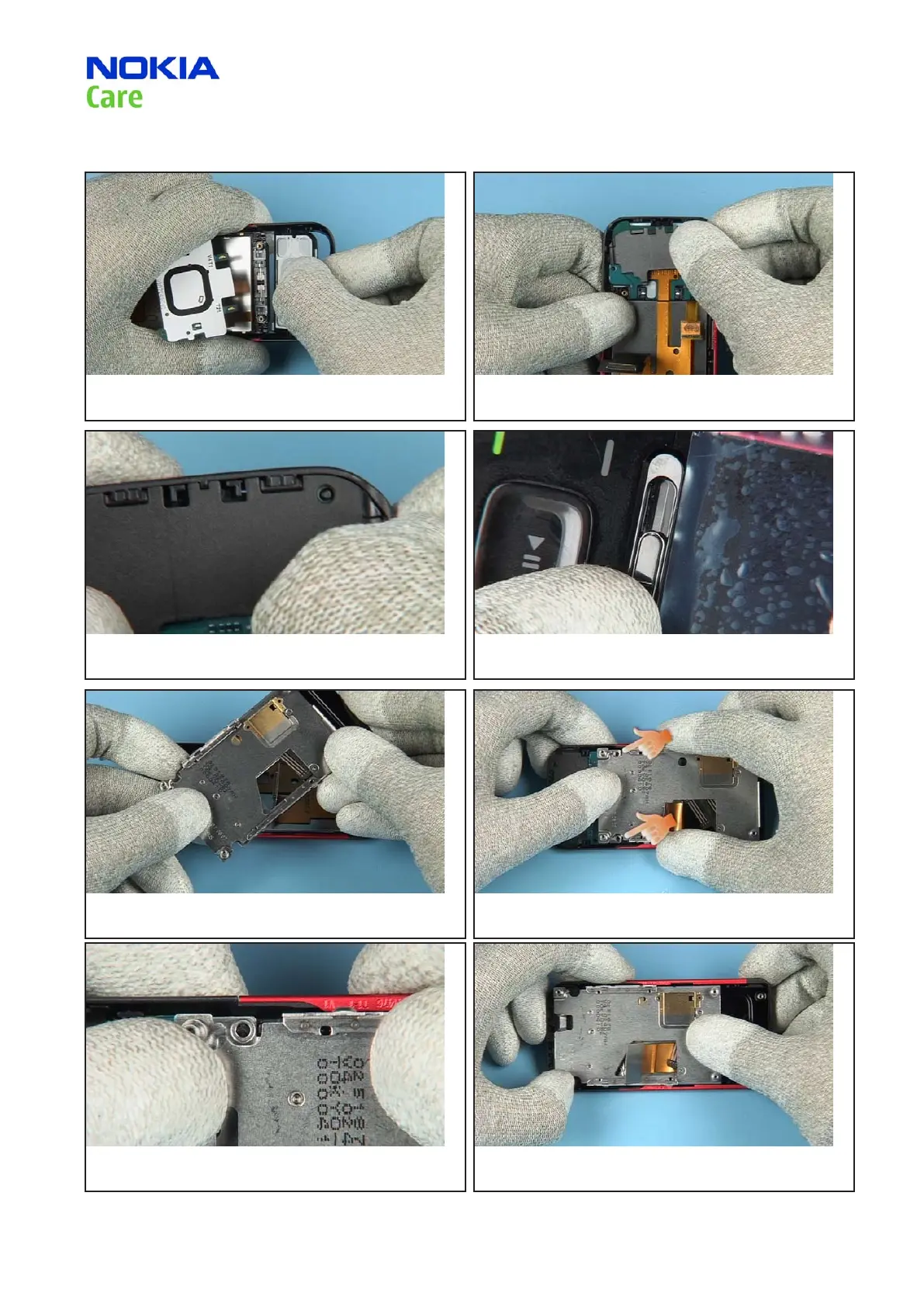

25. Fit the TOP KEYMAT ASSEMBLY into the A-COVER. 26. Place the NAVI KEYMAT SUPPORT.
27. Click the plastic clips into their places. 28. Check the correct functionality of the NAVI SLIDER before
continuing.
29. Shift open the SLIDE MODULE ASSEMBLY partly in order to
reach the maximum recess. Slot the ex through this recess.
30. Align the SLIDE MODULE ASSEMBLY to these guides exactly...
31. ...and click the clips into their places evenly. 32. Shift open the SLIDE MODULE ASSEMBLY.
