19
CONFIDENTIAL
Copyright © 2007-2008 NOKIA. All rights reserved.
5610 Xpress Music RM-242/RM-279/RM-358/RM-359
Page
(24) ISSUE 2
Service Manual Level 1&2

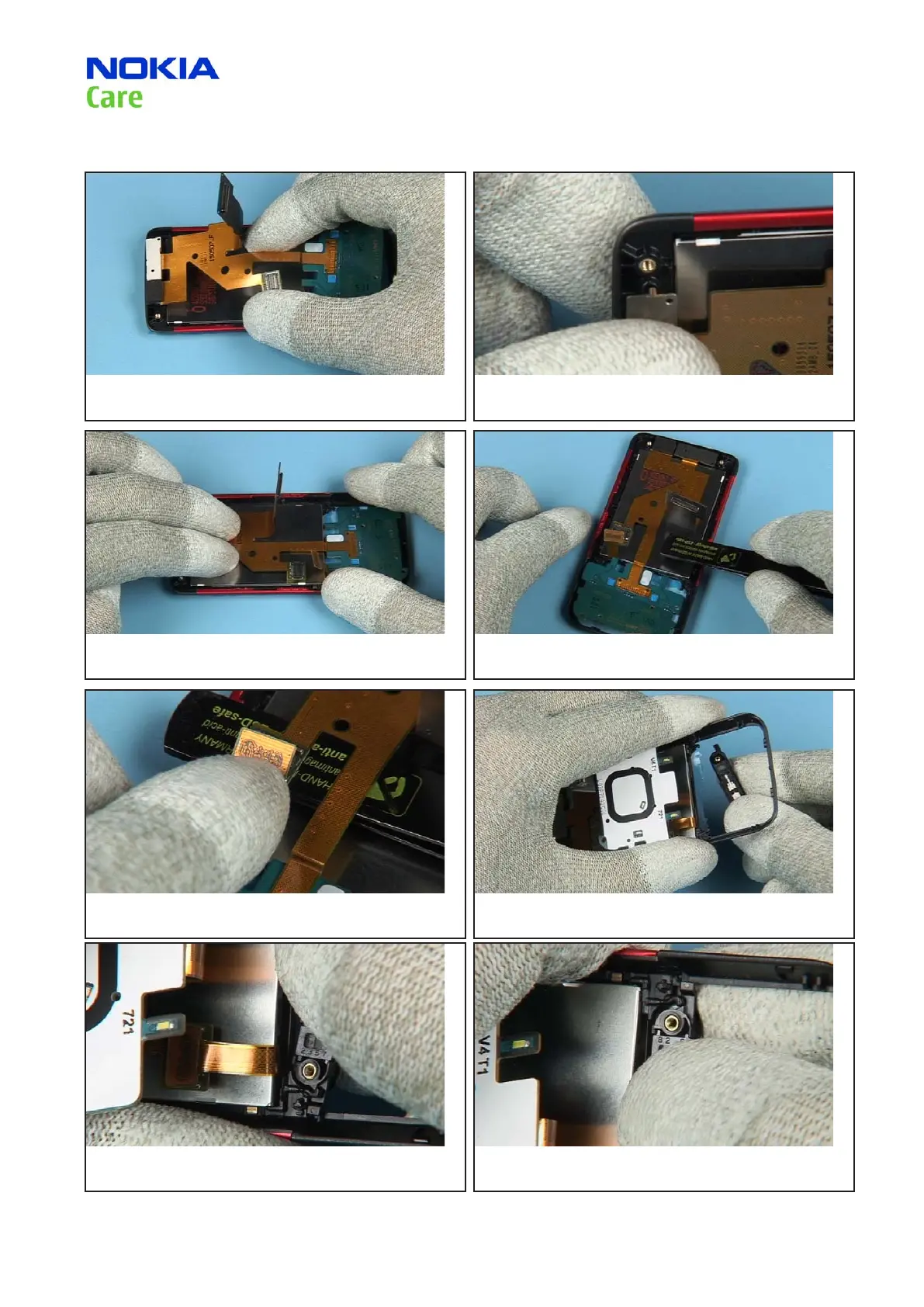

17. Place the TOP FLEX ASSEMBLY. Remove the protective lm
before if this part is new.
18. Slightly push the CMOS CAMERA and this guide pin into its
place.
19. Smooth down the TOP FLEX ASSEMBLY evenly. 20. Insert the metal tweezers under the ex foil.
21. Close the ex foil connector. 22. Insert the NAVI SLIDER...
23....beginning from the shown side rst. 24. Click the clip on the opposite side into its place.
