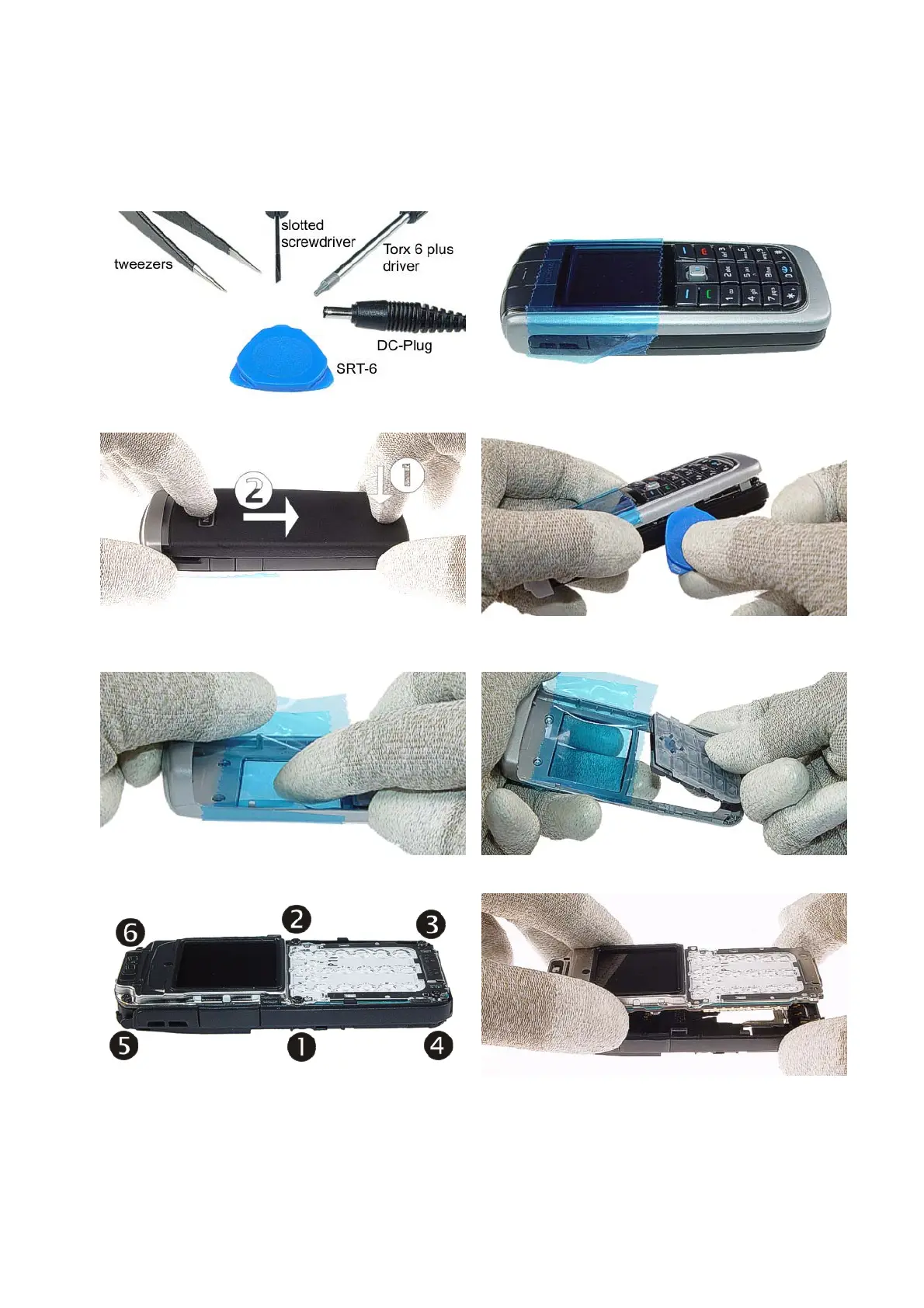

9. DISASSEMBLY INSTRUCTIONS
1.) Needed tools for disassembly.
2.) Protect the Window with a protective film.
3.) Remove the C-Cover and protect the Camera
Window.
4.) Unlock the side snaps with SRT-6 when opening the
A-Cover.
5.) Also protect the inner side of the Window with a
protective film.
6.) Remove the Keymat.
7.) Unscrew the six Torx Plus
®
size 6 screws. For
assembly, the reverse order and a Torx Plus
®
driver
with a torque of 28Ncm has to be used.
8.) Take the Engine Module from the B-Cover.
