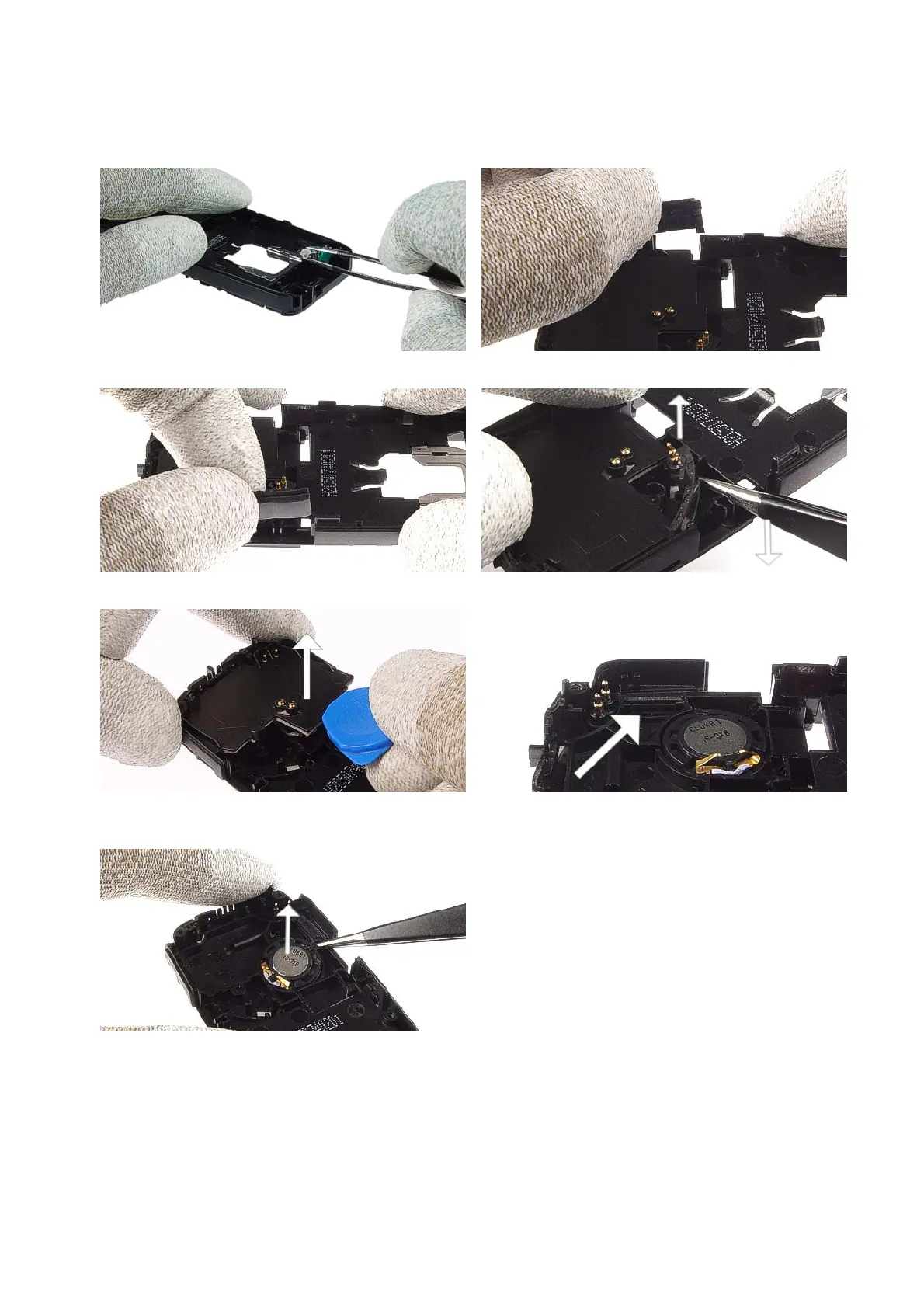

17.) Lever out the Vibra Motor.
18.) Remove the POC Key.
19.) Remove the Volume Key.
20.) Remove the Bluetooth Antenna with tweezers.
21.) First unlock this side of the IHF Lid with SRT-6.
22.) Note, that the IHF Net stays in place during
disassembly.
23.) Release the IHF Speaker carefully with a slotted
screwdriver. Always use a new Speaker Adhesive when
assembling.
Service Manual 6021 Level 1&2 Copyright © 2005 NOKIA Corporation. All rights reserved.
