Nokia 7310 Supernova Service Manual

7
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
7310 Supernova RM-378/RM-379
Page (14)
ISSUE 1
Service Manual Level 1&2
See corresponding ITEM/CIRCUIT REF in the Spare Parts Service Bulletins on NOL.
EXPLODED VIEW8.
= only available as
assembly
Ver. 3.0
= These parts can
not be reused
after removal.

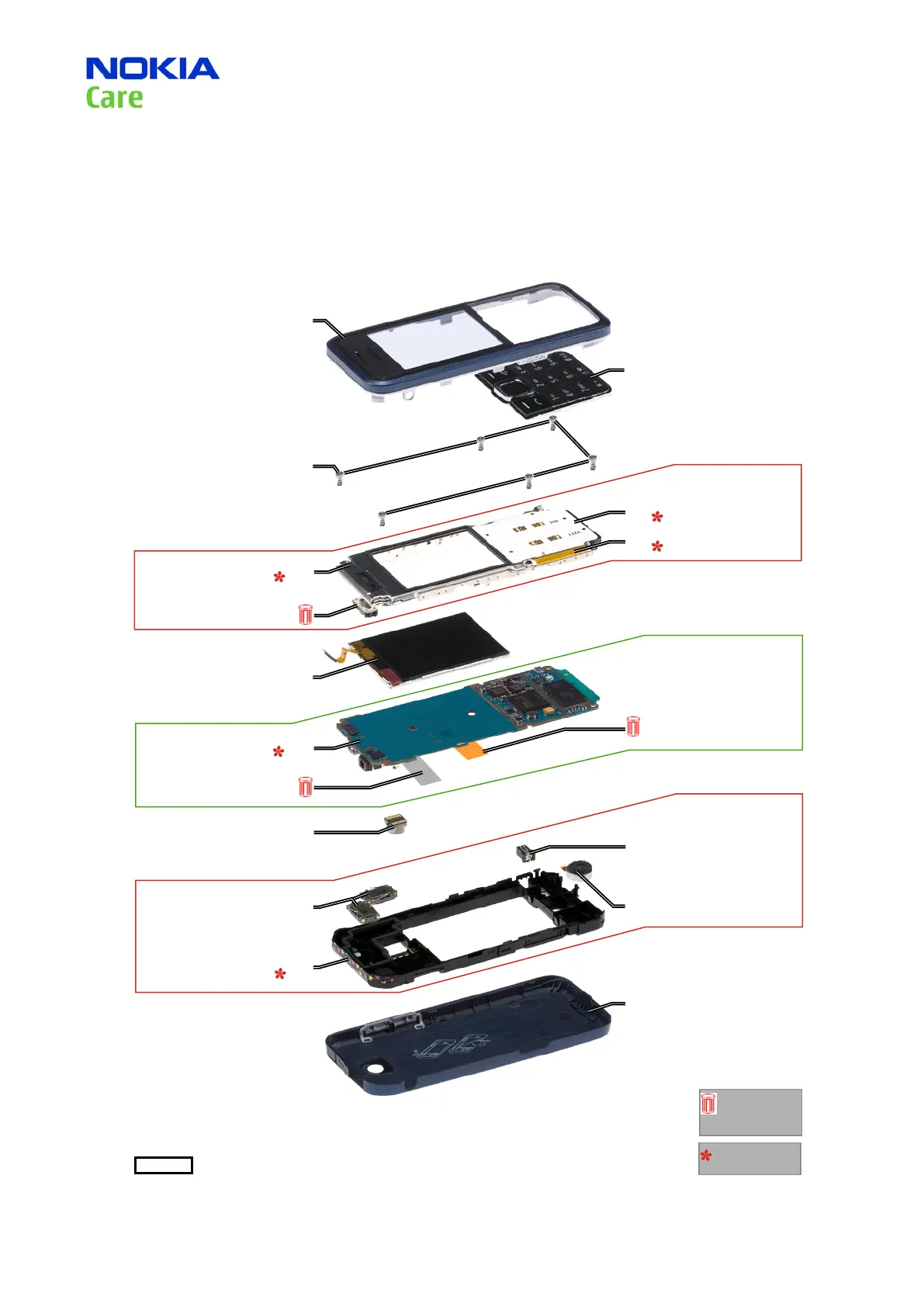

7310 Supernova RM-378/RM-379 EXPLODED VIEW
A3=B-COVER ASSY
(I0013-I0016)
A1=UI ASSY
(I0004-I0007)
A2=LIGHT SWAP PACKAGE
(I0009-I0011)
(LEVEL 3&4 ONLY)
A-COVER ASSY
I0001
KEYMAT
I0002
LIGHT SWAP PWB (A2)
I0009
CONN CHR DIA 2.0mm (A3)
I0014
VIBRA MOTOR JENNA (A4)
I0015
TYPE LABEL (A2)
(LEVEL 3&4 ONLY)
I0010
DOMESHEET (A1)
I0004
C-COVER ASSY
I0017
6xSCREW M1.4x5 REMFORM TORX PLUS 6IP
I0003
UI SHIELD ASSY (A1)
I0006
EARPIECE (A1)
I0007
LCD AM 240x320
I0008
CAMERA MODULE 2MP SMIA65 UXGA
I0012
2xIHF SPEAKER 8x12 8R
REGTANGULAR (A3)
I0013
B-COVER (A3)
I0016
ESD LABEL (A2)
(LEVEL 3&4 ONLY)
I0011
UI FLEX ASSY (A1)
I0005
