Nokia 7310 Supernova - Assembly Hints 1

14
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
7310 Supernova RM-378/RM-379
Page (14)
ISSUE 1
Service Manual Level 1&2
ASSEMBLY HINTS13.

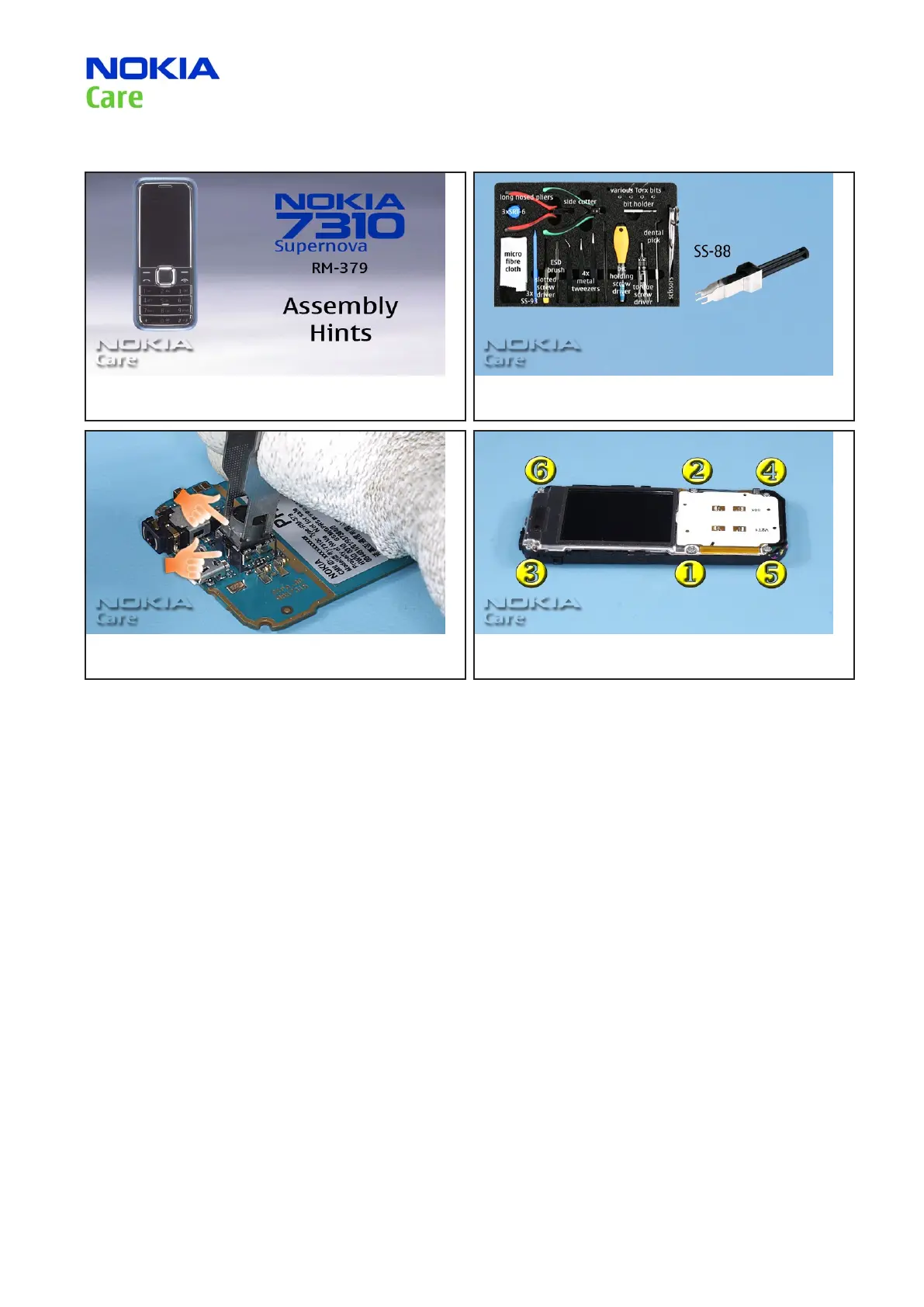

1. Nokia 7310 Supernova Assembly Hints. 2. You will need the Standard Tool Kit v2 and the Camera
Removal Tool SS-88.
3. Pay attention to the correct position when tting the Camera
Module.
4. Tighten the screws to the torque of 21Ncm in the order
shown.
