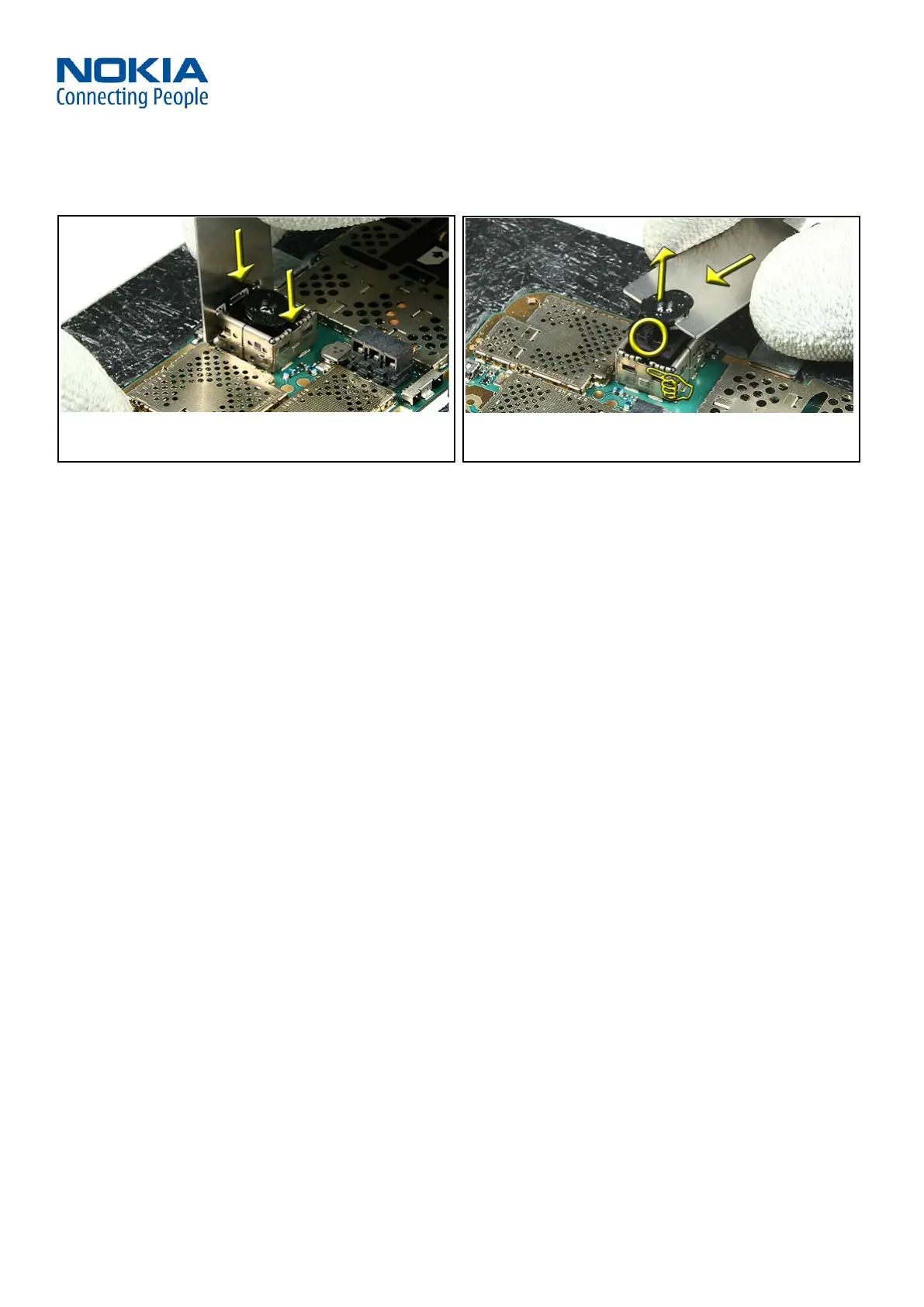

41. Stick the SS-42 into the marked positions of the camera
connector to release the snaps.
42. Use the back side of the SS-42 to remove the CAMERA
MODULE. For assembling note the guide pin of the CAMERA
MODULE and slot of the connector (white fingers).
