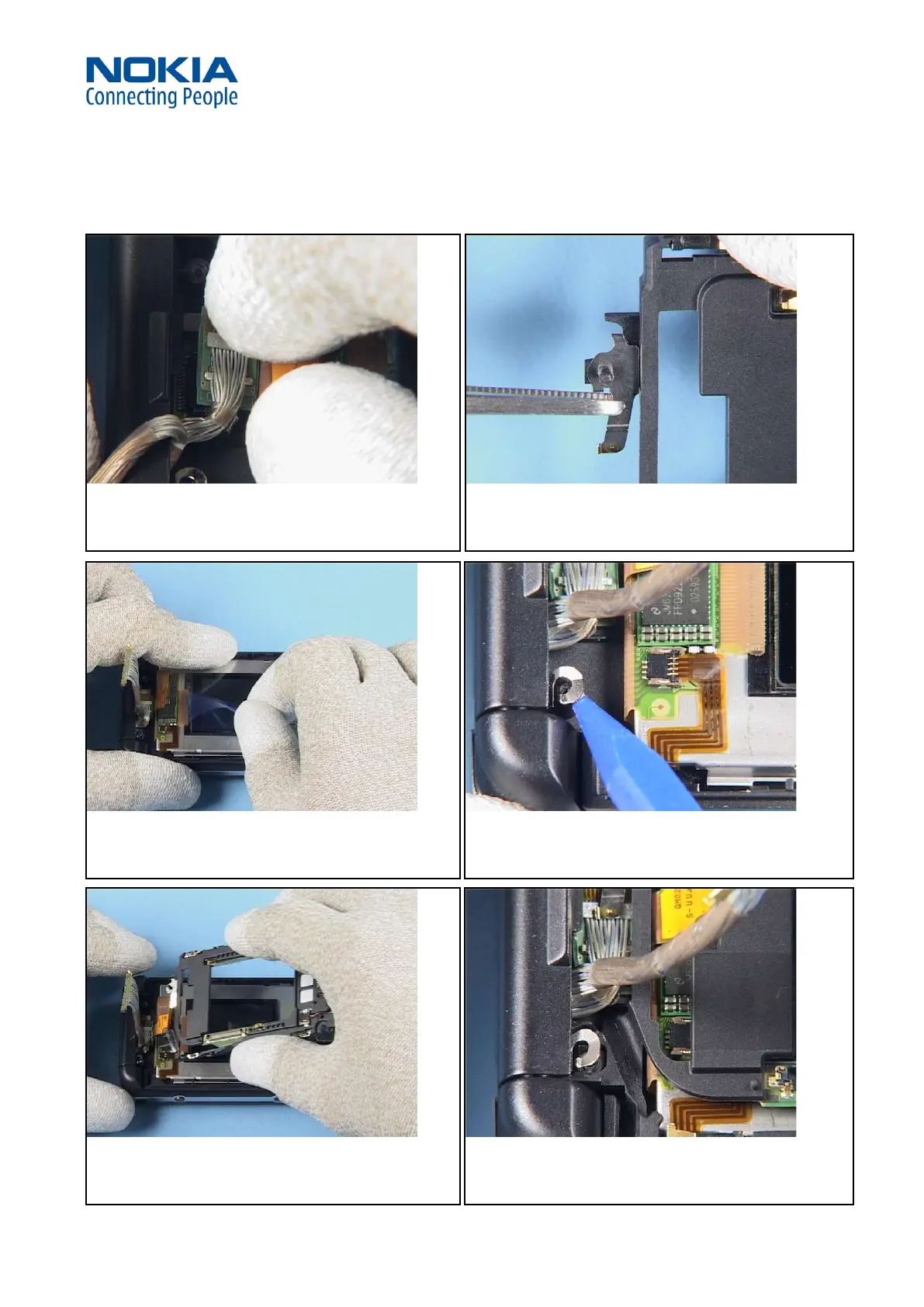

7. Close the display connector.
8. Fit the COAX PWB GROUNDING SPRING to the UPPER C-COVER.
9. Now, remove the protection lm.
10. Lift the metal tab as shown…
11. Fit the UPPER C-COVER ASSY.
12. Pay attention to the right position of the metal tab. It must
be placed over the screw hole of the UPPER C-COVER.
