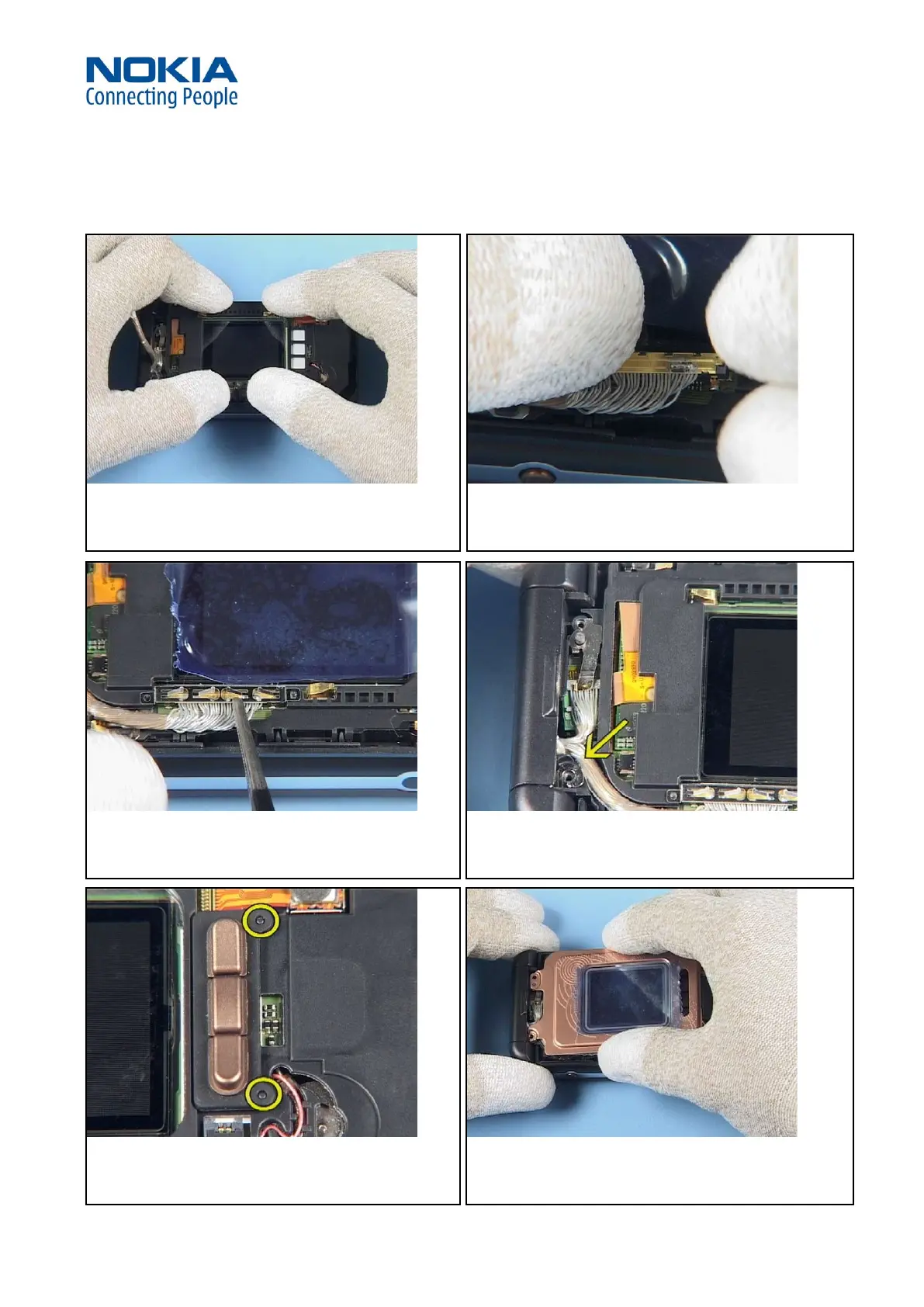

13. Secure the UPPER C-COVER ASSY by pressing it into its
position.
14. After covering the display, gently close the COAX CONNECTOR.
15. Place the COAX GROUNDING SPRING over the connector.
16. Check the right position of the COAX CABLE.
17. Fit the CUI KEYS and check the right position.
18. Align the SECOND DISPLAY FRAME ASSY with the UPPER C-
COVER.
