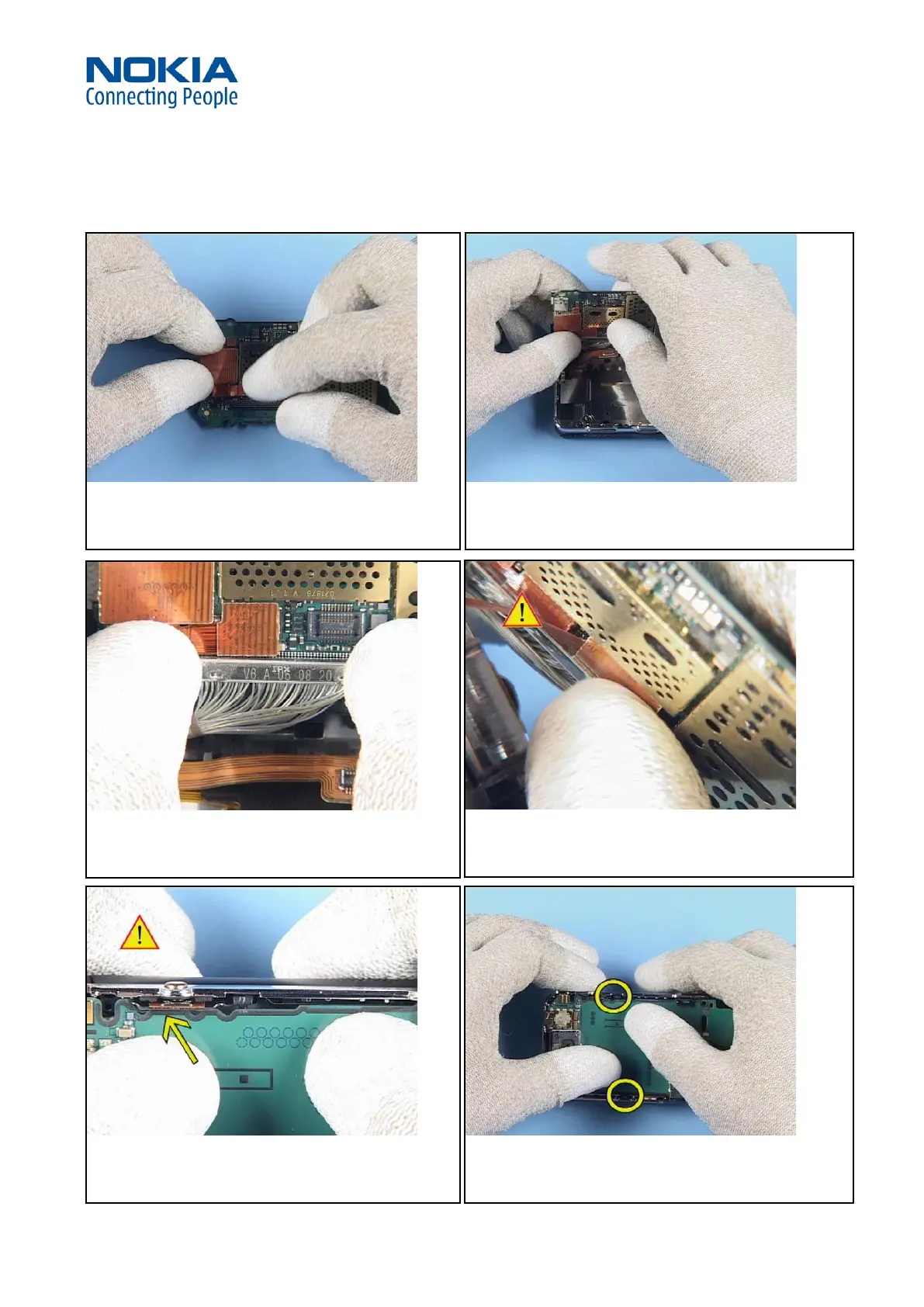

7. Close the MAIN CAMERA connector.
8. Lift up the PWB and hold it as shown...
9. Align the COAX CONNECTOR with the PWB CONNECTOR and
close it carefully.
10. Connect the LOWER FLEX CONNECTOR to the PWB. Avoid to
strain at the cords.
11. Be sure that the cords are not squeezed.
12. Now, secure the PWB into its position.
