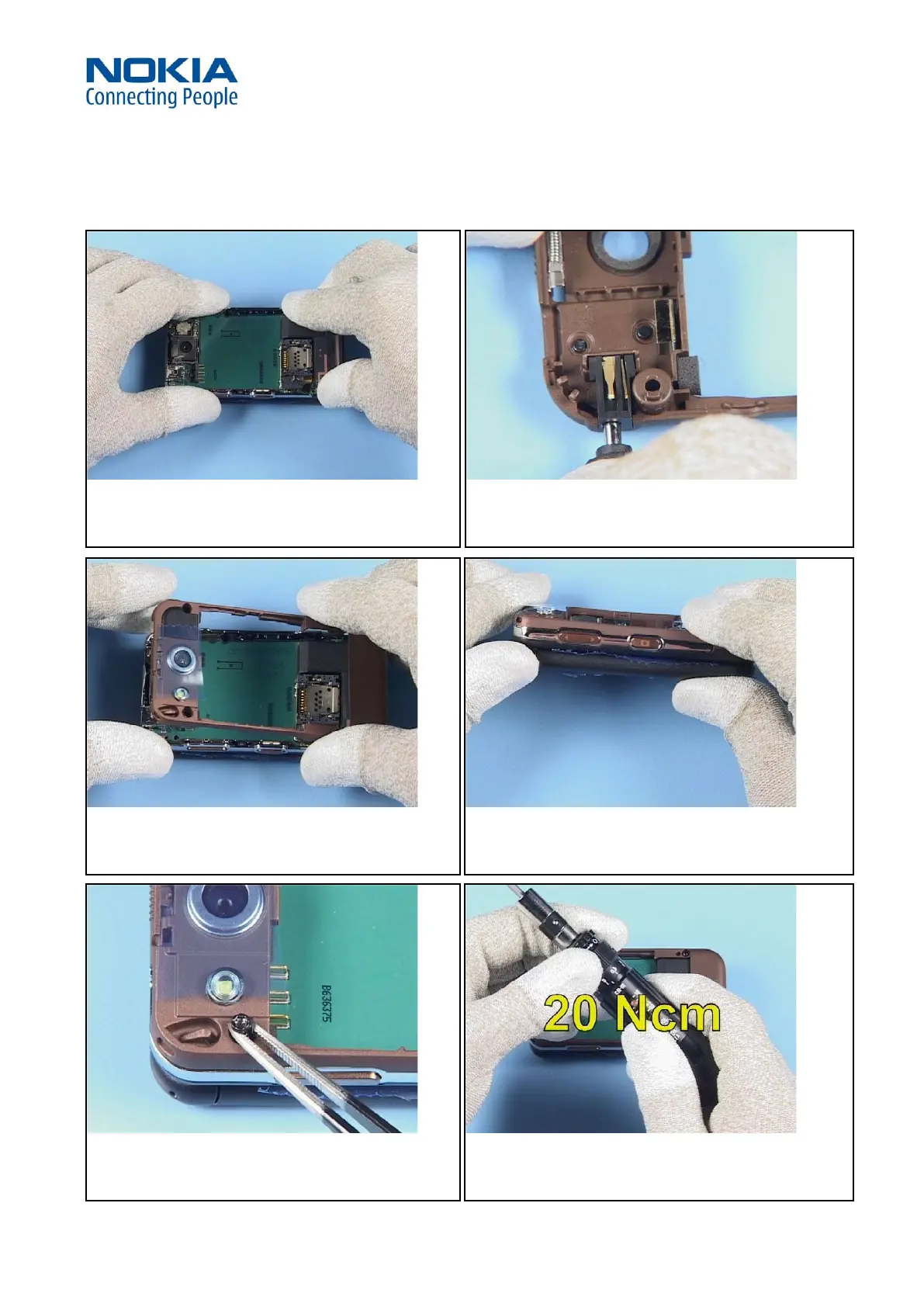

13. Fit the ANTENNA ASSY.
14. Insert the DC-Jack paying attention to the spring contacts.
15. Align the LOWER B-COVER with the LOWER A-COVER…
16. ... and gently press the covers together.
17. Insert the screws.
18. Set the torque driver to the torque of 20 Newton centimeter.
