14
Nokia A032 Getting Started
Positioning the antenna
The Nokia C950 Omnidirectional Antenna
radiates radio frequency energy in a 360 degree
pattern around its axis. The Nokia C950 has

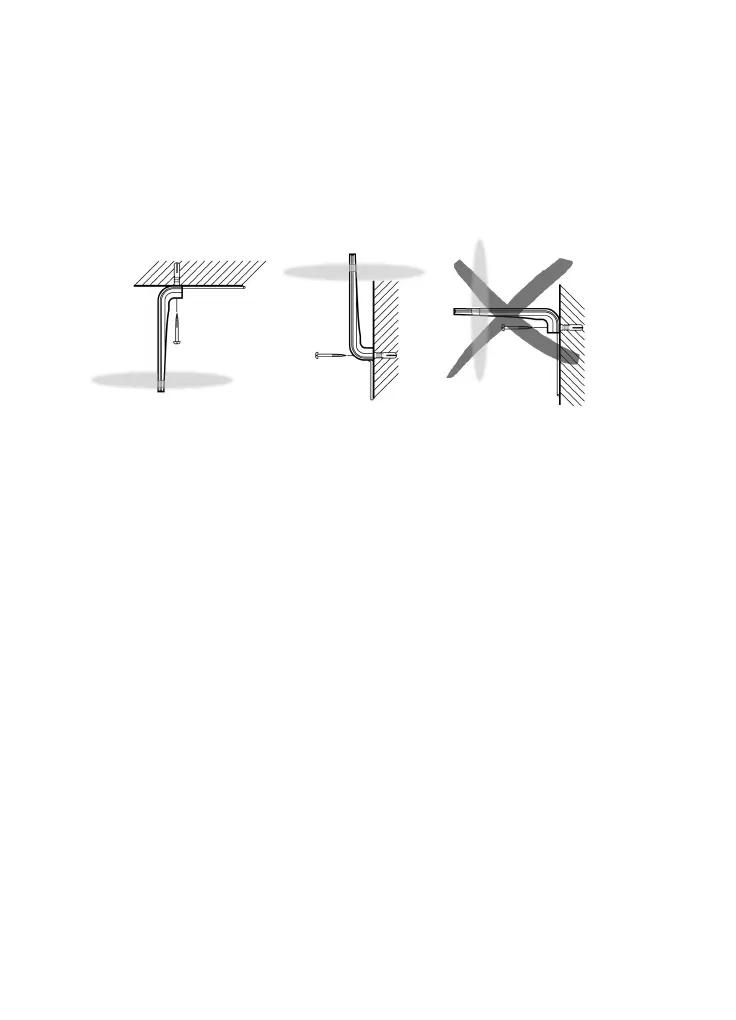

been designed for indoor use – it can be
mounted vertically on a ceiling, wall, or on a
table with a mounting screw:
Do not mount the antenna in a horizontal
position, unless you intend to create a vertical
coverage area that will have as much height as
possible, for example in a stairwell.
