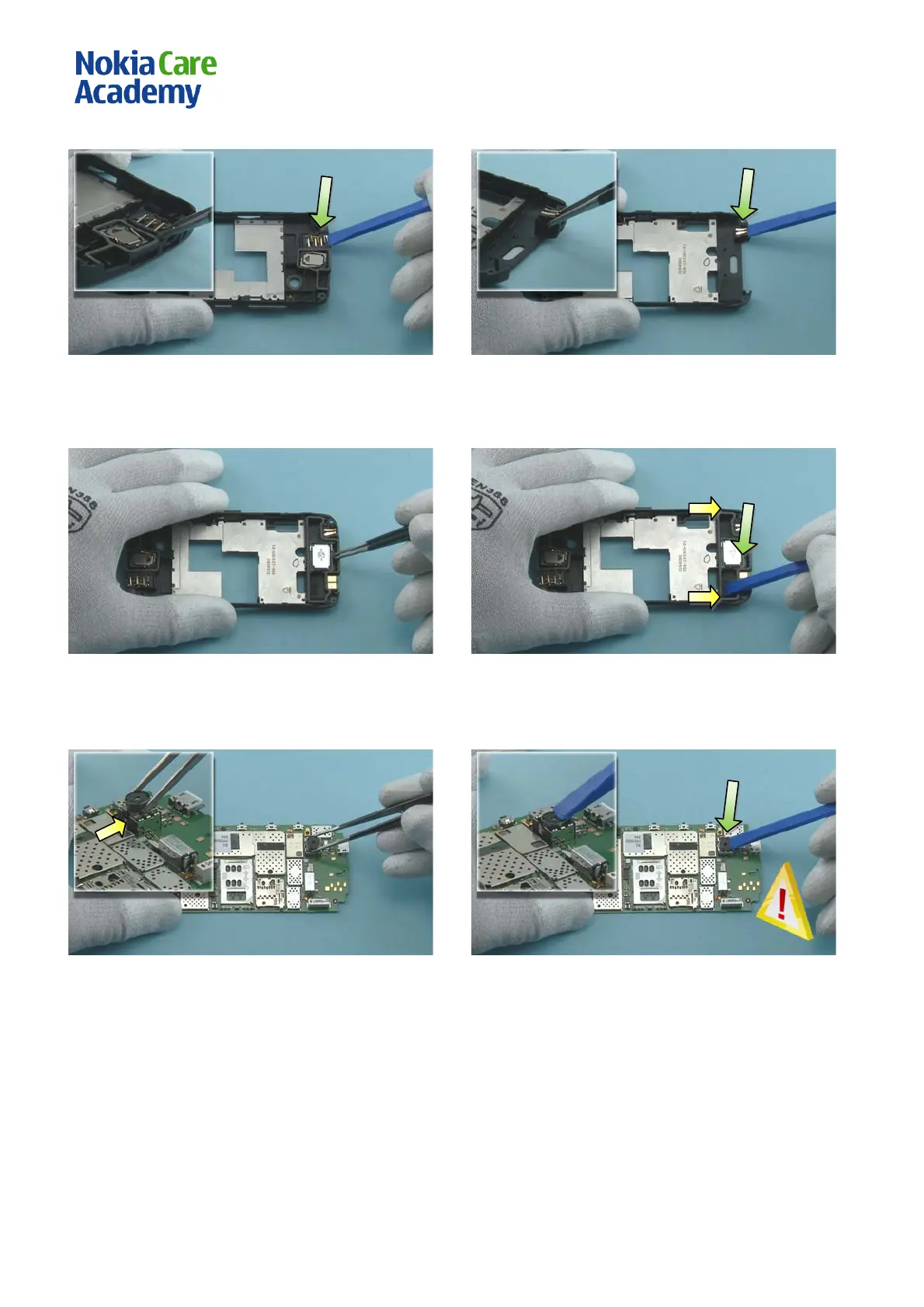

7. Place the AV JACK with the tweezers to its place
and push it down with the SS-93 to lock it in its
place.
8. Place the DC JACK with the tweezers and push it down
with the SS-93 to lock it in its place.
9. Place the ANTENNA MODULE with the tweezers.
10. Press ANTENNA MODULE down from the shown
places with the SS-93 to lock up the clips.
11. Place the CAMERA MODULE with the tweezers.
Make sure that the guiding notch is correctly
placed.
12. Press the CAMERA MODULE down with the SS-93. Be
careful not to damage the lens.
