Nokia C5-03 Service Manual

Nokia C5-03
RM-697, RM-
719
Service Manual Level 1&2
19
Co nf id e nt ial | Co p y rig ht © 2011 Nokia | A ll rights reserved
V e rs io n 3 .0

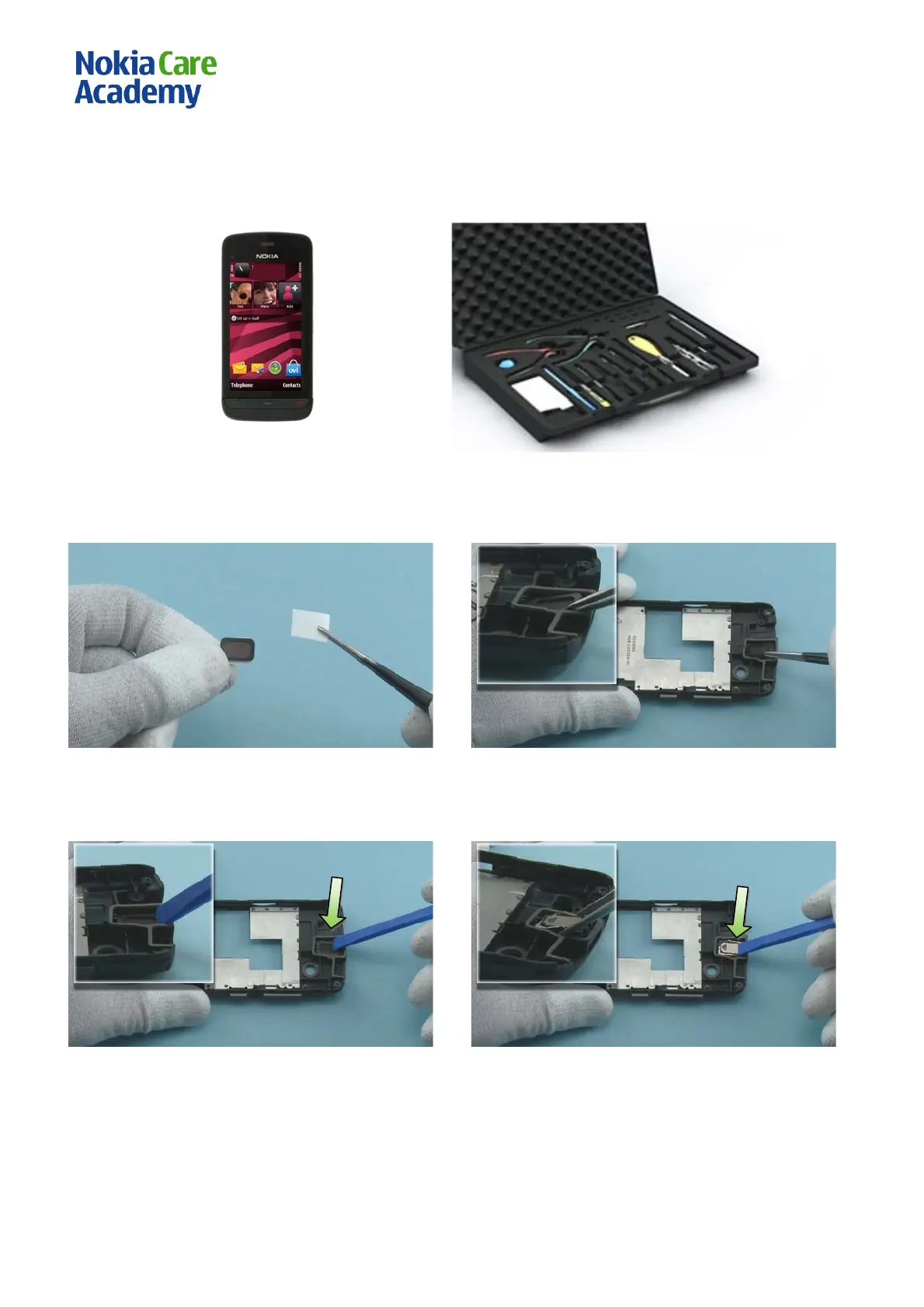

10. ASSEMBLY
1. Nokia C5-03 assembly.
2. For assembling you need the Nokia Standard Toolkit
version 2.
3. Remove the protective film from the EARPIECE
ADHESIVE.
4. Place the EARPICE ADHESIVE to its place with the
tweezers.
5. Press down with the SS-93 to activate the
EARPIECE ADHESI VE.
6. Place the EARPIECE with the tweezers and push it
down with the SS-93 to activate the adhesive.

Nokia C5-03 Specifications

General

Display	TFT resistive touchscreen, 16M colors
Resolution	360 x 640 pixels, 3.2 inches (~229 ppi pixel density)
Operating System	Symbian OS v9.4, Series 60 rel. 5
Processor	600 MHz ARM 11
RAM	128 MB
Main Camera	5 MP
Video	480p@15fps
Battery	Removable Li-Ion 1000 mAh battery (BL-4U)
Talk time	Up to 11 h 30 min (2G) / Up to 4 h 30 min (3G)
Music play	Up to 35 h
Dimensions	105.8 x 51 x 13.8 mm, 65 cc (4.17 x 2.01 x 0.54 in)
Weight	93 g (3.28 oz)
Network	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, October
Status	Discontinued
SIM	Mini-SIM
GPU	No
Card slot	microSD, up to 16 GB (dedicated slot), 2 GB included
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g
Bluetooth	2.0, A2DP
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Sensors	Accelerometer, proximity
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Internal Storage	40 MB
Stand-by	Up to 576 h (3G)
3G bands	HSDPA 900 / 2100
GPS	Yes, with A-GPS
Colors	Black, Pink
