Nokia C5-03 Service Manual

Nokia C5-03
RM-697, RM-
719
Service Manual Level 1&2
6
Co nf id e nt ial | Co p y rig ht © 2011 Nokia | A ll rights reserved
V e rs io n 3 .0

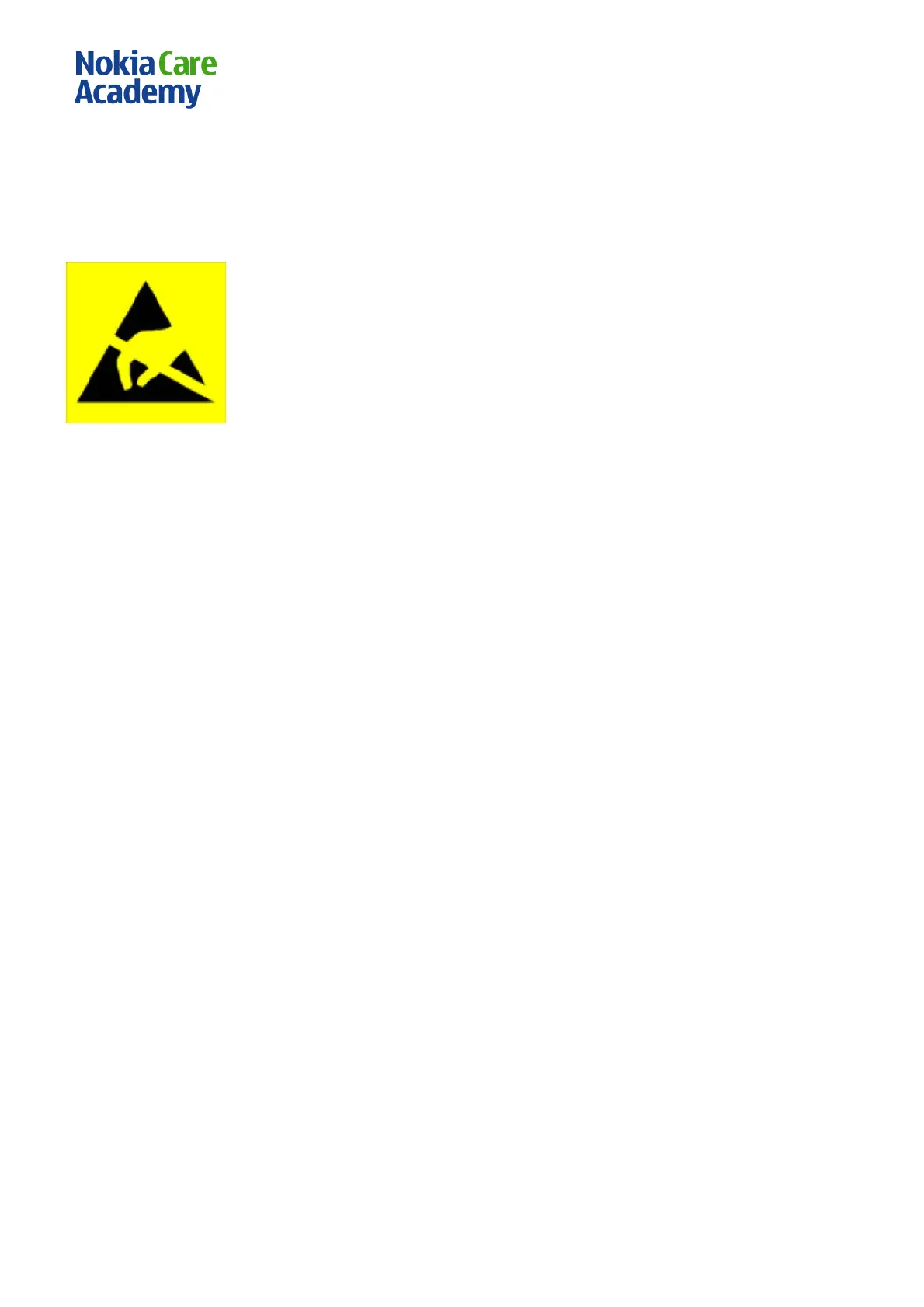

3. ESD PROTECTION
Nokia requires that service points have sufficien t ESD protection (against sta tic
electricity) when servicing the phone.
Any product of which the covers are removed must be handled with ESD
protection. The SI M card can be replaced without ESD protection if the product
is otherwise ready for use.
To replace the covers ESD protection must be applied.
All elec tronic parts of the product are susceptible to ESD. Resis tors, too, can be
damaged by static elec tricity discharge.
All ESD sensitive parts must be packed in metallized protective bags during
shipping and handling outside any ESD Protected Area (EPA).
Every repair action involving opening the product or handling the product
components must be done under ESD protection.
ESD protected spare part packages MUST NOT be opened/closed out of an ESD
Protected Area.
For more information and local requirements about ESD protection and ESD
Protected Area, contact your local Nokia After Market Services representative.

Nokia C5-03 Specifications

General

Display	TFT resistive touchscreen, 16M colors
Resolution	360 x 640 pixels, 3.2 inches (~229 ppi pixel density)
Operating System	Symbian OS v9.4, Series 60 rel. 5
Processor	600 MHz ARM 11
RAM	128 MB
Main Camera	5 MP
Video	480p@15fps
Battery	Removable Li-Ion 1000 mAh battery (BL-4U)
Talk time	Up to 11 h 30 min (2G) / Up to 4 h 30 min (3G)
Music play	Up to 35 h
Dimensions	105.8 x 51 x 13.8 mm, 65 cc (4.17 x 2.01 x 0.54 in)
Weight	93 g (3.28 oz)
Network	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
GPRS	Class 32
EDGE	Class 32
Announced	2010, October
Status	Discontinued
SIM	Mini-SIM
GPU	No
Card slot	microSD, up to 16 GB (dedicated slot), 2 GB included
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g
Bluetooth	2.0, A2DP
Radio	Stereo FM radio, RDS
USB	microUSB 2.0
Sensors	Accelerometer, proximity
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Java	Yes, MIDP 2.1
Internal Storage	40 MB
Stand-by	Up to 576 h (3G)
3G bands	HSDPA 900 / 2100
GPS	Yes, with A-GPS
Colors	Black, Pink
