Nokia E72 RM-529 - Assembly Hints

Nokia E72 RM-529 / RM-530
Service Manual Level 1&2
19
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

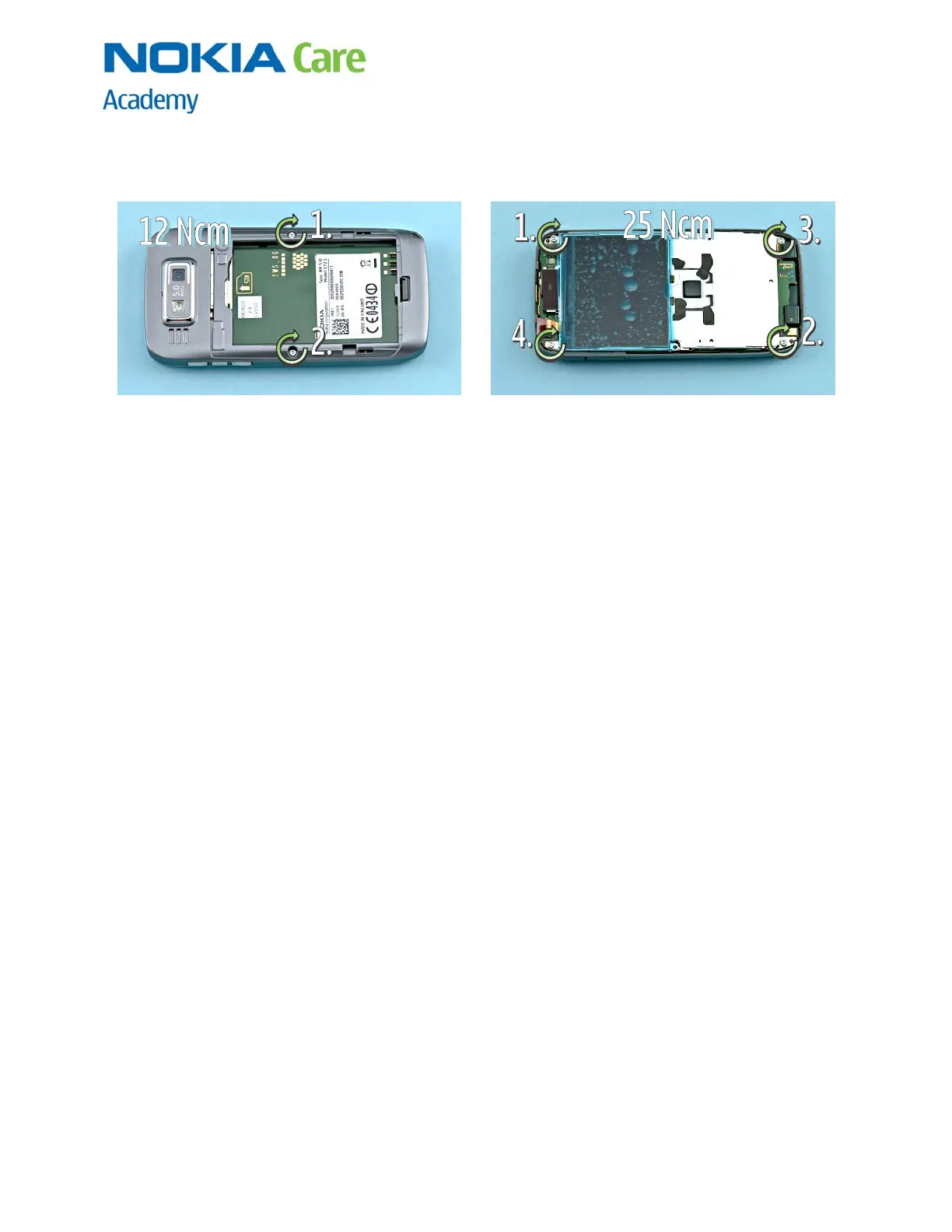

11. ASSEMBLY HINTS
1) Tighten the two TORX + size 4 screws to the
torque of 12 Ncm in the order shown.
2) Tighten the four TORX + size 6 screws to the
torque of 25 Ncm in the order shown.
