Nokia E72 RM-529 - Disassembly Instructions

Nokia E72 RM-529 / RM-530
Service Manual Level 1&2
12
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

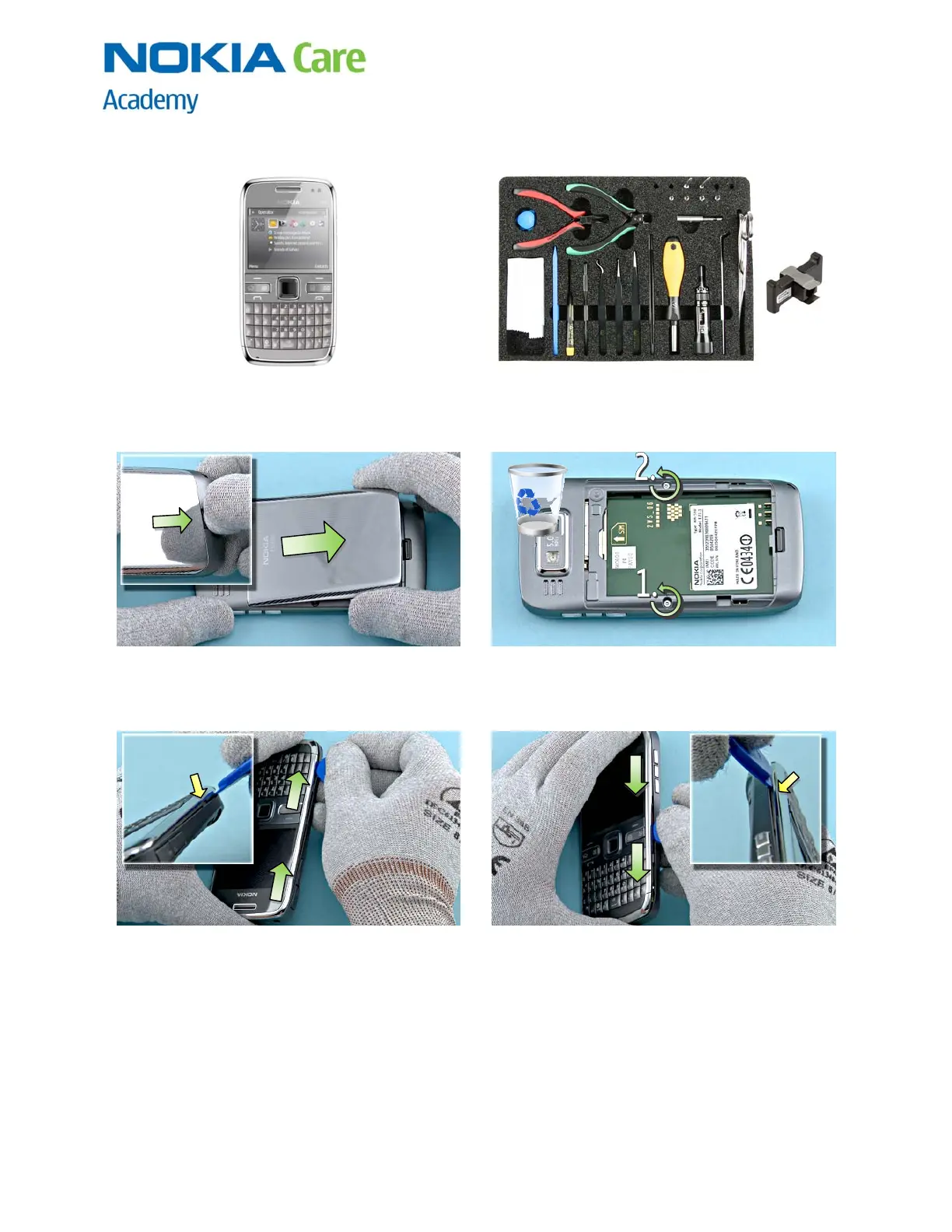

10. DISASSEMBLY INSTRUCTIONS
1) Nokia E72 disassembly. 2) You must use the Nokia Standard Toolkit version
2 + the SS-210 camera removal tool.
3) To open the BATTERY COVER slide the release
button to the direction shown. Then lift up the
bottom end of the BATTERY COVER and remove it to
the shown direction.
4) Unscrew the two TORX + size 4 screws in the
order shown. Do not use them again.
4) Insert the SRT-6 between the A-COVER ASSEMBLY
and the B-COVER ASSEMBLY. Slide it from top to
bottom to release the clip holding the A-COVER
ASSEMBLY.
6) Using the same procedure release also the clip on
opposite side of the A-COVER.
