Nokia E72 RM-529 - Exploded View

Nokia E72 RM-529 / RM-530
Service Manual Level 1&2
9
Confidential
 Copyright © 2009 NOKIA  All rights reserved
Version 1.0 ISSUE 1

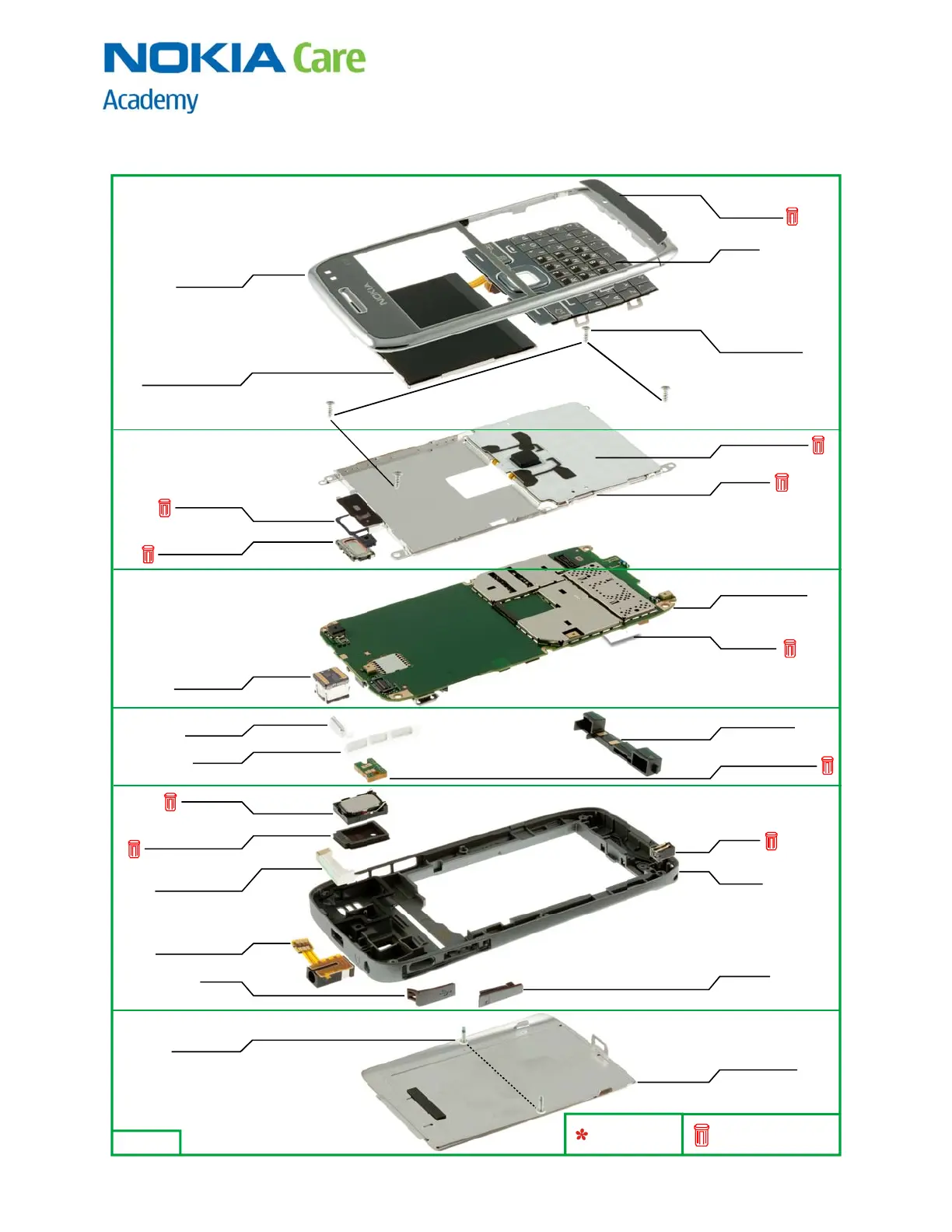

7. EXPLODED VIEW
Only available as
assembly
These parts can not be
reused after removal
Ver. 1.0
A1=UI SHIELD ASSY
(I0005 - I0008)
A2=LIGHT SWAP PACKAGE
(I0010 - I0011)
A3=B-COVER ASSY
(I0016- I0025)
A-COVER ASSY
I0001
LCD AM COG 240x320
I0004
AUDIO GASKET
I0007
POWER KEY
I0017
SIDE-KEYS
I0014
AV-FLEX ASSEMBLY
I0018
SD DOOR
I0016
SCREW 1.8x5.0
I0027
GPS BT WLAN
ANTENNA MODULE
I0024
EARP 32R 8x12x2
I0008
IHF SPEAKER
I0020
IHF SPEAKER GASKET
I0021
CAM MOD 5MP
I0012
OPERATOR
COVER ASSY
I0002
SCREW M1.4X5.0
TORX PLUS 4IP
I0009
KEYMAT
I0003
UI-FLEX ASSEMBLY
I0005
UI SHIELD
I0006
LIGHT SWAP PWB
I0010
BATTERY COVER
I0028
ANTENNA ASSY
I0026
2YD FLASH LED ASSY
I0013
TYPE LABEL
I0011
DC-JACK
I0023
BCOVER
I0025
USB DOOR
I0015
