Service Manual N73-1 RM-133 / N73-5 RM-133
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (36)

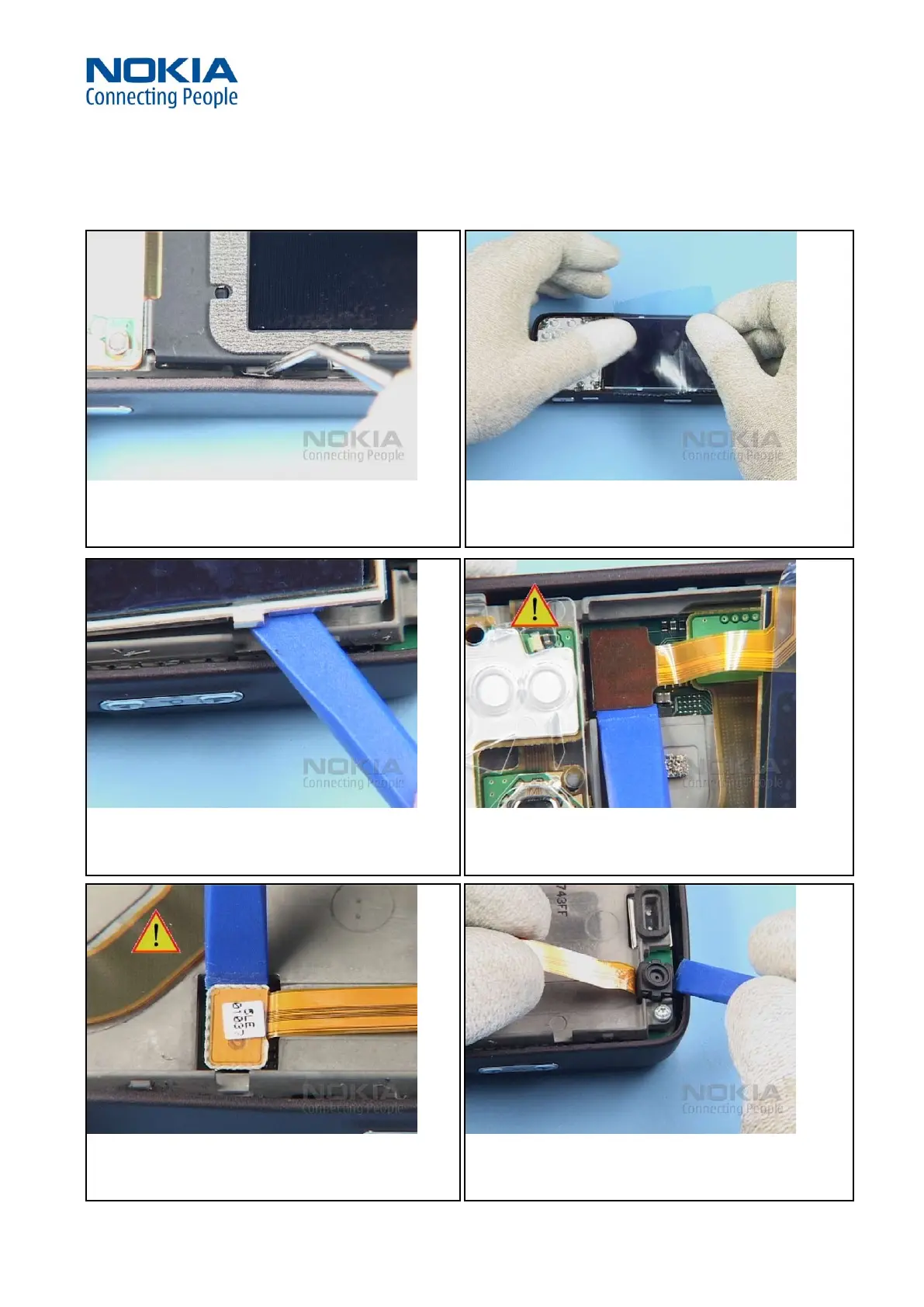

13. Carefully unlock and remove the DISPLAY SHIELD by using
the dental tool.
14. Cover the DISPLAY with a protective lm.
15. Gently lift out the DISPLAY with the SS-93 from the UI
FRAME…
16. …and disconnect it from the ENGINE MODULE.
17. Open the FRONT CAMERA connector.
18. Remove the FRONT CAMERA from the UI-FRAME.
