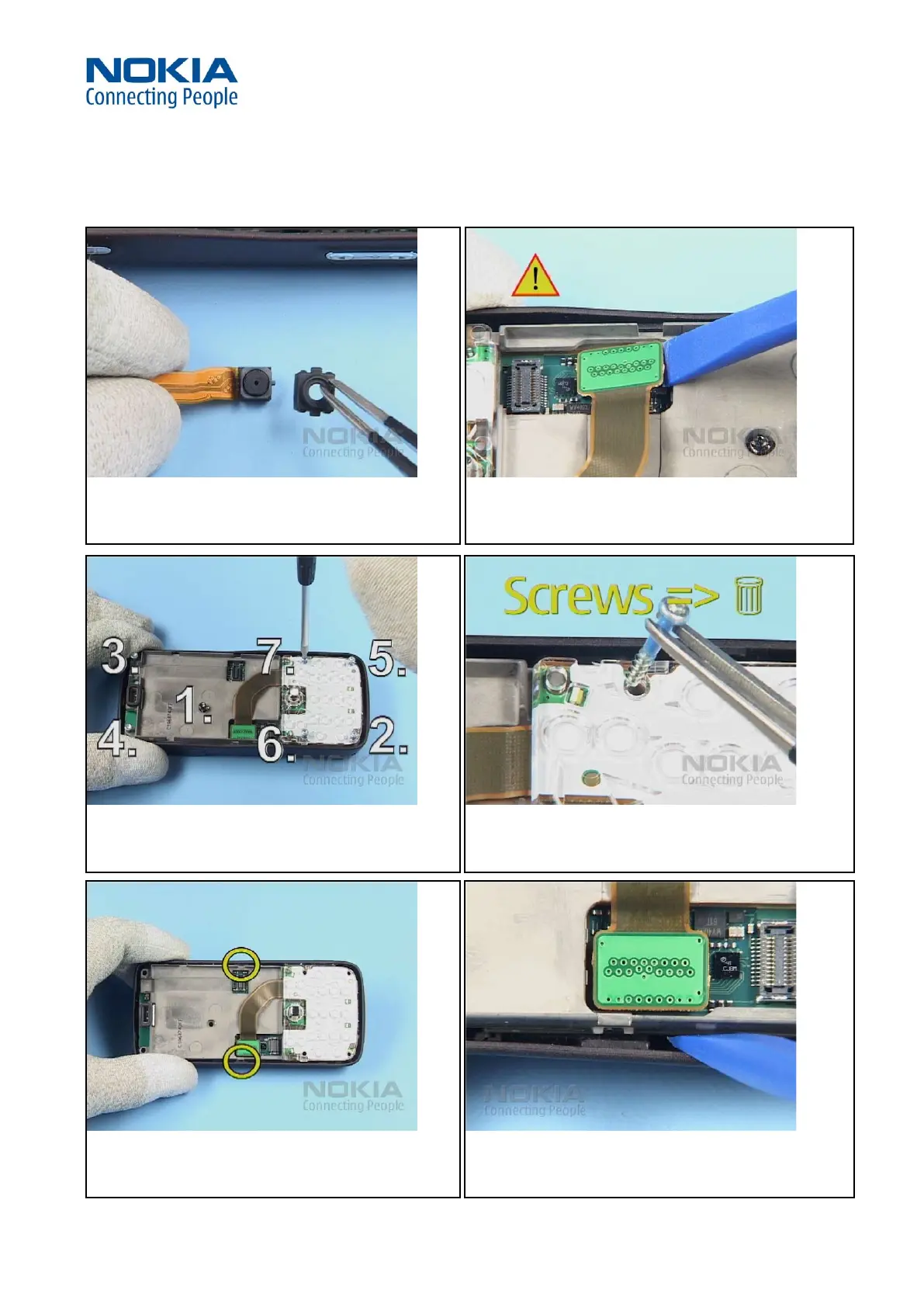

19. The CAMERA BOOT can now be separated from the FRONT
CAMERA.
20. Carefully open the UI MODULE connector taking special care
to the surrounding components.
21. Undo the screws in the order shown.
22. Remove the screws and discard them.
23. The UI FRAME is attached with two snaps to the B-COVER.
24. Unlock the UI FRAME with the SS-93.
