Service Manual N73-1 RM-133 / N73-5 RM-133
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page (36)

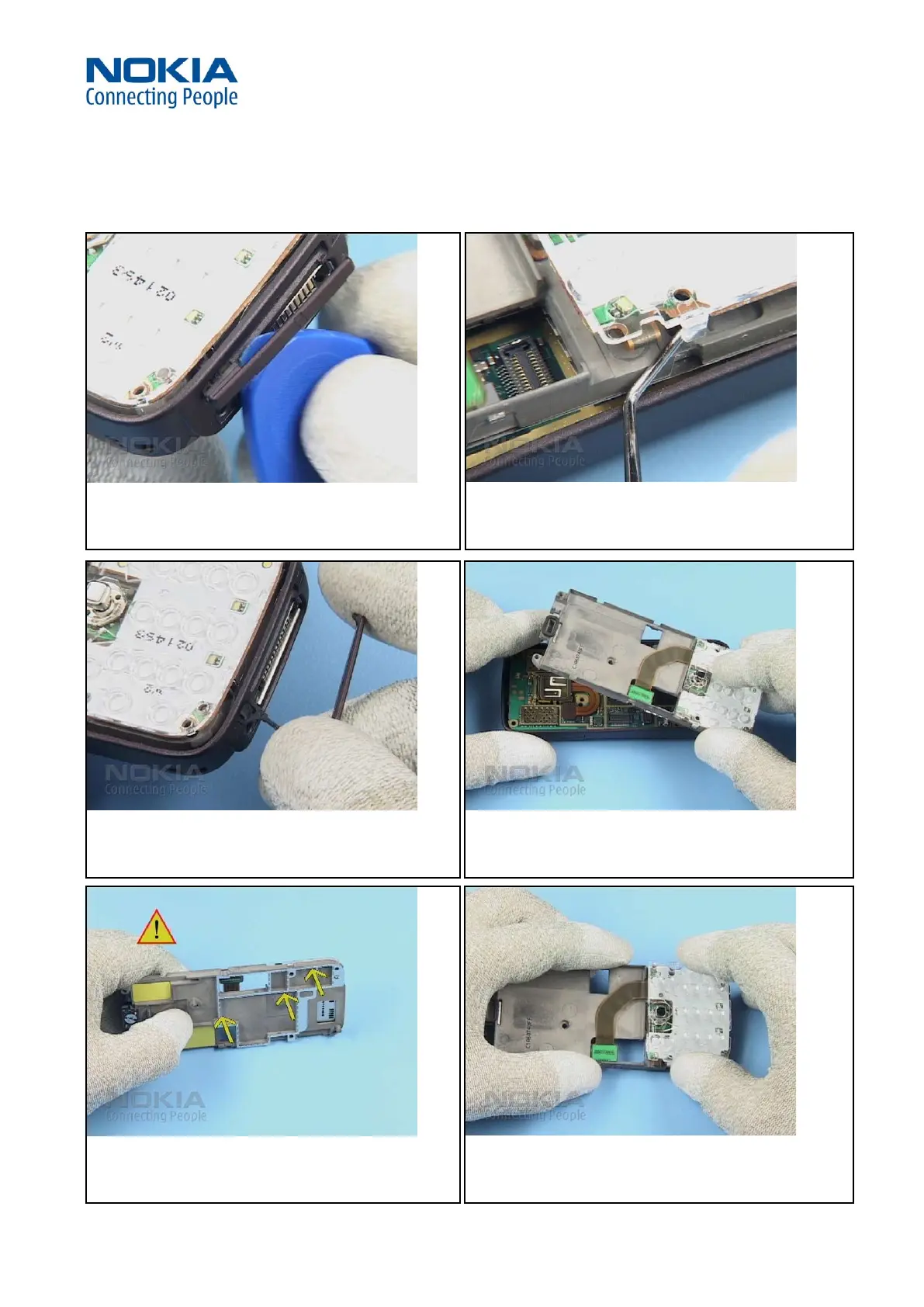

25. Open the SD DOOR but do not remove it yet.
26. Lift the UI FRAME a bit and unsnap the LIGHT GUIDE.
27. Now remove the SD DOOR.
28. Remove the UI FRAME with the UI MODULE from the B-COVER.
29. Take special care to the BASEBAND GASKET.
30. Open the snap if it snapped back and remove the LIGHT
GUIDE.
