Service Manual N73-1 RM-133 / N73-5 RM-133
Copyright © 2006 NOKIA Corporation. All rights reserved.
Approved 2.0
MGR
Page
(36)

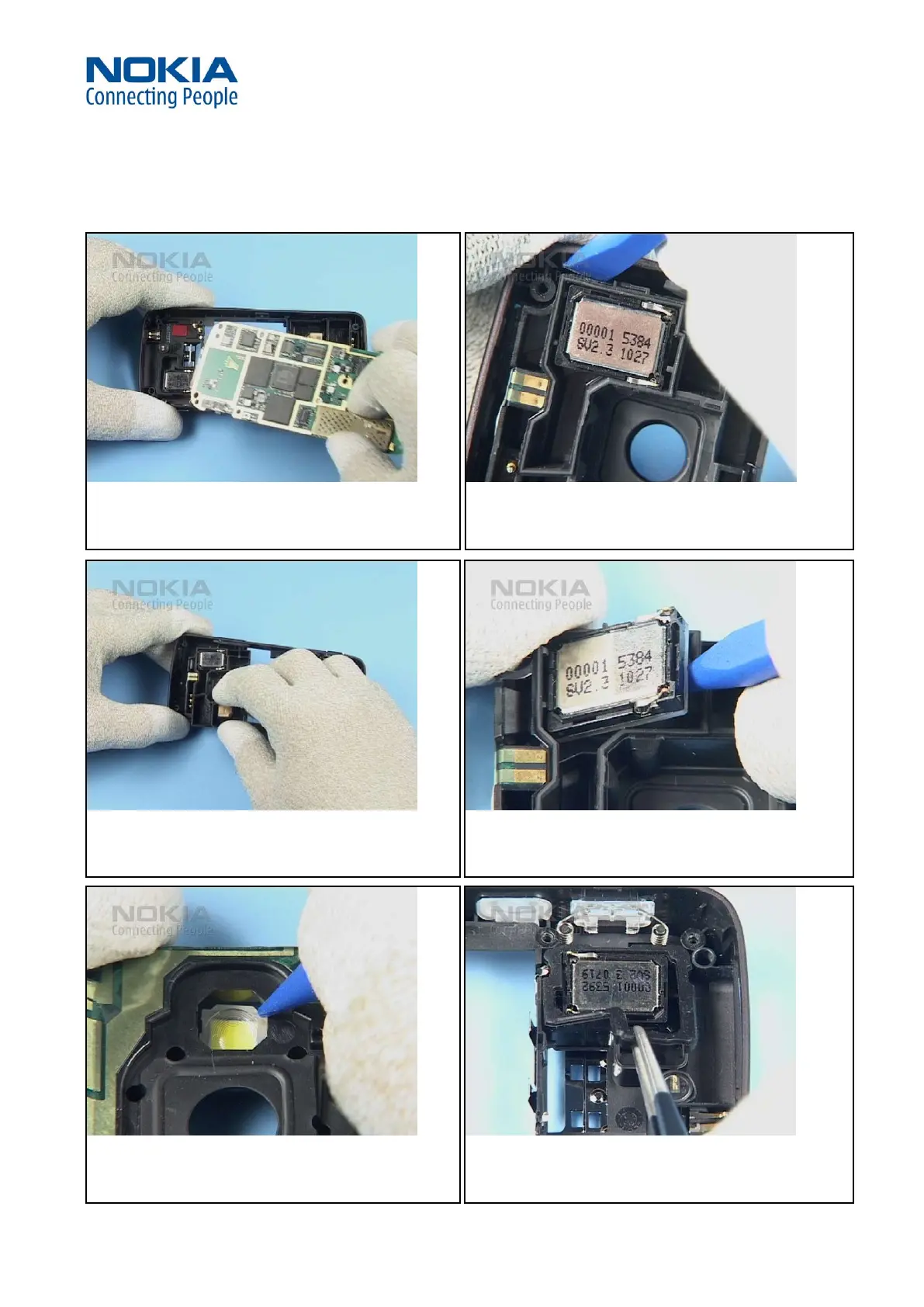

37. ... and remove it as shown taking care to all spring
contacts.
38. Unlock the ANTENNA MODULE ASSEMBLY with the SS-93 ...
39. ... and remove it from the B-COVER.
40. Lift the IHF SPEAKER from its housing and remove it easily.
41. Gently push down the FLASH LED from the ANTENNA
MOULDING.
42. Remove the GASKET IHF HOUSING.
