Nokia N86 Service Manual

Nokia N86 8MP
RM-484 / RM-485 / RM-486
Service Manual Level 1&2
13 Confidential  Copyright © 2009 NOKIA  All rights reserved Version 1.0 ISSUE 1

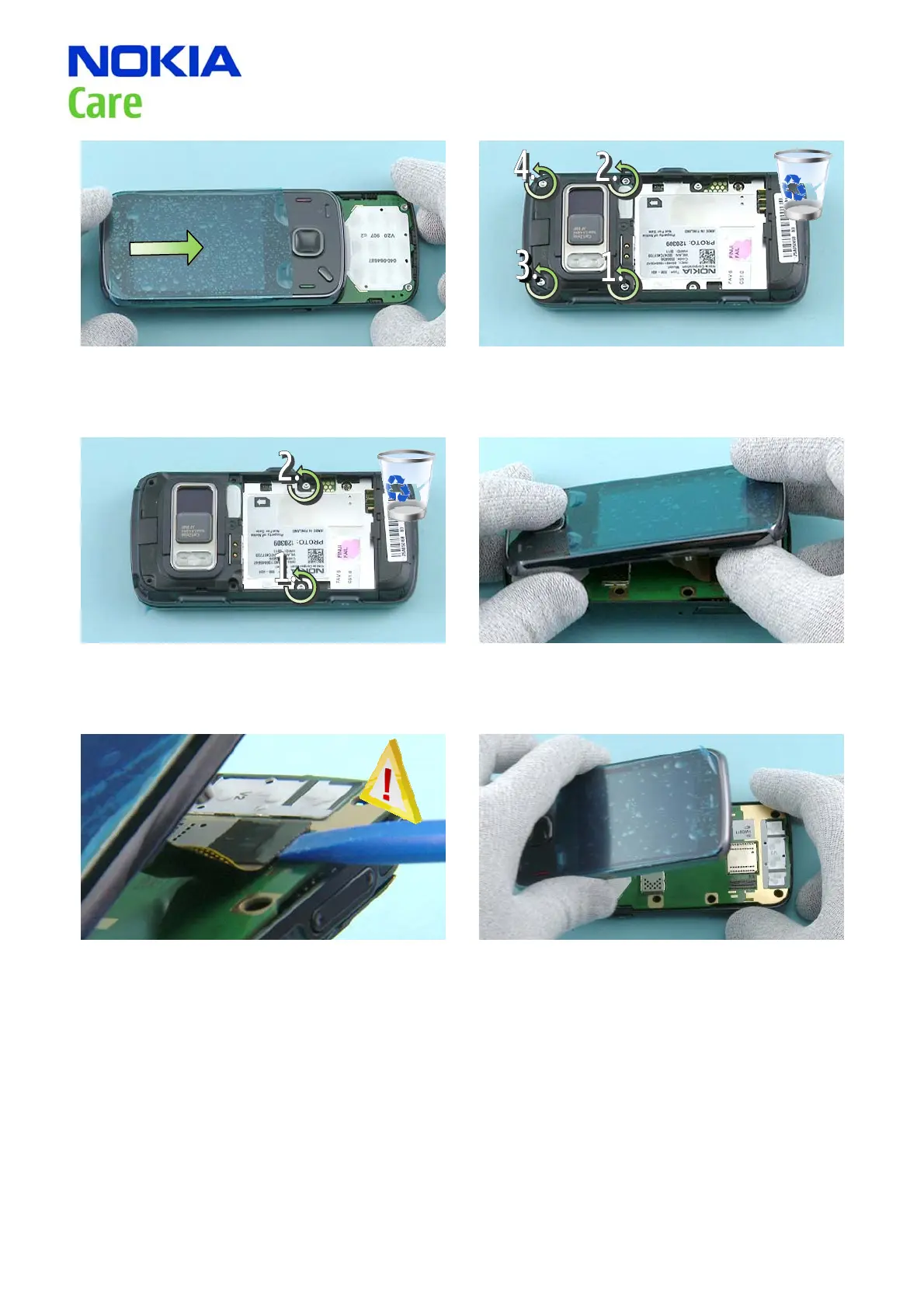

7) Close the slide. 8) Unscrew the four TORX+ size 6 screws in the
order shown. Do not use them again.
9) Then unscrew these two TORX + size 4 screws in
the order shown. Do not use them again.
10) Lift the upper block to gain access to the SLIDE
FPC assy connector.
11) Disconnect the SLIDE FPC assy from the engine
board. Be careful to not to damage the connector or
nearby components.
12) Remove the upper block.
