11. ASSEMBLY HINTS

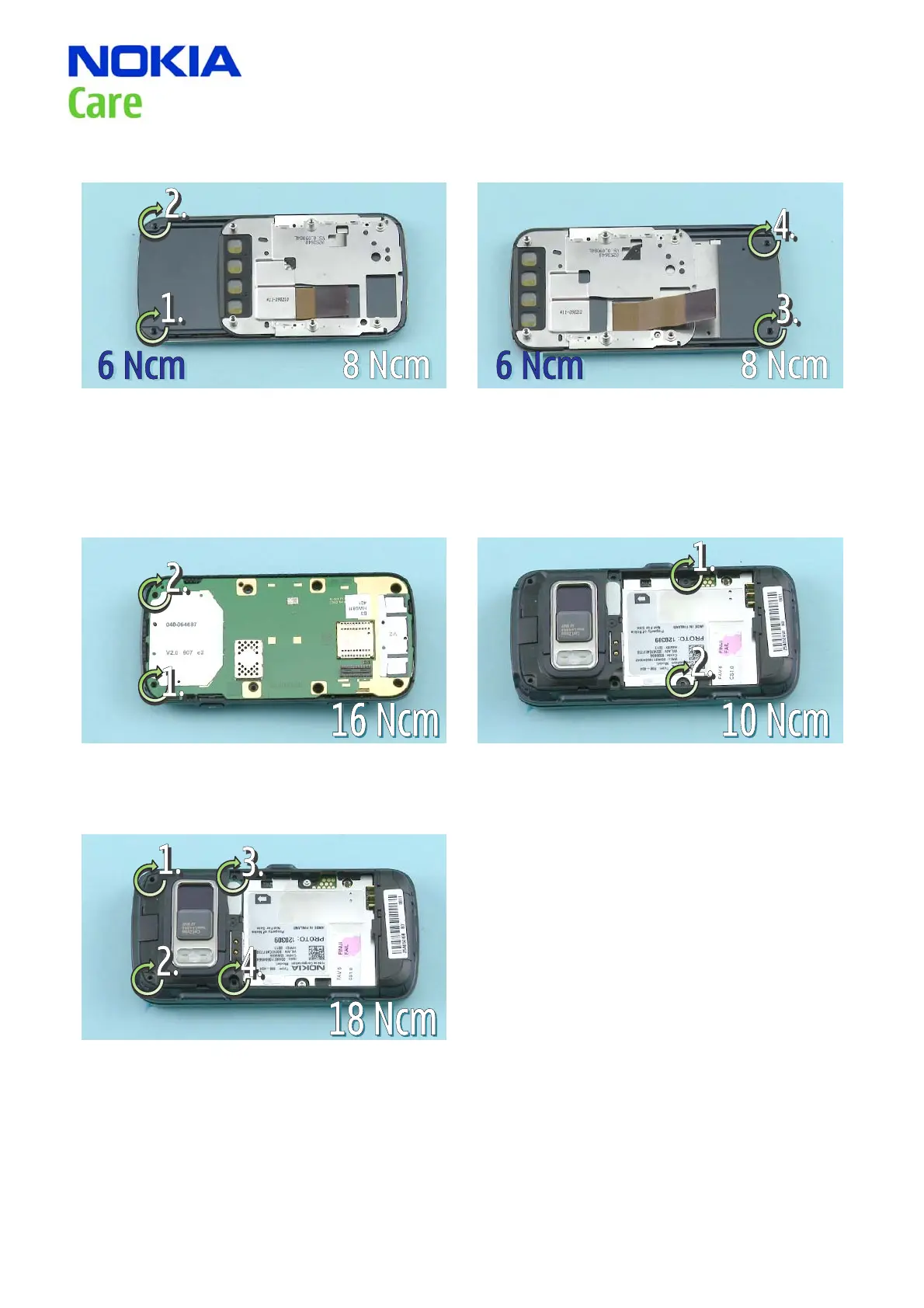

1) INDIGO VARIANT: Tighten the two Phillips size 00
screws to the torque of 6 Ncm in the order shown.
WHITE VARIANT: Tighten the two Phillips size 00
screws to the torque of 8 Ncm in the order shown.
2) Drag the slide to the opposite direction.
INDIGO VARIANT: Tighten the two Phillips size 00
screws to the torque of 6 Ncm in the order shown.
WHITE VARIANT: Tighten the two Phillips size 00
screws to the torque of 8 Ncm in the order shown.
3) Tighten the two TORX + size 6 screws to the
torque of 16 Ncm in the order shown.
4) Tighten the two TORX + size 4 screws to the
torque of 10 Ncm in the order shown.two
5) Tighten the four TORX + size 6 screws to the
torque of 18 Ncm in the order shown.
